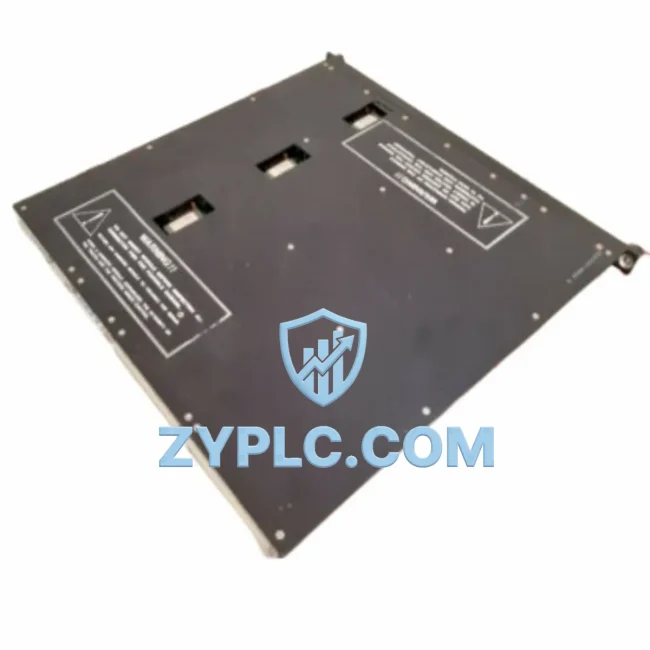

Triconex HCU3700/3703E Industrial Network Interface for Tricon Systems

Triconex HCU3700/3703E: Industrial Data Link and Smart Factory Connectivity for Tricon TMR Safety Systems

In modern industrial automation, the integrity of data flow between field devices, safety controllers, remote I/O, HMI panels, SCADA platforms, and upper-level management systems is the foundation of operational reliability. The Triconex HCU3700/3703E isolated input module is engineered to serve as a critical node in this data chain — delivering clean, electrically isolated signal acquisition from field instrumentation directly into the Tricon Triple Modular Redundant (TMR) safety architecture. Whether deployed in oil and gas processing, chemical plants, power generation facilities, or advanced manufacturing lines, this module ensures that every input signal is captured, validated, and transmitted with the precision that SIL 3 safety-critical environments demand.

The HCU3700/3703E is not simply an input card — it is a structured interface between the physical process layer and the digital control layer. Its isolated channel design eliminates ground loop interference and cross-channel noise, which are common sources of false trips and diagnostic failures in high-density I/O environments. By maintaining electrical separation between field wiring and the Tricon backplane, the module protects the integrity of the entire control network, from the field junction box through to the Triconex TRICON controller and onward to the SCADA historian and DCS integration layer.

Network Communication Table

Connected Automation Data Flow

The HCU3700/3703E operates at the I/O acquisition layer of the Tricon TMR architecture, where its role is to receive discrete or analog signals from field transmitters, pressure sensors, temperature elements, and position switches, then pass validated data upward through the Tricon backplane to the Triconex TRICON controller for real-time safety logic execution. This signal path is the first link in a chain that ultimately connects to plant-wide SCADA systems and enterprise data platforms.

Within the same chassis, the HCU3700/3703E works alongside the Triconex 3625N Power Supply Module, which provides the stable, redundant DC power required to maintain uninterrupted I/O scanning. The power supply’s dual-feed design ensures that even during a single power path failure, the input module continues to acquire field data without interruption — a critical requirement in emergency shutdown (ESD) and fire and gas (F&G) applications.

For communication between the Tricon safety controller and the plant DCS or SCADA network, the Triconex TCM 4351B Tricon Communication Module serves as the protocol bridge, translating the internal TMR data bus into Modbus TCP or OPC-DA streams that can be consumed by Wonderware InTouch HMI or Emerson DeltaV DCS historian nodes. This integration allows operators to monitor the real-time status of every HCU3700/3703E input channel from a centralized control room display, enabling rapid fault identification and process response.

In larger plant architectures, the Tricon main chassis may be extended using the Triconex Enhanced Intelligent Communication Module (EICM) or connected to remote I/O racks via the Triconex RXM Remote Expansion Module, allowing the HCU3700/3703E’s input data to be aggregated across multiple physical locations into a single logical safety controller. This distributed I/O topology is common in pipeline monitoring, offshore platform control, and large-scale refinery automation where field devices are spread across hundreds of meters.

At the network layer, industrial Ethernet switches — such as the Hirschmann RS20 managed switch or Moxa EDS-308 series — provide the backbone connectivity between the Tricon communication modules, the SCADA server, and the engineering workstation running TriStation 1131 programming software. The deterministic, low-latency nature of the Tricon backplane bus, combined with a properly segmented industrial Ethernet network, ensures that input data from the HCU3700/3703E reaches the SCADA historian with minimal delay — typically within one scan cycle of the safety controller.

For sites integrating legacy field devices using 4–20 mA analog loops or HART protocol, the HCU3700/3703E’s isolated input channels provide the necessary electrical separation to prevent signal corruption, while a Pepperl+Fuchs HART multiplexer or Emerson 475 Field Communicator can be used in parallel for device-level diagnostics without interrupting the safety input signal path.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, isolated control islands, and legacy field devices that were never designed for network connectivity. The HCU3700/3703E addresses this challenge at the source — by providing clean, isolated input acquisition that can be reliably integrated into both modern digital architectures and legacy analog control systems.

In plants where safety systems, process control systems, and asset management platforms operate in silos, the Tricon TMR architecture — with the HCU3700/3703E as its field interface — acts as a unifying data source. Through the Triconex communication modules and standard industrial protocols such as Modbus TCP and OPC-UA, input data from the HCU3700/3703E can be made available to SCADA historians, MES platforms, and cloud-based analytics engines without compromising the integrity of the safety function.

Remote monitoring and diagnostics are increasingly important in facilities where on-site engineering resources are limited. The HCU3700/3703E’s continuous self-test capability, combined with the Tricon controller’s diagnostic reporting, allows remote engineers to identify channel faults, wiring issues, or sensor degradation through the SCADA interface — reducing the need for physical site visits and accelerating mean time to repair (MTTR). This capability is particularly valuable in offshore, mining, and remote pipeline applications where travel costs and response times are significant operational factors.

Production line transparency — the ability to see real-time process data from every field device — is a core requirement of smart factory and Industry 4.0 initiatives. By ensuring that every input signal is accurately captured and transmitted without data loss or corruption, the HCU3700/3703E contributes directly to the plant’s overall data quality, which is the foundation of reliable predictive maintenance, process optimization, and regulatory compliance reporting.

System expansion is also simplified by the modular nature of the Tricon architecture. As production capacity grows or new process units are added, additional HCU3700/3703E modules can be installed in expansion chassis without modifying the existing safety logic or network configuration — providing a scalable path for plant growth that protects the original capital investment.

Industrial Connectivity FAQ

Q1: Does the HCU3700/3703E support direct Modbus TCP or Ethernet/IP communication?
The HCU3700/3703E communicates via the Tricon TMR backplane bus and does not have a direct Ethernet port. Network connectivity to Modbus TCP, OPC-DA, or OPC-UA is achieved through Triconex communication modules such as the TCM 4351B or ACM 4511, which translate the internal backplane data into standard industrial protocols accessible by SCADA, DCS, and HMI systems.

Q2: Is the HCU3700/3703E compatible with both the Tricon main chassis and expansion chassis?
Yes. The HCU3700/3703E is designed for installation in standard Triconex Tricon chassis slots, including both the main chassis and remote expansion chassis configurations. This allows the module to be deployed in distributed I/O architectures where field devices are located at a distance from the main controller cabinet, with data transmitted back to the Tricon controller via the expansion bus or fiber-optic remote I/O link.

Q3: What does the 12-Month Warranty cover for the HCU3700/3703E?
The 12-Month Warranty covers full functional performance of the HCU3700/3703E module, including channel isolation integrity, backplane communication, and self-diagnostic operation. Every unit undergoes pre-shipment functional testing to verify compliance with Triconex specifications before dispatch. In the event of a confirmed hardware defect within the warranty period, replacement or repair is provided. For warranty claims or technical support, contact [email protected] or call +86 19859288691.

Q4: How is the HCU3700/3703E tested before shipment?
Each HCU3700/3703E module is subjected to a comprehensive pre-shipment test protocol that includes power-on self-test verification, channel isolation measurement, backplane communication handshake confirmation, and diagnostic status validation. This ensures that every module delivered to site is fully operational and ready for installation into the Tricon chassis without additional bench testing — reducing commissioning time and minimizing project schedule risk.
