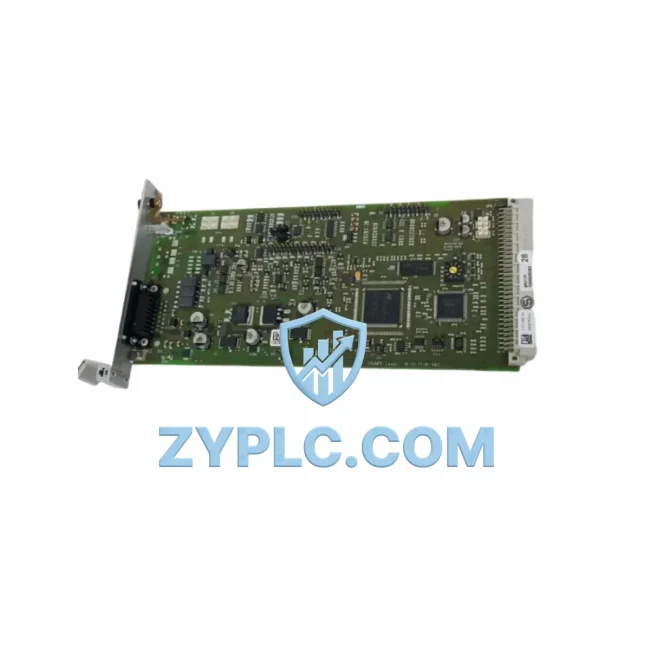

TRUMPF 1309047 EtherCAT Interface for TruLaser CNC

TRUMPF 1309047 EtherCAT Interface for TruLaser CNC: Industrial Data Link and Smart Factory Connectivity

In modern laser manufacturing environments, the integrity of the data link between the CNC controller, motion axes, and peripheral systems is as critical as the laser source itself. The TRUMPF 1309047 (18-21-71-00) is a dedicated EtherCAT communication interface board engineered for TruLaser series CNC laser cutting systems. It serves as the real-time backbone connecting the machine’s internal control architecture to field devices, drive systems, and supervisory networks — enabling the kind of deterministic, low-latency data exchange that precision laser processing demands.

This interface board is not a generic communication card. It is purpose-built for TRUMPF’s TruLaser platform, where cycle times are measured in microseconds and any communication fault translates directly into cut quality degradation, axis synchronization errors, or unplanned downtime. By maintaining a stable EtherCAT data loop, the 1309047 ensures that every command from the CNC core reaches the servo drives, I/O nodes, and sensor arrays without jitter or packet loss.

Network Communication Table

Connected Automation Data Flow

The TRUMPF 1309047 sits at the intersection of the machine’s CNC core and its distributed field network. In a typical TruLaser installation, the CNC controller — often running on a TRUMPF industrial PC platform — issues real-time motion commands that must be delivered to the laser cutting head’s servo drives with zero tolerance for delay. The 1309047 manages this EtherCAT master-to-slave communication loop, coordinating data exchange across all connected nodes in the machine’s internal network.

On the drive side, TRUMPF servo amplifiers and axis controllers receive position, velocity, and torque commands through the EtherCAT bus managed by this interface board. Any degradation in the communication link — whether from a failing interface card, corrupted firmware, or physical connector wear — manifests as axis following errors, contour deviation, or emergency stops. Replacing a faulty 1309047 restores the deterministic data path that keeps the cutting head synchronized with the programmed trajectory.

Beyond the servo loop, the 1309047 also interfaces with the machine’s distributed I/O architecture. Remote I/O terminals — including digital input modules for sensor signals such as nozzle detection, gas pressure switches, and safety interlocks — connect to the EtherCAT network and report their states back to the CNC in real time. This allows the TruLaser’s control logic to respond to field conditions within a single bus cycle, enabling features like adaptive pierce detection and automatic focus adjustment.

At the supervisory level, data collected through the EtherCAT network can be aggregated by an edge gateway or industrial PC and forwarded to SCADA systems or MES platforms via OPC-UA or PROFINET bridges. In facilities running mixed-protocol environments — where Siemens SIMATIC S7 PLCs manage material handling conveyors alongside TRUMPF laser cells — protocol conversion gateways translate EtherCAT process data into formats compatible with the plant-wide control network. Industrial managed switches with EtherCAT-aware traffic prioritization ensure that the laser cell’s real-time data is never starved by background network traffic from HMI panels or barcode scanners.

For facilities integrating TruLaser machines into a broader smart factory architecture, the 1309047’s role extends to enabling remote diagnostics. When connected to a TRUMPF ServiceLine remote access module or a third-party industrial VPN router, the EtherCAT network state — including node health, cycle time statistics, and error counters — can be monitored from off-site. This capability is particularly valuable for multi-site manufacturers who need centralized visibility into laser cell availability without dispatching field engineers for every alarm event.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in laser manufacturing facilities is data isolation — the condition where the CNC machine operates as a closed island, unable to share process data with the surrounding plant systems. The TRUMPF 1309047 is a key enabler for breaking down this isolation, because a healthy EtherCAT interface is the prerequisite for any higher-level connectivity initiative.

When the interface board fails or degrades, the first symptom is often intermittent communication faults that appear in the CNC’s diagnostic log as EtherCAT topology errors or slave lost events. These faults are frequently misdiagnosed as cable issues or drive failures, leading to unnecessary component replacements and extended troubleshooting cycles. A direct replacement of the 1309047 with a tested, verified unit eliminates the interface board as a variable and restores the stable communication baseline needed for further diagnostics.

With a functional interface board in place, facilities can pursue production line transparency initiatives. Real-time cycle data — including pierce time, cutting speed, and assist gas consumption per part — can be extracted from the EtherCAT network and fed into OEE dashboards. This data, combined with inputs from power monitoring modules measuring the laser source’s energy draw, gives production managers a complete picture of machine efficiency and energy cost per part.

For facilities planning system expansion — adding a second TruLaser cell, integrating an automated loading system, or connecting to a new MES — the EtherCAT network’s scalability depends on the integrity of each node’s communication hardware. The 1309047 supports this expansion by maintaining the deterministic performance of the existing cell’s network, ensuring that adding new nodes does not degrade the timing of the established servo and I/O loops.

All units supplied by ZYPLC are shipped only after passing functional communication tests. Each 1309047 is verified for EtherCAT link establishment, node enumeration, and cyclic data exchange before dispatch. Stock is maintained for immediate shipment, supporting both emergency replacement scenarios and planned maintenance schedules. A 12-month warranty covers all supplied units against communication failures and hardware defects.

Industrial Connectivity FAQ

Q: What communication latency can be expected from the TRUMPF 1309047 in a TruLaser EtherCAT network?
A: The 1309047 supports EtherCAT’s standard sub-millisecond cycle times, typically operating at 250 µs to 1 ms bus cycles depending on the number of connected slaves and the CNC’s configured scan rate. This deterministic performance is essential for maintaining servo axis synchronization during high-speed laser cutting.

Q: Is the 1309047 compatible with all TruLaser models, and can it be used as a direct drop-in replacement?
A: The 1309047 (18-21-71-00) is designed for TRUMPF TruLaser series CNC laser cutting systems. Compatibility depends on the specific machine generation and software version. ZYPLC recommends confirming the part number against the machine’s spare parts documentation before ordering. Our technical team can assist with cross-referencing if the original board’s markings are unclear.

Q: What testing is performed on each unit before shipment?
A: Every TRUMPF 1309047 supplied by ZYPLC undergoes functional communication testing, including EtherCAT link initialization, slave discovery, and cyclic data exchange verification. Units that fail any stage of testing are not shipped. A test report is available upon request for quality-critical applications.

Q: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: The 12-month warranty covers hardware failures and communication defects under normal operating conditions. It does not cover damage from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact ZYPLC with the order reference and a description of the fault. Replacement units are dispatched after fault verification, minimizing machine downtime.
