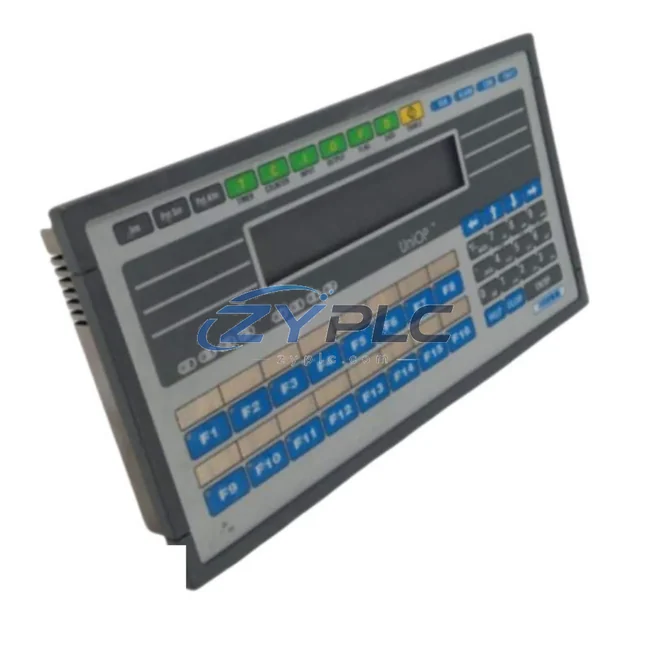

UNIOP EK-04 6ZA983-7 HMI Operator Panel for EK Series

UniOP EK-04 6ZA983-7: Industrial Data Link and Smart Factory Connectivity

The UniOP EK-04 6ZA983-7 is a high-performance HMI operator panel from the EK Series, engineered to serve as a critical industrial network interface node within modern smart factory environments. Designed to bridge field-level devices and supervisory control systems, this unit delivers reliable, real-time data exchange across complex automation architectures — from signal acquisition at the sensor layer all the way through to SCADA dashboards and MES platforms.

In today’s connected manufacturing landscape, the ability to unify disparate communication protocols and device types is no longer optional — it is foundational. The UniOP EK-04 6ZA983-7 addresses this need directly, acting as both a visualization terminal and a protocol-aware communication gateway. Whether deployed alongside Siemens S7-300/S7-400 PLCs, Mitsubishi MELSEC Q-Series controllers, or Rockwell Automation ControlLogix systems, this panel integrates seamlessly into existing control architectures without requiring costly infrastructure overhauls.

Compatibility & Integration Notes

Connected Automation Data Flow

The UniOP EK-04 6ZA983-7 sits at the intersection of operational technology (OT) and information technology (IT), enabling a continuous, low-latency data flow across the full automation stack. At the field level, it collects real-time signals from proximity sensors, temperature transmitters, and pressure transducers connected via RS-485 Modbus RTU networks. These raw signals are processed and displayed locally on the EK Series panel, while simultaneously being forwarded upstream to SCADA systems via Ethernet TCP/IP.

In a typical smart factory deployment, the EK-04 6ZA983-7 operates in close coordination with a Siemens S7-300 PLC over an MPI or PROFIBUS DP link, receiving process variables such as conveyor speed, motor torque, and valve positions. The panel’s built-in protocol conversion engine translates these values into Modbus TCP frames, which are then consumed by a Wonderware InTouch SCADA server for trend logging and alarm management.

For distributed I/O architectures, the EK-04 6ZA983-7 interfaces with Wago 750-Series remote I/O modules and Phoenix Contact Inline I/O nodes over PROFIBUS DP, aggregating digital and analog inputs from across the production floor into a single, unified data stream. This eliminates the need for dedicated communication processors at each I/O station, reducing both hardware costs and network complexity.

Drive integration is equally seamless. The panel communicates with Danfoss VLT FC-Series variable frequency drives and ABB ACS880 inverters via CANopen or DeviceNet, enabling operators to monitor motor speed, current draw, and fault codes directly from the HMI screen. When a drive fault is detected, the EK-04 6ZA983-7 triggers an alarm notification that propagates through the SCADA layer to maintenance personnel via email or SMS — closing the loop on remote diagnostics without requiring physical intervention.

Edge connectivity is supported through the panel’s Ethernet port, which can be linked to an industrial edge gateway running IIoT middleware such as Kepware KEPServerEX or Ignition Edge. This enables cloud-based analytics, predictive maintenance algorithms, and OEE dashboards to consume live production data from the EK Series panel in near real-time. The UniOP EXOR eSMART Series and UniOP eTOP Series panels share the same communication driver library, making it straightforward to expand visualization capacity across multiple production lines without rewriting tag databases.

Power supply stability is maintained through a Phoenix Contact QUINT 24VDC industrial power supply, ensuring the EK-04 6ZA983-7 operates within its rated voltage range even during grid fluctuations — a critical requirement for continuous process industries such as food and beverage, pharmaceuticals, and chemical manufacturing.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where PLCs, drives, sensors, and SCADA systems each speak a different communication language, creating data silos that prevent holistic visibility into production performance. The UniOP EK-04 6ZA983-7 directly addresses this problem through its multi-protocol gateway architecture.

By acting as a protocol translator between Modbus RTU field devices and Ethernet-based supervisory systems, the EK-04 6ZA983-7 eliminates the need for separate protocol converters or OPC servers in many mid-scale applications. A single panel can simultaneously poll multiple Modbus slave devices, aggregate their data, and republish it as Modbus TCP to upstream systems — effectively collapsing three network layers into one.

Remote monitoring is another area where the EK-04 6ZA983-7 delivers measurable value. With its Ethernet connectivity and support for VNC remote access, maintenance engineers can view live HMI screens, acknowledge alarms, and adjust setpoints from any location on the plant network — or even from off-site via a secure VPN connection. This capability is particularly valuable for multi-site operations where on-site engineering resources are limited.

Production line transparency is achieved through the panel’s data logging functionality, which records process variables at configurable intervals and stores them in internal memory or on a USB drive. These logs can be exported to CSV format for analysis in Excel or imported directly into MES platforms, providing the historical data foundation needed for continuous improvement initiatives such as Six Sigma and Lean Manufacturing.

System scalability is built into the EK Series architecture. As production capacity grows, additional UniOP EK Series panels can be added to the network without modifying the existing communication infrastructure. Each panel operates as an independent network node, and the SCADA system can discover and integrate new nodes dynamically — supporting phased factory expansion without production downtime.

Every UniOP EK-04 6ZA983-7 unit shipped by ZYPLC undergoes a comprehensive pre-shipment functional test, including communication port verification, display calibration, and protocol handshake testing. Stock is maintained in our warehouse to support urgent project timelines, with RFQ-confirmed dispatch timing available for RFQ-confirmed sourcing options. All units are covered by a against manufacturing defects.

Industrial Connectivity FAQ

Q1: What is the communication latency of the UniOP EK-04 6ZA983-7 when polling Modbus RTU devices?
A: Under typical conditions with a 19200 baud RS-485 network and up to 32 slave devices, the EK-04 6ZA983-7 achieves a full poll cycle in under 500ms. For time-critical applications, the polling interval can be optimized by prioritizing high-frequency tags and reducing the scan group update rate for static parameters.

Q2: Is the EK-04 6ZA983-7 compatible with Siemens S7-1200 and S7-1500 PLCs via Ethernet?
A: Yes. The EK Series supports S7 Ethernet communication using the PUT/GET protocol, enabling direct tag-level data exchange with S7-1200 and S7-1500 controllers without requiring additional OPC middleware. Ensure that the PLC’s access protection settings permit GET/PUT operations from HMI devices.

Q3: Can the network be expanded by adding more UniOP panels without disrupting existing operations?
A: Yes. The EK Series is designed for non-disruptive network expansion. New panels can be added to the Ethernet segment and configured with unique IP addresses and tag databases independently of existing nodes. The SCADA system can be updated to include the new panel’s data sources during a scheduled maintenance window, with zero impact on running processes.

Q4: What does the cover, and how is it handled for international customers?
A: The covers all manufacturing defects, including communication port failures, display malfunctions, and power supply faults. For international customers, ZYPLC coordinates warranty returns via express courier with pre-paid return labels. Replacement units are dispatched from stock upon receipt and inspection of the defective unit, minimizing downtime for your production facility.
