Vibro-Meter IQS450 S3960 204-450-000-002 Proximity Module for VM600

Vibro-Meter IQS450 S3960 204-450-000-002: Proximity Module for VM600

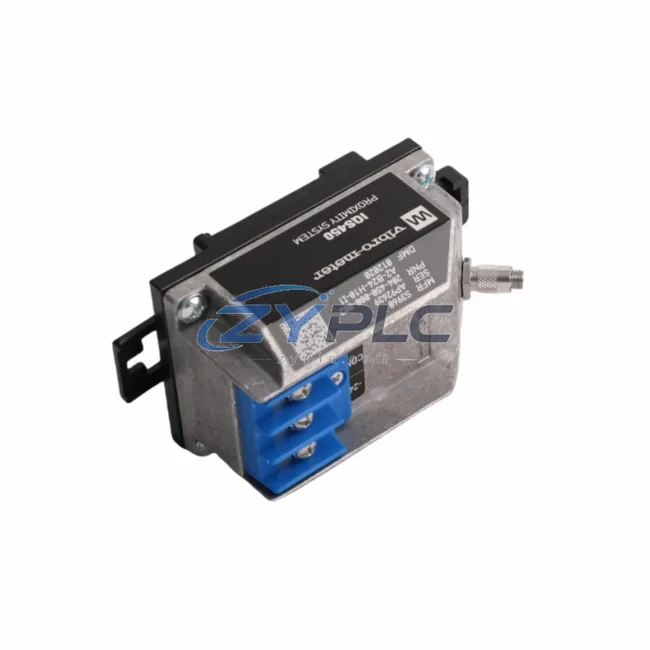

The Vibro-Meter IQS450 S3960 204-450-000-002 is a high-precision eddy-current proximity measurement module engineered for seamless integration within the VM600 machinery protection and condition monitoring platform. Designed to operate as a core sensing element within multi-layer industrial automation architectures, this module delivers continuous, real-time shaft displacement and radial vibration data to the VM600 rack-based system — enabling plant engineers to maintain full visibility across rotating machinery assets including turbines, compressors, pumps, and generators.

Unlike standalone vibration sensors, the IQS450 S3960 is purpose-built for system integration within a coordinated control hierarchy. Its signal output is optimized for direct interfacing with VM600 I/O cards and signal conditioning modules, ensuring minimal latency between field measurement and control-layer decision-making. This makes it an indispensable component in any system architecture where machinery protection, predictive maintenance, and process continuity must operate in concert.

Backed by a warranty and condition confirmed before quote and supported by ZYPLC’s global sourcing network, the IQS450 S3960 204-450-000-002 is available for shipment arranged after confirmation to support both new system commissioning and critical spare-parts inventory programs.

Product Specification Table

System Compatibility Notes

The IQS450 S3960 204-450-000-002 achieves its full operational value when deployed as part of a complete VM600 rack-based architecture. In a typical machinery protection system, the IQS450 proximity module works in close coordination with the VM600 MPC4 machinery protection card, which processes the raw displacement signal and applies configurable alarm and trip thresholds. The MPC4 card communicates upstream to the VM600 RPS600/C rack power supply, which provides stable, conditioned power across all rack-mounted modules — a critical requirement for measurement accuracy in high-noise industrial environments.

At the I/O layer, the IQS450 S3960 interfaces with VM600 IOC4T input/output conditioning cards, which handle signal buffering, filtering, and channel isolation. These cards feed processed data to the VM600 AMC8 advanced monitoring card for multi-channel vibration analysis, enabling simultaneous monitoring of multiple shaft positions across a single machine train. For systems requiring redundancy, the VM600 RLC16 relay card provides hardwired trip output capability, ensuring that machinery protection actions are executed independently of software or network availability.

At the network and communication layer, the VM600 CMC16 communication module aggregates data from all rack-mounted cards and transmits structured condition monitoring data to plant-level SCADA or DCS platforms via Modbus TCP, PROFIBUS DP, or OPC-UA. This enables the IQS450’s proximity measurements to be consumed by higher-level control systems — such as a Siemens S7-400 or ABB System 800xA DCS — for integrated process control and alarm management.

For human-machine interface requirements, the VM600 system integrates with Vibro-Meter’s VibroSight condition monitoring software, providing engineers with real-time trend visualization, historical data analysis, and alarm event logging. In larger installations, the IQS450 proximity data is often displayed alongside temperature, speed, and process variables on a unified HMI panel, giving operators a complete picture of machine health within a single interface.

Finally, at the field wiring level, the IQS450 S3960 is typically paired with Vibro-Meter TQ series extension cables and PR9268 series proximitor drivers, which condition the eddy-current signal before it enters the VM600 rack. Proper cable routing, shielding, and grounding at this layer are essential to maintaining signal integrity across the full measurement chain — from the probe tip to the control room display.

Industrial Application Notes

The IQS450 S3960 204-450-000-002 is deployed across a wide range of heavy industrial sectors where continuous shaft monitoring is a regulatory or operational requirement.

In power generation, the module is installed on steam and gas turbine shafts to monitor radial vibration and axial displacement in real time. Any deviation beyond API 670 alarm thresholds triggers an immediate alert to the plant DCS, allowing operators to take corrective action before a forced outage occurs. In petrochemical and refinery applications, the IQS450 is used on centrifugal compressors and process pumps, where shaft displacement monitoring is critical for detecting rotor instability, bearing wear, and seal degradation.

In water treatment and pumping stations, the module supports predictive maintenance programs by providing continuous vibration baselines for large vertical pumps and motor-driven equipment. In mining and mineral processing, it is integrated into crusher and mill drive monitoring systems, where high shock loads and variable speed operation demand robust, non-contact measurement technology. In metallurgical and steel plant applications, the IQS450 is used on rolling mill drives and continuous casting equipment, where thermal expansion and shaft runout must be tracked continuously to maintain product quality and equipment reliability.

Across all these applications, the IQS450 S3960’s role within the VM600 architecture ensures that proximity data is not treated as an isolated measurement, but as an integrated input to a plant-wide machinery protection and condition monitoring strategy — supporting both immediate protection and long-term asset management objectives.

Product Compatibility FAQ

Q1: Is the IQS450 S3960 204-450-000-002 compatible with existing VM600 rack installations, and does it require any firmware updates?
The IQS450 S3960 is designed for direct plug-in compatibility with the VM600 rack platform. It interfaces with standard VM600 backplane connectors and is recognized by the VM600 system without requiring firmware modifications in most configurations. For installations running older VM600 firmware versions, ZYPLC recommends verifying the rack firmware revision against Vibro-Meter’s compatibility matrix prior to installation. Our technical team can assist with pre-installation compatibility checks as part of the warranty and condition confirmed before quote support service.

Q2: Can the IQS450 S3960 be used in a redundant VM600 architecture, and how does it contribute to system availability?
Yes. In redundant VM600 configurations, dual IQS450 proximity modules can be installed on the same measurement point, with each module feeding an independent VM600 MPC4 protection card. The VM600 system’s built-in redundancy management logic ensures that a single module failure does not result in a loss of protection coverage. This architecture is particularly important in API 670-compliant installations where continuous protection availability is a contractual requirement. The warranty and condition confirmed before quote covers both primary and redundant module installations.

Q3: What is the recommended maintenance and calibration schedule for the IQS450 S3960 in long-term industrial service, and what support does ZYPLC provide?
Vibro-Meter recommends periodic verification of the IQS450’s static sensitivity and gap voltage output as part of a planned maintenance program, typically aligned with major equipment overhaul intervals. ZYPLC supports long-term maintenance programs by maintaining stock of IQS450 S3960 modules for rapid replacement, reducing mean time to repair (MTTR) in the event of a module failure. All modules supplied by ZYPLC include a warranty and condition confirmed before quote covering manufacturing defects and functional performance, with technical support available throughout the warranty period.
