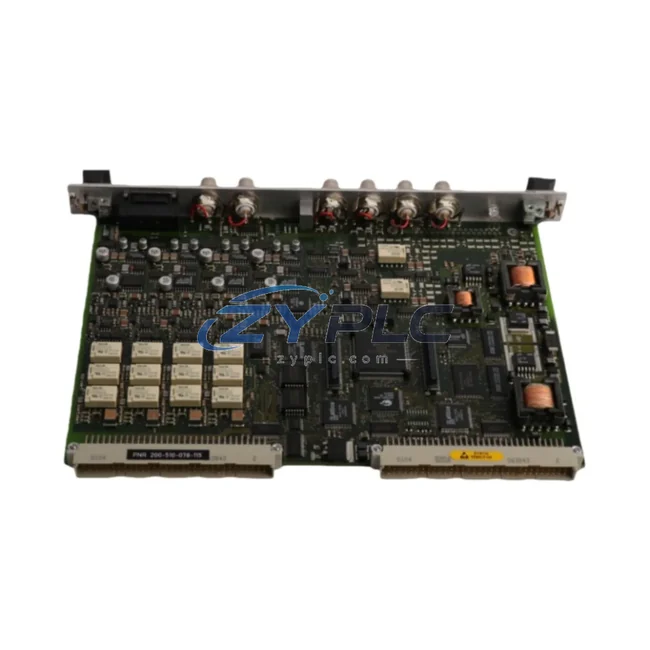

VIBRO-METER MPC4 200-510-078-115 Protection Card

VIBRO-METER MPC4 200-510-078-115 Protection Card for VM600 Turbomachinery Automation

The VIBRO-METER MPC4 200-510-078-115 is a high-performance mechanical protection card engineered for the VM600 turbomachinery protection system. Designed for continuous operation in energy-intensive industrial environments, the MPC4 delivers precise vibration and speed monitoring that directly contributes to reduced unplanned downtime, optimized equipment utilization, and lower total cost of ownership across rotating machinery assets.

In modern industrial plants — from power generation facilities to petrochemical refineries — downtime caused by undetected mechanical faults is one of the leading drivers of energy inefficiency. When a turbine, compressor, or pump operates outside its optimal vibration envelope, it draws abnormal load, accelerates bearing wear, and forces auxiliary systems to compensate. The MPC4 addresses this at the source by providing real-time mechanical condition data that enables control systems to respond before energy losses compound into equipment failures.

The MPC4 slots directly into the VM600 rack alongside companion cards such as the IOC4T I/O card and the AMC8 analog monitoring card, forming a tightly integrated protection architecture. Together, these modules continuously sample vibration amplitude, shaft displacement, and rotational speed, feeding structured data to the VM600 rack controller over the internal backplane bus. This eliminates the signal latency and conversion losses associated with standalone transmitters, keeping the protection loop tight and the energy footprint of the monitoring infrastructure minimal.

Product Specification Table

System Compatibility and Application

The MPC4 does not operate in isolation — its value is realized within a broader industrial automation system. In a typical turbomachinery protection system, the MPC4 works in concert with the VIBRO-METER IOC4T input/output card, which routes conditioned sensor signals from proximity probes and velocity transducers into the protection rack. The AMC8 analog monitoring card processes these signals in parallel, providing continuous amplitude trending that feeds into the plant’s maintenance planning dashboard.

On the drive side, variable frequency drives such as the ABB ACS880 series or Siemens SINAMICS G120 regulate motor speed based on process demand. When the MPC4 detects a vibration anomaly indicating mechanical imbalance or misalignment, the protection system can signal the drive controller to reduce speed setpoints, cutting motor power consumption immediately while the maintenance team investigates. This closed-loop interaction between protection monitoring and drive control is a practical, measurable operational-efficiency mechanism.

For broader plant energy visibility, the MPC4 data stream integrates with Siemens SIMATIC S7-1500 PLC platforms via hardwired relay outputs or through OPC-UA gateways, enabling energy KPIs to be tracked at the equipment level. The VIBRO-METER VM600 RPS6U redundant power supply ensures the protection rack itself maintains continuous operation without power interruption, avoiding the energy spikes associated with cold restarts. On the HMI layer, operators use Siemens TP1200 Comfort Panel or equivalent SCADA terminals to visualize vibration trends alongside operating load curves, correlating mechanical health with power draw in real time.

Communication between the VM600 system and plant-level control infrastructure typically leverages PROFIBUS DP or Modbus TCP protocol modules, ensuring that protection events and energy data are available to the plant historian without additional hardware. This architecture supports predictive maintenance scheduling — a key lever for reducing the energy cost of reactive repairs and emergency restarts.

Maintenance and Replacement Notes

In a combined-cycle power plant running gas turbines at baseload, the MPC4 continuously monitors shaft vibration on the turbine-generator set. When vibration levels trend upward — often an early indicator of bearing degradation or rotor imbalance — the protection system flags the condition before it reaches trip thresholds. Maintenance teams can schedule corrective action during a planned low-demand window, avoiding both an unplanned trip and the energy-intensive restart sequence that follows an emergency shutdown.

In a petrochemical facility, centrifugal compressors driving refrigeration cycles are among the highest energy consumers on site. The MPC4, installed in the VM600 rack monitoring these compressors, provides the vibration baseline data needed to confirm that the machine is operating at its design efficiency point. Deviations from this baseline — caused by fouling, seal wear, or process upsets — are detected early, allowing operators to adjust suction conditions or schedule cleaning before efficiency losses accumulate. Over a 12-month operating cycle, this level of monitoring can reduce compressor operating load by several percentage points, translating directly to lower electricity costs.

For pump trains in water treatment or pipeline applications, the MPC4 enables condition-based maintenance intervals rather than fixed-time overhauls. By extending the service life of well-performing machines and targeting maintenance resources at units showing genuine degradation, plants reduce the number of maintenance-induced restarts — each of which carries a transient energy cost — and keep overall system efficiency higher across the fleet.

Every unit shipped by ZYPLC undergoes outgoing functional testing to verify card communication, channel integrity, and relay output response before dispatch. This pre-shipment validation ensures that the MPC4 integrates into the VM600 rack without commissioning delays, reducing the energy and labor cost of site startup. All units are covered by a , with RFQ-based availability supporting rapid deployment for both planned upgrades and emergency replacements.

Product Sourcing FAQ

Q1: How does the MPC4 200-510-078-115 contribute to operational stability in turbomachinery applications?
The MPC4 provides continuous real-time vibration and speed monitoring that enables early detection of mechanical faults. By identifying imbalance, misalignment, or bearing degradation before they reach critical levels, the card allows operators to maintain machines at their optimal efficiency point, avoiding the excess energy draw associated with degraded mechanical condition and the high energy cost of unexpected shutdowns and restarts.

Q2: Is the MPC4 200-510-078-115 compatible with existing VM600 rack installations?
Yes. The MPC4 is designed for direct installation in the VIBRO-METER VM600 rack system and is compatible with standard VM600 backplane configurations. It operates alongside IOC4T, AMC8, and other VM600 series cards without requiring rack modifications. For integration with third-party PLC or SCADA systems, standard relay outputs and optional communication gateway modules are available.

Q3: What is the recommended replacement and testing process for the MPC4?
ZYPLC recommends a like-for-like replacement using the same SKU (MPC4 200-510-078-115) to maintain system certification and configuration integrity. Each replacement unit supplied by ZYPLC has passed outgoing functional testing covering channel communication, vibration input response, and relay output verification. On-site commissioning should include a channel-by-channel verification against the existing VM600 configuration file to confirm setpoint and relay assignments are correctly restored.

Q4: What warranty and supply support does ZYPLC provide for the MPC4?
All MPC4 200-510-078-115 units supplied by ZYPLC are covered by a from the date of shipment. Units are held RFQ Available for shipment arranged after confirmation, supporting both planned maintenance schedules and emergency replacement requirements. Pre-shipment functional testing is performed on every unit. For supply inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
