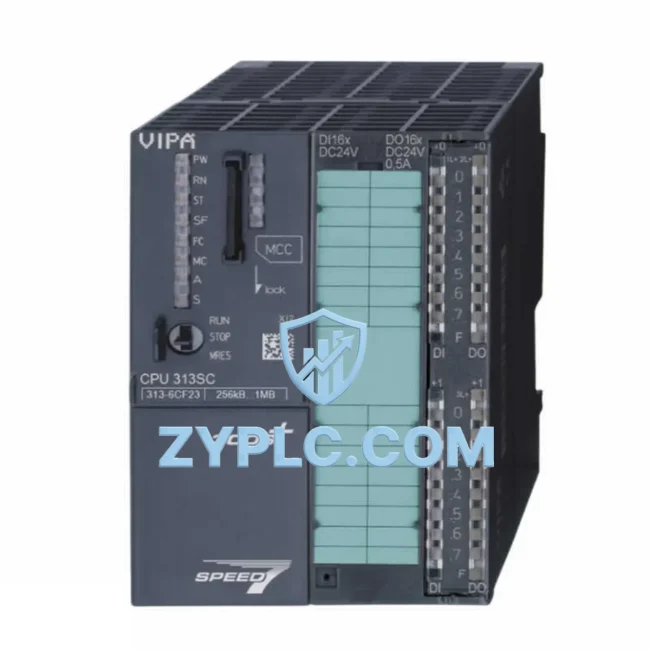

VIPA CPU313SC 313-6CF13 PLC for Speed7

VIPA CPU313SC 313-6CF13 PLC for Speed7 Automation

The VIPA CPU313SC 313-6CF13 is a high-performance, energy-optimized programmable logic controller built on VIPA’s proprietary Speed7 technology platform. Engineered for demanding industrial automation environments, this CPU module delivers exceptional processing throughput while maintaining a low power consumption profile — making it a strategic choice for factories seeking to reduce operational energy costs without compromising control precision or production line takt time.

At its core, the 313-6CF13 integrates onboard I/O, a high-speed Speed7 ASIC, and full compatibility with the Siemens S7-300 instruction set, enabling seamless migration and system expansion. Whether deployed in discrete manufacturing, process control, or mixed-signal production lines, this module supports deterministic, low-latency execution that modern maintenance-focused automation demands. Every unit shipped by ZYPLC undergoes full functional testing prior to dispatch and is backed by a 12-month warranty.

Product Specification Table

System Compatibility and Application

The VIPA CPU313SC 313-6CF13 delivers its greatest energy efficiency value when integrated into a well-designed automation architecture. Acting as the central control orchestrator, it coordinates real-time data exchange with distributed I/O modules such as the VIPA SLIO IM053-1IP00 interface module, which aggregates field-level signals across the backplane with minimal power overhead — keeping the overall cabinet energy budget lean.

For motor-driven applications — which account for the majority of industrial operating load — the 313-6CF13 pairs naturally with variable-speed drives communicating over PROFIBUS-DP. By issuing precise speed reference commands and reading actual torque feedback in real time, the CPU enables variable-speed drive (VSD) strategies that eliminate fixed-speed motor losses. In conveyor, pump, and fan applications, this approach alone can help restore stable operation when a compatible replacement is required. The VIPA CP342-5 PROFIBUS master module extends this capability to remote drive islands across large factory floors, reducing copper wiring infrastructure and associated installation energy costs.

Power quality and energy metering are handled through dedicated monitoring components. When paired with a VIPA 021-1BF00 analog input module connected to current transformers or power transducers, the 313-6CF13 logs real-time kWh consumption per production zone. This data is transmitted to plant-level energy dashboards via the VIPA CP343-1 Ethernet communication processor, enabling energy KPI tracking without a separate SCADA energy module — reducing both software licensing costs and system complexity.

On the human-machine interface layer, operators interact with the system through a VIPA Touch Panel TP62M or compatible HMI, where operating load trends, motor runtime hours, and alarm states are visualized in real time. This closed-loop visibility allows shift supervisors to identify unplanned downtime events — such as motors running at full speed during low-demand periods — and take corrective action immediately, tightening the feedback loop between energy data and production decisions.

For safety-critical zones, the architecture incorporates VIPA safety I/O modules communicating over PROFIsafe, ensuring emergency stop and protective device signals are processed with SIL2-rated integrity while the main CPU continues normal maintenance planning routines uninterrupted. Where applications demand expanded memory or additional DP master ports, the VIPA 314-6CG23 serves as the natural upgrade path within the same Speed7 ecosystem. Legacy Siemens S7-300 racks are fully preserved — existing SM321/SM322 digital I/O modules and SM331/SM332 analog modules remain in service without hardware redesign, protecting prior capital investment while gaining Speed7 energy efficiency.

Maintenance and Replacement Notes

In real-world production environments, the VIPA CPU313SC 313-6CF13 contributes to measurable operational stability across multiple dimensions of the manufacturing process.

Cycle Time Compression and Idle Reduction: The Speed7 ASIC processes ladder logic and function block diagrams at speeds significantly faster than the standard S7-313 CPU. Shorter scan cycles mean actuators receive updated setpoints more frequently, reducing the time equipment spends in transitional states — a common source of unplanned downtime in poorly tuned PLCs. Tighter cycle control improves production line takt time, increasing output per kWh consumed and reducing the energy cost per unit produced.

Predictive Maintenance and Condition Monitoring: By monitoring analog inputs from vibration sensors, temperature probes, and current transducers connected through the onboard SC I/O or expansion modules, the 313-6CF13 executes condition-monitoring logic natively. Early detection of bearing wear, motor overheating, or abnormal current draw allows maintenance teams to intervene before catastrophic failure — avoiding the energy-intensive restart sequences, scrap generation, and extended downtime that follow unplanned equipment failures.

Load-Adaptive Scheduling: The CPU’s high-speed interrupt handling supports time-of-use energy strategies. During peak tariff periods, the PLC can automatically defer non-critical loads — such as compressed air recharge cycles or auxiliary conveyor segments — to off-peak windows, directly reducing electricity costs without operator intervention. This capability is particularly valuable in facilities operating under demand-charge tariff structures.

Reduced Heat Dissipation: With a typical CPU core power draw under 2.5 W, the 313-6CF13 generates significantly less heat than older-generation CPUs of equivalent capability. In densely packed control cabinets, lower heat output reduces the duty cycle of cabinet cooling fans and air conditioners — a secondary but meaningful energy saving that accumulates over thousands of operating hours annually.

Inventory Availability and Supply Continuity: ZYPLC maintains ready stock of the VIPA CPU313SC 313-6CF13 to support urgent replacement scenarios. Unplanned CPU failures are among the most disruptive events in a production facility — every hour of downtime carries both direct unplanned downtime (idle heating, ventilation, lighting) and lost production value. Fast dispatch from verified stock minimizes this exposure. All units are pre-shipment tested and covered by a 12-month warranty, providing procurement teams with the confidence to standardize on this module across multiple production lines.

Product Sourcing FAQ

Q1: How does the VIPA CPU313SC 313-6CF13 contribute to measurable operational stability on a production line?
The 313-6CF13 reduces unplanned downtime through faster scan cycles (less time in transitional states), native support for variable-speed drive control via PROFIBUS-DP, and onboard analog I/O for real-time power monitoring. When integrated with energy metering transducers and a CP343-1 Ethernet module, it enables per-zone kWh logging and load-shedding automation that can reduce overall line operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the VIPA CPU313SC 313-6CF13 compatible with existing Siemens S7-300 hardware and software?
Yes. The 313-6CF13 is fully compatible with the S7-300 rack and backplane, and supports the standard S7-300 instruction set. Existing SM3xx I/O modules, CP modules, and STEP 7 / TIA Portal projects can be reused with minimal modification. This makes it an energy-efficient upgrade path for aging S7-313 installations without requiring a full system redesign or retraining of engineering staff.

Q3: What is the recommended upgrade path within the VIPA Speed7 family?
For applications requiring more memory or additional communication ports, the VIPA 314-6CG23 is the natural next step within the Speed7 series. For high-availability or safety-integrated applications, VIPA’s SLIO platform with a dedicated safety CPU provides SIL2-rated control while maintaining the same energy-efficient architecture. ZYPLC can advise on the optimal migration path based on your current rack configuration and production requirements.

Q4: What testing and warranty coverage does ZYPLC provide for the VIPA 313-6CF13?
Every VIPA CPU313SC 313-6CF13 unit shipped by ZYPLC undergoes a full functional test covering CPU boot sequence, I/O channel verification, communication port integrity, and memory read/write validation. Units are supplied with a 12-month warranty from the date of shipment. In the event of a verified defect within the warranty period, ZYPLC provides replacement or repair support with priority handling to minimize production disruption and protect your line uptime.
