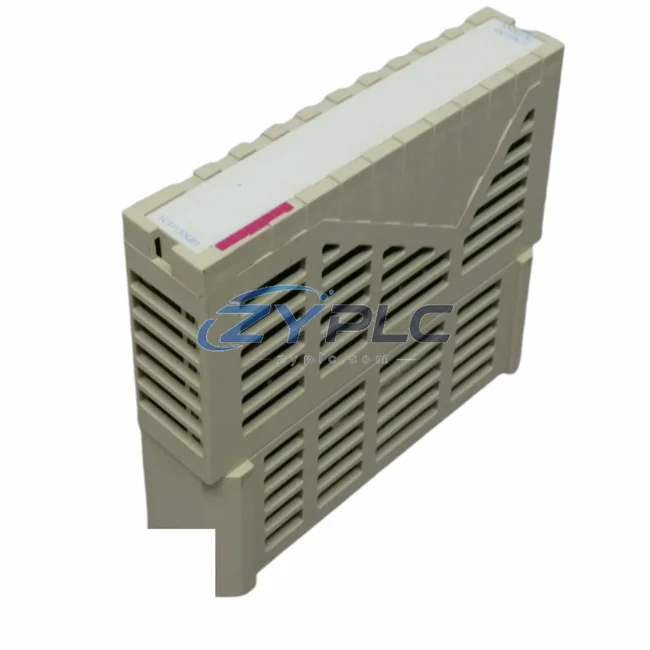

Westinghouse 1C31150G01 Analog Input Module

Westinghouse 1C31150G01 Analog Input Module: Efficiency Control & Production Line Optimization

The Westinghouse 1C31150G01 is a high-precision analog input module engineered for the WDPF and Ovation Distributed Control System (DCS) platforms. In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to accurately capture real-time process signals is the foundation of every maintenance planning strategy. The 1C31150G01 delivers exactly that — reliable, low-drift analog signal acquisition that feeds actionable data into the control loop, enabling tighter regulation of motors, drives, and process equipment across the production line.

By providing high-fidelity 4–20 mA and voltage signal inputs to the Ovation DCS controller, this module ensures that energy-intensive assets — including variable frequency drives (VFDs), servo amplifiers, and high-power actuators — receive precisely conditioned feedback. When the control system operates on accurate data, it avoids over-driving motors, reduces reactive power losses, and eliminates the unplanned downtime associated with hunting or oscillating control loops. The result is measurable improvement in equipment utilization rates and a direct reduction in per-unit operating load.

Product Specification Table

System Compatibility and Application

The 1C31150G01 does not operate in isolation — it is a critical node within a layered automation architecture designed to minimize unplanned downtime at every stage of the production process. At the field level, process transmitters and sensors feed raw analog signals into the module, which then converts and transmits clean digital values to the Ovation DCS controller card, such as the Westinghouse 1C31166G01 or 1C31197G01 controller modules. These controllers execute PID and advanced control algorithms that directly govern the output commands sent to variable frequency drives and motor starters.

In a typical energy-optimized plant architecture, the 1C31150G01 works alongside the Westinghouse 1C31116G01 analog output module, which translates controller decisions into 4–20 mA signals that modulate VFD speed references or valve positioner setpoints. When a pump or fan motor is running at a speed precisely matched to process demand — rather than at full speed with a throttling valve — operational stability of Actual operating results depend on the installed system, load profile, and commissioning parameters.

On the digital side, the module integrates with Westinghouse 1C31122G01 digital input modules and 1C31110G01 digital output modules to form a complete I/O subsystem. Status signals from motor protection relays, circuit breakers, and soft starters are captured through the digital input layer, while the digital output layer issues start/stop and fault-reset commands. This closed-loop architecture — analog measurement, digital status, and coordinated control output — is what enables the Ovation DCS to implement demand-response strategies and load-shedding sequences that protect both equipment and energy budgets during peak tariff periods.

For power quality monitoring, the 1C31150G01 can be paired with dedicated power measurement transducers that feed kW, kVAR, and power factor signals back into the DCS as analog inputs. When the Ovation system has visibility into real-time power consumption at the equipment level, operators can identify energy anomalies — such as a motor drawing 15% more current than its baseline — that indicate mechanical wear, misalignment, or impending failure. This predictive maintenance capability, enabled by accurate analog data acquisition, prevents unplanned downtime and the energy spikes associated with emergency restarts and production catch-up cycles.

Communication between the Ovation DCS and plant-level SCADA or MES systems is handled through the Westinghouse Ovation OCR400 controller and its associated network interface cards, which support standard industrial protocols including Modbus TCP and OPC-DA/UA. This connectivity allows maintenance planning software to pull real-time consumption data from the DCS historian, enabling facility-wide energy dashboards and ISO 50001 compliance reporting without requiring additional hardware investment.

Maintenance and Replacement Notes

Consider a combined-cycle power plant running multiple boiler feedwater pumps. Without accurate analog feedback, the DCS must operate with conservative control margins — running pumps faster than necessary to ensure adequate flow under all conditions. Each pump running 10% above its optimal speed consumes approximately 33% more energy than required (following the cube law). The 1C31150G01, by delivering accurate differential pressure and flow transmitter signals to the Ovation controller, enables the system to trim pump speed to the minimum required setpoint in real time. Across a fleet of six feedwater pumps, this precision can translate to hundreds of kilowatts of continuous savings.

In chemical processing plants, the same principle applies to compressor control. Analog inputs from pressure transmitters, temperature sensors, and flow meters — all routed through modules like the 1C31150G01 — allow the Ovation DCS to implement anti-surge control and load-sharing algorithms across multiple compressor trains. By preventing surge events and balancing load optimally between machines, the system eliminates the unplanned downtime of surge recycling and avoids the mechanical stress that leads to costly seal and impeller replacements.

On the production line timing side, accurate analog feedback enables the DCS to synchronize conveyor speeds, mixing cycles, and batch transfer sequences with greater precision. When each stage of the process runs at its optimal rate — neither waiting for upstream equipment nor rushing to compensate for delays — the overall line OEE (Overall Equipment Effectiveness) improves, and the energy consumed per unit of output decreases. The 1C31150G01 is a foundational component in achieving this level of coordinated, maintenance-focused production control.

Every unit shipped by ZYPLC undergoes a full functional outgoing test, verifying channel accuracy, signal linearity, and communication integrity before dispatch. This ensures that the module performs to specification from the first moment it is installed in your Ovation DCS rack, eliminating the commissioning delays and re-calibration costs that can arise from untested surplus components.

Product Sourcing FAQ

Q1: How does the 1C31150G01 contribute to measurable operational stability in an Ovation DCS system?
The module provides high-accuracy analog signal acquisition that enables the Ovation DCS to implement tight closed-loop control of motors, drives, and process equipment. By eliminating control loop oscillation and enabling demand-matched speed control of pumps, fans, and compressors, the system reduces operating load to the minimum required by actual process conditions rather than worst-case design margins.

Q2: Is the 1C31150G01 compatible with both legacy WDPF and current Ovation DCS platforms?
Yes. The 1C31150G01 is designed for use within the Westinghouse WDPF and Emerson Ovation DCS families. It is compatible with the standard I/O bus architecture used across both platforms. For specific firmware revision compatibility with your controller version, our technical team can advise based on your system configuration prior to shipment.

Q3: What is the recommended replacement or upgrade path if the 1C31150G01 is no longer available?
For applications requiring a direct replacement, the Westinghouse 1C31150G02 or functionally equivalent Emerson Ovation analog input modules may be considered, subject to I/O bus and backplane compatibility verification. ZYPLC maintains inventory of multiple WDPF/Ovation analog input variants and can assist with cross-reference and compatibility assessment.

Q4: What testing and warranty coverage is provided with this module?
All 1C31150G01 units supplied by ZYPLC are subject to a full outgoing functional test covering channel accuracy, signal range verification, and communication integrity. Each module is covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling to minimize any impact on plant operations.
