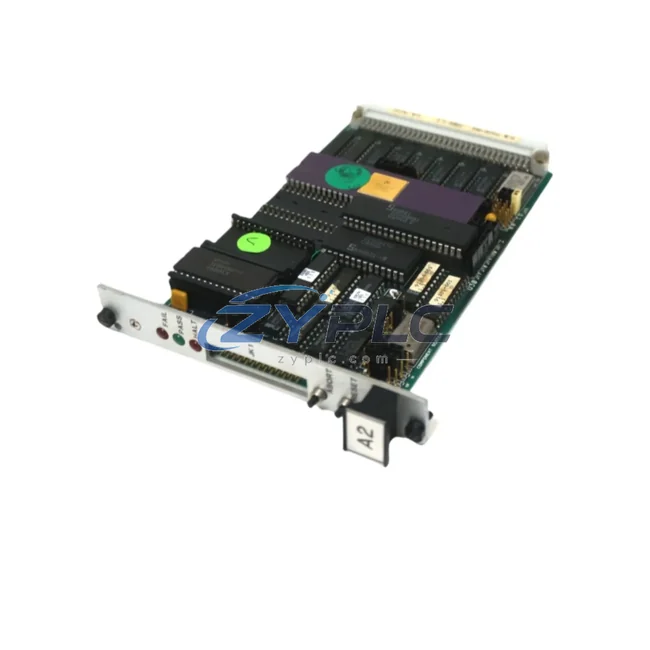

Xycom XVME-600 70600-001 CPU Board for VMEbus

Xycom XVME-600 70600-001 CPU Board for VMEbus

The Xycom XVME-600 70600-001 is a high-performance VMEbus CPU board engineered for seamless integration within layered industrial control system architectures. Designed to serve as the central processing node in VMEbus-based automation platforms, this board delivers deterministic real-time processing, robust I/O coordination, and reliable inter-module communication across multi-rack and distributed control environments. Whether deployed in legacy modernization projects or as a core component in new system builds, the 70600-001 provides the computational backbone that ties together control, I/O, network, and human-machine interface layers into a coherent, maintainable automation system.

In modern industrial automation, no CPU board operates in isolation. The XVME-600 70600-001 is purpose-built to function as the architectural anchor of a complete VMEbus control system, coordinating upstream supervisory commands with downstream field-level execution. Its architecture supports tight integration with companion I/O modules, communication gateways, and power distribution components, enabling engineers to design systems with high availability, predictable scan cycles, and structured fault management. The board’s compatibility with the broader XVME-600 platform ecosystem ensures that system expansion, redundancy implementation, and long-term maintenance remain straightforward and cost-effective.

From the control layer perspective, the 70600-001 interfaces directly with SCADA and DCS supervisory systems, executing ladder logic, function block, or structured text programs with consistent cycle times. At the I/O layer, it coordinates with VMEbus-compatible analog and digital I/O modules — such as the Xycom XVME-240 digital I/O board and XVME-566 analog output module — to acquire field signals and drive actuators with precision. Network layer connectivity is maintained through dedicated communication modules, including Ethernet gateway cards and serial communication adapters, ensuring that process data flows reliably between the CPU and plant-level networks. The power layer, typically supplied by a dedicated VMEbus backplane power supply unit, provides the regulated voltages required for stable CPU and module operation across wide ambient temperature ranges.

At the human-machine interface layer, operator workstations and panel-mounted HMI terminals connect to the system via the CPU’s communication ports, delivering real-time process visualization and alarm management. At the execution layer, the 70600-001 drives output signals to variable frequency drives, servo controllers, solenoid valve banks, and relay output modules, completing the closed-loop control chain from sensor to actuator. This end-to-end architectural coherence is what distinguishes a well-engineered VMEbus system from a collection of loosely coupled components.

System redundancy is a critical design consideration in high-availability applications such as power generation, oil and gas processing, and water treatment. The XVME-600 platform supports redundant CPU configurations where a standby 70600-001 board monitors the primary processor and assumes control within milliseconds of a detected fault, eliminating unplanned downtime. Redundant power supplies, redundant communication paths via dual-port Ethernet modules, and hot-swap I/O modules further enhance system resilience. Engineers designing for SIL-rated or high-uptime environments will find the 70600-001’s architecture well-suited to these demanding requirements.

Module expansion within the XVME-600 system is achieved through the VMEbus backplane, which supports multiple board slots in a single chassis. Additional I/O capacity can be added by populating vacant slots with Xycom XVME-series I/O boards, communication modules such as the XVME-688 Ethernet interface card, or specialty function modules including counter/timer boards and motion control interfaces. The backplane’s passive architecture ensures that adding or replacing modules does not interrupt the operation of adjacent boards, supporting live maintenance procedures in environments where process continuity is paramount.

Engineering commissioning of the 70600-001 is supported by Xycom’s development tools and standard VMEbus diagnostic utilities. System integrators can perform memory mapping, interrupt vector configuration, and bus arbitration setup through the board’s onboard configuration registers, accessible via the VMEbus address space. Firmware updates and application program downloads are managed through the CPU’s serial or Ethernet debug port, enabling remote commissioning and field updates without physical board removal. This reduces engineering labor during initial system startup and simplifies ongoing software maintenance throughout the system’s operational life.

Long-term maintainability is a defining advantage of the XVME-600 70600-001 in industrial environments where control systems are expected to operate for ten to twenty years or more. ZYPLC maintains a dedicated inventory of Xycom XVME-series boards, including the 70600-001, XVME-010 CPU modules, XVME-400 series I/O boards, and associated backplane components, ensuring that replacement units are available when needed. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, providing documented assurance of functional integrity and reducing procurement risk for maintenance engineers and plant managers.

Product Specification Table

System Compatibility Notes

The XVME-600 70600-001 achieves its full architectural value when deployed alongside a coordinated suite of compatible modules and system components. In a typical VMEbus control cabinet, the 70600-001 occupies the master CPU slot of a Xycom VMEbus chassis, with adjacent slots populated by the Xycom XVME-240 32-channel digital I/O board for discrete signal acquisition and the Xycom XVME-566 analog output module for continuous process variable control. A Xycom XVME-688 Ethernet communication module installed in the same backplane provides plant network connectivity, enabling the CPU to exchange data with SCADA servers and historian systems via standard TCP/IP protocols.

Power integrity across the VMEbus chassis is maintained by a dedicated VMEbus backplane power supply rated for the combined current draw of all installed modules, with an optional redundant power supply module providing automatic failover in high-availability applications. System timing and synchronization are managed through a VMEbus real-time clock module, ensuring that time-stamped event logs and sequence-of-events records maintain accuracy across extended operating periods.

For applications requiring expanded I/O capacity beyond a single chassis, the 70600-001 supports multi-crate configurations via VMEbus extender cables and remote I/O chassis, allowing the control system to reach field devices distributed across large plant areas. Serial communication with legacy field instruments is handled through Xycom XVME-serial interface modules supporting RS-232, RS-422, and RS-485 protocols, enabling integration with existing instrumentation without requiring full system replacement. In process control applications, the 70600-001 coordinates with Xycom XVME-400 series analog input modules to acquire 4–20 mA and thermocouple signals from temperature, pressure, and flow transmitters, completing the signal chain from field sensor to control algorithm execution.

Industrial Application Notes

The Xycom XVME-600 70600-001 is deployed across a wide range of industrial sectors where VMEbus-based control systems remain the platform of choice for their proven reliability, deterministic performance, and long service life. In electric power generation and substation automation, the 70600-001 serves as the primary controller for generator excitation control, transformer protection relay coordination, and switchgear sequencing, where deterministic scan cycles and high-reliability operation are non-negotiable requirements.

In oil and gas processing facilities, the board is integrated into emergency shutdown systems and process control panels, coordinating with pressure transmitters, valve positioners, and flame detection systems to maintain safe operating conditions. Its robust operating temperature range and industrial-grade construction make it suitable for installation in control rooms adjacent to hazardous process areas. Water and wastewater treatment plants utilize the XVME-600 platform for pump sequencing, chemical dosing control, and SCADA data acquisition, where the system’s long-term availability and ease of spare parts procurement are critical to maintaining continuous plant operation.

In mining and mineral processing applications, the 70600-001 controls conveyor drive systems, crusher sequencing, and ore processing equipment, interfacing with variable frequency drives and motor protection relays through the VMEbus I/O subsystem. Metallurgical and steel production facilities deploy the board in rolling mill control systems and furnace temperature regulation applications, where precise analog output control and fast interrupt response times are essential for product quality. Packaging and discrete manufacturing production lines use the XVME-600 CPU to coordinate multi-axis motion sequences, vision system triggers, and reject mechanisms, integrating with servo drives and pneumatic actuator controllers through the VMEbus I/O backplane.

Product Compatibility FAQ

Q1: Is the Xycom XVME-600 70600-001 compatible with existing XVME-series I/O modules and VMEbus chassis from other manufacturers?
The 70600-001 conforms to the IEEE 1014 VMEbus standard, ensuring mechanical and electrical compatibility with standard 6U VMEbus chassis from Xycom and other VMEbus-compliant manufacturers. It operates as a VMEbus system controller (slot 1) and is fully compatible with the range of Xycom XVME-series I/O and communication modules. When integrating with third-party VMEbus I/O boards, engineers should verify bus arbitration settings and interrupt vector assignments to avoid conflicts. ZYPLC’s technical team can assist with compatibility assessment for specific system configurations.

Q2: What commissioning steps are required when replacing a failed 70600-001 in an existing XVME-600 system?
Replacement commissioning involves three primary steps: first, document the existing board’s configuration register settings and application firmware version before removal; second, configure the replacement board’s bus arbitration, interrupt, and address decode settings to match the original; third, reload the application program via the serial or Ethernet debug port and perform a controlled system restart with I/O modules in safe state. ZYPLC supplies replacement units with a warranty terms confirmed during quotation and can provide configuration guidance to minimize system downtime during the replacement procedure.

Q3: How does the warranty terms confirmed during quotation from ZYPLC apply to the XVME-600 70600-001, and what does it cover?
All Xycom XVME-600 70600-001 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers functional defects in the board’s processing, memory, communication, and bus interface circuits under normal operating conditions. Units that fail within the warranty period are repaired or replaced at no additional cost. The warranty supports long-term maintenance planning by providing a documented assurance period that aligns with typical annual maintenance cycles in industrial facilities. Contact ZYPLC at plc. sales@zyplc. com or +86 19859288691 for warranty claims and technical support.
