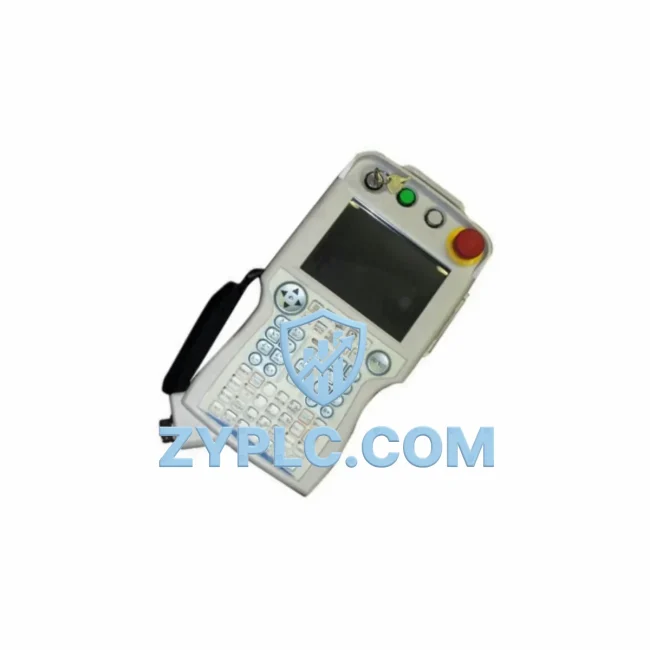

Yaskawa HW9280707-F Industrial Network Interface for NX100 DX100 Systems

Yaskawa HW9280707-F: Industrial Data Link and Human-Machine Interface for NX100 / DX100 Robot Systems

In modern smart factory environments, the teach pendant is far more than a handheld programming device — it is the primary human-machine interface node that bridges the robot controller, the motion execution layer, and the plant-level SCADA or MES network. The Yaskawa HW9280707-F teach pendant, designed for compatibility with the NX100 and DX100 MOTOMAN robot controllers, serves as the critical data entry and real-time feedback terminal within the robotic automation chain. Its role in the industrial data flow spans from motion command input and program editing to live status monitoring, alarm diagnostics, and I/O signal verification — all of which are essential for maintaining production transparency and system responsiveness in high-throughput manufacturing environments.

The HW9280707-F connects directly to the NX100 or DX100 controller cabinet via a dedicated teach pendant interface port, establishing a real-time bidirectional communication link. This link carries motion parameters, axis position data, program execution states, and system fault codes between the controller and the operator. In a layered automation architecture, the DX100 controller itself communicates upstream with SCADA systems and MES platforms via Ethernet/IP or DeviceNet, while the teach pendant provides the local operator interface for commissioning, fine-tuning, and maintenance. This makes the HW9280707-F an indispensable component in the complete data chain — from field-level robot motion to plant-level production monitoring.

Network Communication Table

Connected Automation Data Flow

The Yaskawa HW9280707-F teach pendant operates at the intersection of the human interface layer and the robot motion control layer. In a typical MOTOMAN robotic cell, the data flow begins at the teach pendant, where the operator inputs motion programs, sets tool coordinates, and configures I/O logic. These commands are transmitted in real time to the NX100 or DX100 controller, which processes them and dispatches servo commands to the robot’s axis drives — typically Yaskawa SGDV or SGDM series servo amplifiers — controlling each joint with precision.

The DX100 controller also interfaces with the plant network. Via an optional Yaskawa JZNC-YEW01 Ethernet communication board or a DeviceNet interface module, the controller connects to upstream SCADA platforms such as Wonderware or FactoryTalk, enabling real-time production data collection, remote alarm monitoring, and OEE tracking. On the field device side, the controller communicates with Yaskawa JZRCR-series I/O expansion units to handle digital and analog signals from sensors, grippers, conveyors, and safety light curtains.

In multi-robot production lines, the HW9280707-F teach pendant is used across multiple MOTOMAN robot cells — including those running NX100 and DX100 controllers — ensuring a consistent operator interface across the entire line. This reduces training time, minimizes human error during program transfer, and accelerates commissioning when replacing or upgrading robot units. The teach pendant also supports connection to Yaskawa YRC1000 and FS100 controller families in mixed-generation installations, where legacy and new-generation robots share the same production floor.

For remote diagnostics and predictive maintenance, the DX100 controller’s upstream Ethernet link feeds alarm history, cycle time data, and axis load information to edge gateways or industrial PCs running condition monitoring software. The HW9280707-F serves as the local confirmation and override terminal in this architecture, allowing maintenance engineers to acknowledge alarms, run diagnostic routines, and verify I/O states without interrupting the upstream data stream to the SCADA or MES layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in robotic automation is data isolation — where robot controllers operate as closed systems, disconnected from the broader plant network. The Yaskawa HW9280707-F teach pendant, combined with the NX100 or DX100 controller’s network capabilities, directly addresses this problem. By providing a standardized human interface for program management and system diagnostics, the teach pendant ensures that operators can extract, verify, and transfer production data without relying on proprietary software tools or external laptops.

In facilities where multiple robot brands coexist, the HW9280707-F’s compatibility with Yaskawa’s MOTOMAN ecosystem — including the JZRCR-NPP01B-1 and JZRCR-YPP01-1 controller variants — ensures that Yaskawa robots remain fully integrated into the plant’s automation architecture. Protocol unification is achieved through the DX100’s built-in communication options, which support Ethernet/IP, DeviceNet, and Profibus, allowing the robot cell to participate in the same network fabric as PLCs, HMIs, and SCADA systems from other vendors.

For production line transparency, the teach pendant’s real-time alarm display and I/O monitoring functions allow floor operators to identify and resolve faults quickly, reducing unplanned downtime. In high-mix, low-volume manufacturing environments — such as automotive component assembly, electronics manufacturing, and food packaging — the ability to rapidly switch between robot programs via the HW9280707-F teach pendant is a key enabler of flexible production. The 12-Month Warranty provided with every unit from ZYPLC ensures that this critical interface component remains covered throughout the initial deployment and ramp-up phase.

Industrial Connectivity FAQ

Q1: Is the Yaskawa HW9280707-F teach pendant compatible with both NX100 and DX100 controllers?
Yes. The HW9280707-F is designed for use with both the NX100 and DX100 MOTOMAN robot controller platforms, including variants such as JZRCR-NPP01B-1, JZRCR-NPP01-1, and JZRCR-YPP01-1. It provides a consistent operator interface across both controller generations, simplifying multi-robot site management.

Q2: How does the teach pendant integrate with SCADA and MES systems?
The HW9280707-F teach pendant communicates directly with the NX100 or DX100 controller. The controller, in turn, connects to SCADA and MES platforms via Ethernet/IP, DeviceNet, or Profibus interfaces. The teach pendant serves as the local operator terminal, while upstream data — including alarm logs, cycle counts, and axis diagnostics — is transmitted to the plant network through the controller’s communication modules.

Q3: What is the warranty coverage for the HW9280707-F, and has it been tested before shipment?
Every Yaskawa HW9280707-F unit supplied by ZYPLC carries a 12-Month Warranty and undergoes pre-shipment functional testing to verify display, keypad, communication link, and connector integrity. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation and commissioning queries.

Q4: Can the HW9280707-F be used in mixed-generation robot installations alongside newer Yaskawa controllers?
In many mixed-generation installations, the HW9280707-F is used alongside newer Yaskawa YRC1000 or FS100 controllers. While direct cross-controller compatibility depends on the specific firmware and cable configuration, ZYPLC’s technical team can advise on adapter options and compatibility verification to ensure seamless integration across your robot fleet.
