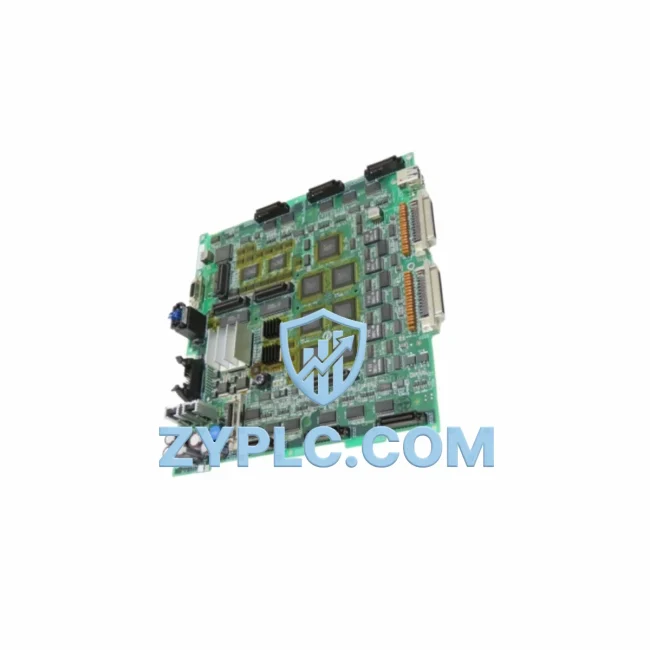

Yaskawa JZRCR-YPU01C-1 Industrial Network Interface for DX100 Systems

Yaskawa JZRCR-YPU01C-1: Industrial Data Link and Smart Factory Connectivity for DX100 Systems

The Yaskawa JZRCR-YPU01C-1 is a high-performance servo drive unit engineered for the DX100 robot controller platform, delivering robust industrial network connectivity across multi-axis motion control architectures. Designed to serve as the critical power and communication bridge within Yaskawa’s DX100 ecosystem, this unit enables seamless data exchange between field-level servo actuators, the robot controller backplane, and upper-level supervisory systems including SCADA, HMI, and MES platforms. In smart factory environments where real-time data integrity and deterministic communication are non-negotiable, the JZRCR-YPU01C-1 stands as a foundational component in the industrial data chain.

Network Communication Table

Connected Automation Data Flow

Within a fully integrated Yaskawa robotic cell, the JZRCR-YPU01C-1 operates at the intersection of power delivery and real-time servo communication. The DX100 controller issues motion commands through its internal communication bus, and the JZRCR-YPU01C-1 translates these commands into precise drive signals for each servo axis. This architecture supports multi-axis synchronization critical for coordinated robot motion in welding, palletizing, and precision assembly applications.

The data flow begins at the teach pendant or HMI interface — operators program motion sequences that are stored and executed by the DX100 controller. The JZRCR-YPU01C-1 receives these commands and drives the servo motors through the SRDA-SDB14A01A-E servo amplifier modules, which regulate torque, speed, and position in real time. Encoder feedback from each axis is returned through the same communication pathway, enabling closed-loop control with microsecond-level response times.

At the network level, the DX100 controller interfaces with plant-wide SCADA systems and MES platforms via Ethernet/IP or DeviceNet gateways. The JANCD-ABB04-E I/O board manages discrete signal exchange with PLCs, safety relays, and peripheral sensors — including proximity switches, vision systems, and force-torque sensors — ensuring that the robot cell responds dynamically to production line events. The JZRCR-YPU01C-1 underpins this entire data chain by maintaining stable, high-speed servo communication that keeps the controller’s cycle time consistent and predictable.

For facilities transitioning to newer platforms, the JZRCR-YPU01C-1 is architecturally compatible with migration pathways toward the YRC1000 controller series. The JZRCR-YPU01-1 variant serves as a reference point for cross-generation compatibility assessments, allowing maintenance engineers to plan phased upgrades without full system replacement. This interoperability reduces downtime risk and protects capital investment in existing robot infrastructure.

In remote monitoring scenarios, the DX100 controller’s network interface enables SCADA dashboards to display real-time axis status, alarm states, and cycle counts. The JZRCR-YPU01C-1’s role in maintaining servo communication integrity directly impacts the quality of data available to operators at the supervisory level — any degradation in drive communication is immediately reflected in controller alarm logs and can trigger automated alerts to maintenance teams via the plant’s industrial IoT gateway.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy robot installations is data isolation — servo drive faults, axis alarms, and performance degradation that remain invisible to plant-level monitoring systems. The JZRCR-YPU01C-1 addresses this by maintaining a continuous, high-integrity communication link between the DX100 controller and its servo drive modules. When a fault occurs, the controller’s diagnostic system captures the event with timestamp and axis identification, making it immediately available to connected SCADA or MES platforms for root cause analysis.

Protocol fragmentation is another common barrier in mixed-vendor environments. Facilities running Yaskawa robots alongside third-party PLCs, Siemens or Allen-Bradley control systems, and independent conveyor or vision systems often struggle to unify data streams. The DX100 platform’s support for standard industrial Ethernet protocols — combined with the JZRCR-YPU01C-1’s reliable internal communication — allows system integrators to build transparent data bridges between the robot controller and plant-wide automation networks without custom middleware.

Production line transparency is further enhanced through the DX100’s cycle time logging and alarm history functions. Maintenance teams can access historical servo performance data remotely, enabling predictive maintenance scheduling before mechanical wear causes unplanned downtime. The 12-month warranty on the JZRCR-YPU01C-1 provides additional assurance during the critical post-installation period, with pre-shipment functional testing confirming that each unit meets Yaskawa’s original performance specifications before dispatch.

System expansion is straightforward within the DX100 architecture. Additional robot axes, peripheral I/O modules, and network nodes can be integrated without redesigning the core communication structure. This scalability makes the JZRCR-YPU01C-1 a long-term investment for facilities planning incremental automation expansion across multiple production lines.

Industrial Connectivity FAQ

Q: What communication protocols does the Yaskawa JZRCR-YPU01C-1 support?
A: The JZRCR-YPU01C-1 operates within the Yaskawa DX100 controller’s proprietary high-speed serial communication architecture, which governs real-time servo command and feedback exchange. At the plant network level, the DX100 controller supports Ethernet/IP, DeviceNet, and Profibus connectivity through dedicated communication boards, enabling integration with SCADA, HMI, and PLC systems from multiple vendors.

Q: How does this unit ensure network stability in high-cycle production environments?
A: The JZRCR-YPU01C-1 is designed for continuous-duty industrial operation, with internal communication circuits optimized for deterministic, low-latency servo data exchange. Its architecture minimizes communication jitter, ensuring that multi-axis motion commands are executed with consistent timing — critical for applications such as arc welding, spot welding, and high-speed pick-and-place where microsecond-level synchronization affects product quality.

Q: Is the JZRCR-YPU01C-1 compatible with the YRC1000 controller platform?
A: The JZRCR-YPU01C-1 is specifically designed for the DX100 controller series. While the YRC1000 represents the next generation of Yaskawa robot controllers, migration compatibility assessments should reference the JZRCR-YPU01-1 and associated YRC1000 drive modules. Our technical team can advise on cross-platform compatibility and upgrade pathways based on your specific robot model and application requirements.

Q: What quality assurance measures are applied before shipment?
A: Every JZRCR-YPU01C-1 unit undergoes pre-shipment functional testing to verify communication integrity, power delivery performance, and compatibility with DX100 controller specifications. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for prompt dispatch, supporting urgent maintenance and production continuity requirements.

—
