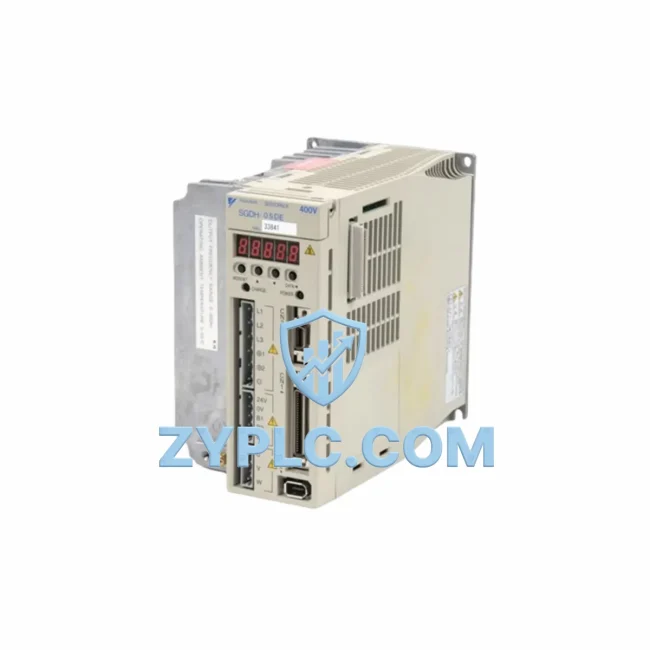

Yaskawa SGDH-05DE-OY Network Interface for Sigma-II Systems

Yaskawa SGDH-05DE-OY Network Interface for Sigma-II Systems: Industrial Data Link and Smart Factory Connectivity

In modern smart manufacturing environments, seamless data flow between field devices and upper-level control systems is the foundation of operational efficiency. The Yaskawa SGDH-05DE-OY AC Servo Drive — part of the renowned Sigma-II Series — is engineered not only as a high-performance motion controller but as a critical node in the industrial network architecture. With native MECHATROLINK-II communication protocol support, this 500W servo drive enables deterministic, real-time data exchange between servo axes, PLC controllers, remote I/O modules, HMI panels, SCADA systems, and edge gateways across the production floor.

The SGDH-05DE-OY integrates directly into Yaskawa’s motion network ecosystem, where it communicates synchronously with the MP2300 Machine Controller via MECHATROLINK-II bus, achieving sub-millisecond cycle times essential for precision positioning and coordinated multi-axis motion. This tight coupling between the servo drive and the machine controller eliminates the latency and data loss that plague traditional analog or pulse-train architectures, making it ideal for high-speed assembly lines, CNC machining centers, and semiconductor handling equipment.

Network Communication Table

Connected Automation Data Flow

The SGDH-05DE-OY sits at the intersection of motion control and industrial networking. In a typical smart factory deployment, the data chain begins at the sensor level — proximity switches, linear encoders, and torque sensors feed real-time signals into the servo drive’s I/O interface. The drive processes these signals locally and simultaneously transmits position, speed, torque, and alarm data upstream via MECHATROLINK-II to the MP2300 Machine Controller or the JEPMC-W6002-E motion network module.

From the machine controller, data flows into the plant-level SCADA system through an Ethernet gateway such as the JAPMC-CM2300 communication module, which bridges the MECHATROLINK-II network to standard Ethernet/IP or Modbus TCP infrastructure. This allows operators monitoring the NS115 HMI panel to view live servo status, fault codes, and production counters without interrupting the motion cycle. The HMI communicates with the SCADA host over a managed industrial Ethernet switch, ensuring network segmentation and traffic prioritization for time-critical servo data.

In multi-axis configurations — common in robotic welding cells or pick-and-place systems — the SGDH-05DE-OY operates alongside companion drives such as the SGDH-10DE-OY (1kW) and SGDH-20DE-OY (2kW), all sharing the same MECHATROLINK-II bus under coordinated control from the MP2300. The SGDV-2R8A01A Sigma-V servo drive can also be integrated into the same network where higher dynamic performance is required, providing a scalable upgrade path without replacing the entire control architecture.

For applications requiring protocol conversion — such as connecting legacy Modbus RTU field devices to the MECHATROLINK-II backbone — the SI-EN3 option card or a third-party gateway module can be inserted into the network chain, translating data formats transparently. This ensures that older PLCs, variable frequency drives (VFDs), and remote I/O racks remain accessible within the unified data fabric of the smart factory. The DX200 Robot Controller, widely deployed in Yaskawa Motoman robotic cells, can also exchange status and command data with the SGDH-05DE-OY through the shared MECHATROLINK-II network, enabling tightly synchronized robot-servo coordination in assembly and material handling applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where machines, drives, and controllers operate in silos, unable to share process data with supervisory systems or with each other. The SGDH-05DE-OY directly addresses this problem through its native MECHATROLINK-II interface, which provides a standardized, deterministic communication channel that eliminates proprietary analog wiring and replaces it with a digital network capable of carrying position commands, feedback data, I/O states, and diagnostic information simultaneously over a single cable.

For facilities transitioning from traditional pulse-train servo systems to networked motion control, the SGDH-05DE-OY offers a clear migration path. Its compatibility with the Yaskawa Sigma-II ecosystem means that existing mechanical infrastructure — servo motors, cabling, and mounting hardware — can be retained while the communication layer is upgraded. This reduces retrofit costs significantly and allows production lines to achieve full digital transparency without a complete overhaul.

Remote diagnostics represent another critical capability enabled by the SGDH-05DE-OY’s network integration. Maintenance engineers can access real-time fault logs, overload histories, and encoder feedback data from the SCADA workstation or even from a remote terminal via VPN, without physically accessing the drive cabinet. Alarm conditions — such as overcurrent, encoder error, or regenerative overload — are transmitted instantly through the MECHATROLINK-II network to the HMI and SCADA system, triggering automated alerts and enabling rapid response before production downtime occurs.

System scalability is equally well-served by the SGDH-05DE-OY’s network architecture. As production capacity expands, additional servo axes can be added to the MECHATROLINK-II bus without redesigning the control network. The MP2300 controller supports up to 32 axes on a single MECHATROLINK-II network, allowing manufacturers to scale from a single-axis test rig to a full multi-axis production line using the same communication infrastructure and programming environment.

Industrial Connectivity FAQ

Q1: What is the communication latency of the SGDH-05DE-OY on a MECHATROLINK-II network?
The SGDH-05DE-OY supports MECHATROLINK-II cycle times as short as 0.5 ms, providing deterministic, low-latency communication suitable for high-speed motion control applications. Network latency is consistent and predictable, making it ideal for synchronized multi-axis systems.

Q2: Is the SGDH-05DE-OY compatible with non-Yaskawa PLC systems?
The SGDH-05DE-OY uses the MECHATROLINK-II protocol, which is supported by several third-party PLC and motion controller manufacturers. For integration with Modbus TCP, EtherNet/IP, or PROFIBUS networks, a protocol gateway or option card such as the SI-EN3 can be used to bridge communication between the servo drive and non-Yaskawa control systems.

Q3: How is network stability ensured in high-interference industrial environments?
MECHATROLINK-II uses shielded twisted-pair cabling and a daisy-chain topology that minimizes electromagnetic interference. The SGDH-05DE-OY’s communication hardware is designed to maintain stable data transmission in environments with variable frequency drives, welding equipment, and other high-EMI sources operating nearby.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every SGDH-05DE-OY unit supplied by ZYPLC undergoes functional testing prior to shipment, including communication interface verification, encoder feedback validation, and load simulation. The 12-month warranty covers manufacturing defects and communication hardware failures. Units are shipped with full documentation and are available from in-stock inventory for rapid global delivery.
