Yaskawa SGM-02U3B4L Industrial Network Interface for SGM Series Systems

Yaskawa SGM-02U3B4L: Industrial Data Link and Smart Factory Connectivity for SGM Series Systems

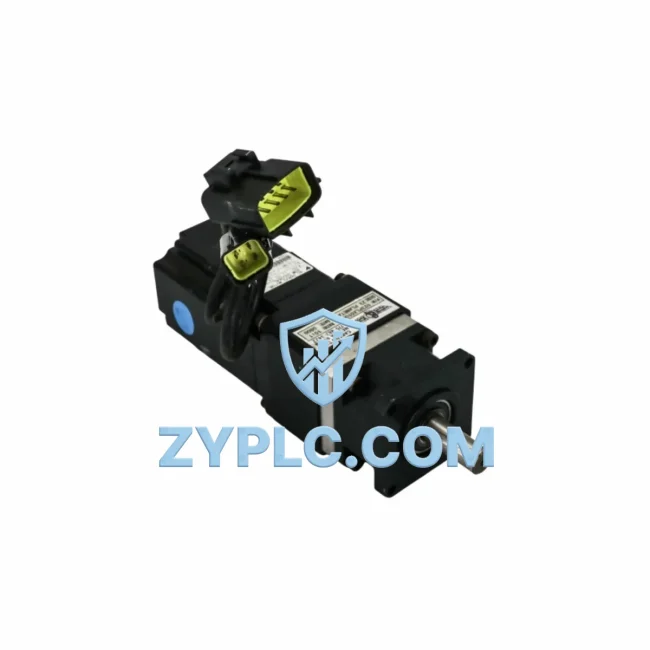

The Yaskawa SGM-02U3B4L (SKU: 023PLX0100 23 SGM-02U3B4L 10.004.22 RKH/W 500L 0040-99736) is a 200W AC servo motor from Yaskawa’s renowned SGM Series, engineered for precision motion control and seamless integration into modern industrial network architectures. Designed to operate within high-demand smart factory environments, this servo motor serves as a critical node in the data chain connecting field-level actuators to upper-level control and monitoring systems. Whether deployed in CNC machining centers, robotic assembly lines, packaging automation, or precision positioning stages, the SGM-02U3B4L delivers the torque accuracy, response speed, and network compatibility that Industry 4.0 demands.

At the heart of its connectivity value is native support for the MECHATROLINK-II/III communication protocol, Yaskawa’s high-speed synchronous motion bus that enables deterministic, real-time data exchange between the servo motor and its paired Yaskawa SGDV or SGDH Sigma-V/Sigma-II series servo drives. This protocol-level integration eliminates analog signal noise, reduces wiring complexity, and enables sub-millisecond command cycle times — a fundamental requirement for coordinated multi-axis motion in smart manufacturing cells.

Network Communication Table

Connected Automation Data Flow

In a fully networked smart factory, the SGM-02U3B4L sits at the actuator layer, receiving motion commands from the Yaskawa SGDV-2R8A01A Sigma-V Servo Drive over the MECHATROLINK-III bus. The servo drive itself connects upstream to a Yaskawa MP3200 Machine Controller, which orchestrates multi-axis coordination and communicates with the plant’s SCADA system via Ethernet/IP or OPC-UA gateway modules.

Signal acquisition begins at the encoder embedded in the SGM-02U3B4L, which streams real-time position and velocity data back to the SGDV drive at cycle times as fast as 0.5ms. This feedback loop is then aggregated by the MP3200 controller and forwarded — via a Yaskawa SI-EP3 EtherCAT option card or a third-party HMS Anybus X-gateway — to the plant’s Siemens SIMATIC S7-1500 PLC or Mitsubishi MELSEC iQ-R series controller for supervisory coordination across production lines.

For remote I/O expansion, the network architecture typically incorporates Yaskawa MP2310 remote I/O modules or Wago 750-352 PROFIBUS DP couplers, which relay digital and analog signals from proximity sensors, photoelectric sensors, and pressure transducers back to the central controller. HMI visualization is handled by Proface GP4000 series panels or Weintek cMT series HMIs, which display live servo status, alarm states, and production KPIs pulled directly from the MECHATROLINK data stream.

At the edge layer, an industrial edge gateway — such as the Moxa UC-8112 or Advantech WISE-5000 — collects aggregated servo and drive data, applies local analytics, and pushes structured datasets to cloud-based MES or ERP platforms via MQTT or REST API. This end-to-end data flow — from the SGM-02U3B4L encoder pulse to the cloud dashboard — is what defines true smart factory connectivity.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented automation islands: servo drives running on proprietary motion buses, PLCs communicating over legacy PROFIBUS or RS-485 Modbus, and HMI systems with no live connection to the servo layer. The result is data isolation — operators cannot see real-time motor load, position error, or alarm history without physically walking to the drive panel.

The Yaskawa SGM-02U3B4L, when paired with the appropriate SGDV servo drive and a MECHATROLINK-to-EtherCAT or MECHATROLINK-to-PROFINET gateway, bridges this gap. Protocol conversion modules — such as the Yaskawa JAPMC-CM2300 communication module — allow the servo’s real-time data to be published onto standard industrial Ethernet networks, making it accessible to SCADA platforms like Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC.

This connectivity enables production line transparency: supervisors can monitor servo torque trends, detect bearing wear through vibration signature analysis, and trigger predictive maintenance workflows — all without interrupting production. Remote diagnostics via VPN-secured industrial routers further reduce the need for on-site service visits, cutting mean time to repair (MTTR) and improving overall equipment effectiveness (OEE). System expansion is equally straightforward: additional SGM-02U3B4L units can be added to the MECHATROLINK ring topology without reconfiguring the upper-level network, supporting scalable, modular factory growth.

Industrial Connectivity FAQ

Q1: What communication protocol does the Yaskawa SGM-02U3B4L support, and is it compatible with standard industrial Ethernet networks?
The SGM-02U3B4L natively supports the MECHATROLINK-II/III motion bus when paired with a compatible Yaskawa SGDV or SGDH servo drive. For integration with EtherCAT, PROFINET, or Modbus TCP networks, a protocol gateway or option card (such as the SI-EP3 EtherCAT module) is required. This ensures compatibility with multi-vendor automation architectures.

Q2: How does this servo motor perform in terms of communication latency and real-time control?
The MECHATROLINK-III protocol supports communication cycle times as low as 0.5ms, enabling deterministic, low-latency motion control suitable for high-speed CNC, robotics, and precision assembly applications. Position, speed, and torque data are exchanged synchronously within each cycle, ensuring tight multi-axis coordination.

Q3: Can the SGM-02U3B4L be monitored remotely via SCADA or HMI systems?
Yes. When integrated with a Yaskawa MP-series machine controller and an appropriate network gateway, the servo’s operational data — including load ratio, alarm codes, encoder position, and temperature — can be published to SCADA platforms such as Ignition, WinCC, or Wonderware. Remote monitoring via OPC-UA or MQTT is also achievable through edge gateway integration.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this unit?
Every Yaskawa SGM-02U3B4L unit supplied by ZYPLC undergoes pre-shipment functional testing to verify encoder integrity, winding resistance, and mechanical rotation. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for same-week dispatch via DHL or FedEx with full export documentation.

—
