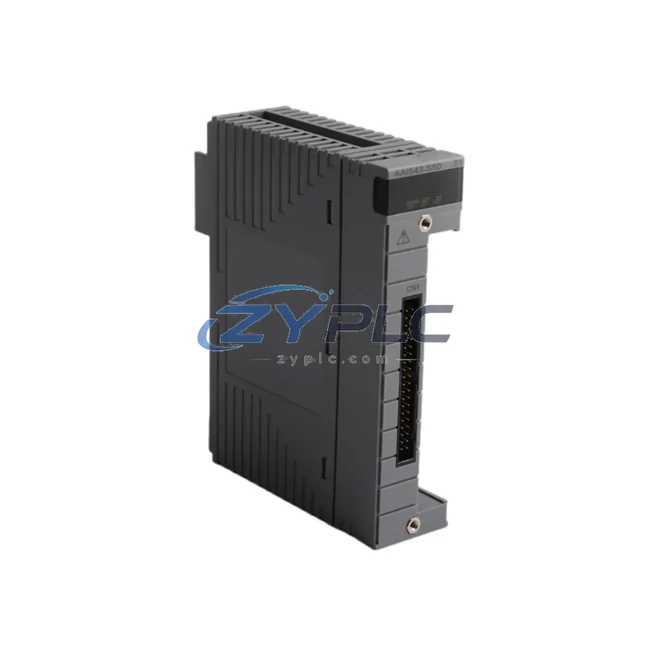

Yokogawa AAI543-S50/S1 Analog Output for AAI500

Yokogawa AAI543-S50/S1 Analog Output for AAI500

The Yokogawa AAI543-S50/S1 is a high-precision analog output module engineered for seamless integration within the AAI500 series distributed control system (DCS) architecture. Designed to operate as a critical node in the I/O layer of multi-tier industrial automation systems, this module delivers reliable 4–20 mA analog signal output to field-mounted actuators, control valves, variable frequency drives, and positioners. Its role within a layered control architecture extends far beyond simple signal conversion — it serves as the bridge between the control layer’s computational decisions and the physical execution layer’s mechanical responses, ensuring that process variables are maintained with precision across demanding industrial environments including petrochemical plants, power generation facilities, water treatment systems, metallurgical operations, and continuous manufacturing lines.

In a complete Yokogawa CENTUM VP or ProSafe-RS control system deployment, the AAI543-S50/S1 is typically installed within a field control station (FCS) node bus cabinet alongside complementary I/O modules such as the AAI141-S03/S1 analog input module, the ADV151-P50/S1 digital input module, and the ADO141-P50/S1 digital output module. These modules share a common node bus backplane, enabling high-speed, deterministic data exchange with the FCS processor unit. The processor — often a Yokogawa AFV10D or AFV30D field control unit — coordinates signal acquisition, control algorithm execution, and output command generation across all connected I/O modules simultaneously, maintaining scan cycle integrity even under high-load conditions.

The AAI543-S50/S1 supports Yokogawa’s BRAIN terminal and HART communication protocol, allowing field engineers to perform loop calibration, device diagnostics, and configuration adjustments without interrupting live process operations. This capability is particularly valuable in continuous process industries where unplanned shutdowns carry significant operational and financial consequences. When paired with a Yokogawa AIP588-S00 HART multiplexer or integrated through the Vnet/IP communication network, the module enables centralized asset management and predictive maintenance workflows from the engineering workstation level.

From a system architecture perspective, the AAI543-S50/S1 contributes directly to control loop redundancy strategies. In redundant I/O configurations, dual-module setups ensure that a single hardware failure does not interrupt output signal delivery to critical field devices. This redundancy is coordinated at the FCS level, where the Yokogawa AFV10D processor monitors module health status in real time and executes automatic switchover within milliseconds. The result is a control system architecture that meets the availability requirements of SIL 2 and SIL 3 safety instrumented systems when deployed in conjunction with ProSafe-RS safety controllers and associated I/O modules.

Power distribution within the control cabinet is managed through dedicated Yokogawa PW481 or PW482 power supply modules, which provide stable 24 VDC bus voltage to all I/O modules on the node bus. The AAI543-S50/S1 draws power directly from this bus, eliminating the need for external field power supplies for the module itself, while the 4–20 mA output loop power is sourced from the field instrument power distribution panel. This architecture simplifies cabinet wiring, reduces potential failure points, and improves overall system maintainability during scheduled turnarounds.

At the human-machine interface layer, process operators interact with the outputs controlled by the AAI543-S50/S1 through Yokogawa CENTUM VP operator stations or through third-party SCADA systems connected via OPC-UA or Modbus TCP gateways. The module’s output values are displayed in real time on process graphics, trend displays, and alarm management screens, giving operators full visibility into the status of every analog output channel. Engineering teams can access detailed module diagnostics, channel-level calibration data, and historical performance logs through the Yokogawa CENTUM VP engineering workstation, supporting both routine maintenance and root-cause analysis activities.

For system integrators and procurement engineers, the AAI543-S50/S1 is available as a direct replacement or expansion module for existing AAI500 series installations. Its compatibility with the standard Yokogawa node bus backplane means that installation requires no additional hardware adapters or firmware modifications — the module is recognized automatically by the FCS upon insertion, and channel configuration is applied through the CENTUM VP builder environment. This plug-and-configure capability significantly reduces commissioning time and minimizes the risk of configuration errors during system expansion or module replacement activities.

All units supplied by ZYPLC are sourced from verified industrial channels, subjected to functional testing prior to dispatch, and covered by a comprehensive warranty terms confirmed during quotation. Our inventory management system maintains buffer stock of high-demand Yokogawa I/O modules to support urgent project timelines and emergency replacement requirements. Technical pre-sales support is available to assist with compatibility verification, system architecture review, and quantity planning for both new installations and brownfield upgrade projects.

Product Specification Table

System Compatibility Notes

The AAI543-S50/S1 achieves its full operational value when deployed as part of a coordinated Yokogawa control system architecture. In a typical AAI500 series cabinet, the module occupies one or more node bus backplane slots alongside the AAI141-S03/S1 analog input module, which handles 4–20 mA and thermocouple signal acquisition from field transmitters. Digital I/O functions are managed by the ADV151-P50/S1 digital input module and the ADO141-P50/S1 digital output module, which handle discrete signals from limit switches, solenoid valves, and motor starters. The FCS processor — typically an AFV10D or AFV30D field control unit — executes PID control algorithms and function block logic, generating the output commands that the AAI543-S50/S1 translates into precise 4–20 mA signals for field actuators.

Power integrity across the node bus is maintained by Yokogawa PW481 or PW482 redundant power supply modules, which provide clean, regulated 24 VDC to all I/O modules in the cabinet. Communication between the FCS and the supervisory control layer is handled through the Vnet/IP high-speed control network, which connects field control stations to Yokogawa HIS operator stations and EWS engineering workstations. In safety-critical applications, the AAI543-S50/S1 may be deployed in parallel with ProSafe-RS safety I/O modules, with the safety controller providing independent output monitoring and override capability to satisfy functional safety requirements. Terminal modules and marshalling panels complete the field wiring interface, providing clearly labeled, individually fused connection points for each analog output channel.

Industrial Application Notes

In petrochemical and refinery applications, the AAI543-S50/S1 drives control valve positioners that regulate flow rates, pressures, and temperatures across distillation columns, heat exchangers, and reactor vessels. The module’s high output resolution and stable signal delivery are essential for maintaining tight process tolerances in continuous operations where even minor deviations can affect product quality or trigger safety system responses. In power generation facilities, the module controls turbine governor systems, boiler feedwater control valves, and combustion air dampers, where precise analog output is critical for load following and frequency regulation.

Water and wastewater treatment plants rely on the AAI543-S50/S1 to control chemical dosing pumps, aeration blower speed references, and sludge handling valve positions. The module’s HART communication capability allows operators to perform remote diagnostics on field-mounted smart actuators without requiring physical access to the instrument, which is particularly valuable in confined-space or hazardous-area installations. In metallurgical and mining operations, the module drives variable frequency drives on conveyor systems, crushers, and slurry pumps, providing smooth speed control and process optimization across high-power drive systems. Packaging and discrete manufacturing lines use the module to control servo amplifier reference inputs, tension control systems, and temperature zone outputs on extrusion and forming equipment.

Product Compatibility FAQ

Q1: Is the AAI543-S50/S1 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The AAI543-S50/S1 is designed for the AAI500 series node bus architecture, which is used across Yokogawa CENTUM VP and CENTUM CS 3000 platforms. Compatibility should be verified against the specific FCS model and system software version in your installation. ZYPLC’s technical team can assist with compatibility confirmation based on your system configuration documentation prior to purchase.

Q2: Can the AAI543-S50/S1 be installed in a redundant I/O configuration, and what is required?
Yes, the AAI500 series supports redundant I/O module configurations. Redundant operation requires a compatible node bus backplane with dual-slot I/O positions, a redundant FCS processor configuration, and appropriate system software settings in the CENTUM VP builder. In redundant mode, the standby module monitors the active module’s health and assumes output control automatically upon detection of a fault, with switchover times typically within one control scan cycle. ZYPLC can supply matched pairs of AAI543-S50/S1 modules for redundant installations.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available during the warranty period?
The warranty terms confirmed during quotation provided by ZYPLC covers hardware defects and functional failures under normal operating conditions from the date of dispatch. During the warranty period, ZYPLC provides replacement or repair of defective units, technical support for installation and commissioning issues, and assistance with compatibility and configuration questions. Warranty claims are processed through our technical support team at plc.sales@zyplc.com or by calling +86 19859288691. Units must be returned in original or equivalent protective packaging with a fault description for warranty assessment.
