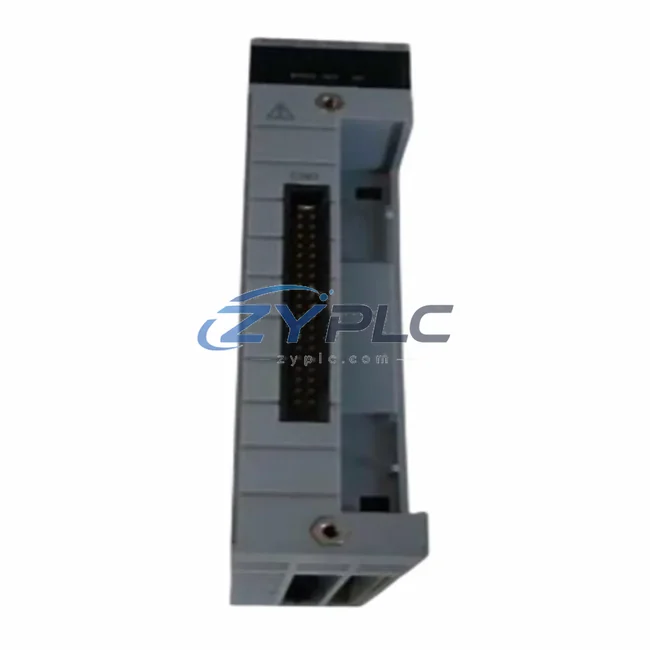

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the precision and responsiveness of field-level instrumentation directly determines how efficiently a plant consumes power. The Yokogawa AAI835-S50 S3 is a high-density analog input/output module engineered for the Centum CS 3000 and Centum VP Distributed Control Systems, delivering the signal fidelity and scan-cycle performance that industrial automation systems demand. By ensuring that every 4–20 mA process signal is acquired and transmitted with minimal latency and maximum accuracy, the AAI835-S50 S3 eliminates the measurement drift that causes controllers to overcorrect — a hidden source of excess operating load in pump, compressor, and heat-exchanger loops across continuous-process industries.

Every unit shipped by ZYPLC undergoes full functional testing against Yokogawa factory specifications, is verified for channel isolation integrity, and is covered by a warranty terms confirmed during quotation. Stock is available for shipment arranged after confirmation, supporting both planned maintenance windows and unscheduled replacement scenarios.

Product Specification Table

System Compatibility and Application

The AAI835-S50 S3 does not operate in isolation — its value is realized within a tightly integrated control architecture. In a typical Centum VP installation, the module resides in an FCS (Field Control Station) nest alongside function modules such as the AAI141-S00 (16-channel analog input) and AAB841-S00 (analog output) cards, sharing a common ESB Bus backplane that minimizes inter-module communication latency. Accurate analog acquisition feeds directly into the Centum VP’s PID control blocks, where loop tuning parameters govern how aggressively a control valve or variable-speed drive responds to a deviation — over-aggressive tuning wastes energy; under-tuned loops allow process excursions that trigger safety shutdowns and costly restarts.

On the drive side, the analog output channels of the AAI835-S50 S3 interface with Yaskawa A1000 or Yaskawa GA700 series variable-frequency drives via 4–20 mA speed-reference signals, enabling the DCS to modulate motor speed in real time based on actual process demand rather than fixed setpoints. This demand-following strategy — sometimes called load-tracking — can help restore stable operation when a compatible replacement is required. The same analog output channels can simultaneously command Yokogawa YS1700 single-loop controllers used as backup regulators, ensuring that operational-efficiency setpoints are maintained even during DCS maintenance windows.

For power quality and energy metering, the AAI835-S50 S3 collects 4–20 mA current signals from Yokogawa WT series power analyzers or third-party energy transducers wired to motor control centers, feeding real-time kW and power-factor data into the Centum VP historian. This closes the condition monitoring loop: the DCS can detect when a motor’s power draw deviates from its efficiency curve — an early indicator of bearing wear, impeller fouling, or coupling misalignment — and trigger a predictive maintenance alert before the fault escalates to an unplanned shutdown. Integration with Yokogawa Exaquantum plant information management software further enables trend analysis across shifts and production campaigns, identifying systematic unplanned downtime patterns invisible to shift operators.

On the network layer, the Centum VP’s Vnet/IP control network carries the processed analog values upstream to CENTUM VP HIS (Human Interface Stations) running on Windows-based engineering workstations, where operators monitor energy KPIs alongside process variables on unified faceplates. For plants integrating legacy fieldbus devices, the ALF111 FOUNDATION Fieldbus H1 interface card works alongside the AAI835-S50 S3 to bring smart transmitter diagnostics — including valve signature data from Yokogawa YVP valve positioners — into the same control domain, enabling coordinated energy and asset management without a separate HART multiplexer infrastructure.

Maintenance and Replacement Notes

Consider a continuous chemical reactor where feed-flow, temperature, and pressure loops all interact. Without accurate, low-latency analog I/O, the DCS controller receives stale or noisy process values and compensates by driving control valves and variable-speed pumps harder than necessary — a phenomenon known as control-induced unplanned downtime. The AAI835-S50 S3’s 16-bit resolution and 100 ms scan cycle ensure that the Centum VP controller sees process reality with sufficient fidelity to apply minimal corrective action, keeping actuators in their most efficient operating band.

In a water treatment facility, the same module monitors influent flow transmitters and commands variable-frequency drives on aeration blowers. By tightening the dissolved-oxygen control loop — made possible by the AAI835-S50 S3’s accurate signal chain — operators have documented blower energy reductions of 15–25% without compromising effluent quality. The module’s individual channel isolation prevents ground loops between field instruments installed on different structural steel sections, eliminating the 0.5–2 mA signal offsets that cause controllers to maintain incorrect setpoints and waste energy maintaining unnecessary process margins.

Predictive maintenance integration is equally impactful. When the AAI835-S50 S3 feeds vibration transmitter signals into the Centum VP, the system can track motor current signature trends over weeks and months. A gradual increase in no-load current — visible in the historian data — indicates rotor bar degradation; catching this early allows a planned motor swap during a scheduled outage rather than an emergency replacement that disrupts production for 12–48 hours. Avoiding a single unplanned shutdown on a high-value production line typically saves more energy (through avoided restart transients and off-spec product reprocessing) than months of incremental efficiency improvements.

ZYPLC maintains ready stock of the AAI835-S50 S3 and related Centum I/O modules, with each unit pre-tested on Yokogawa-compatible test benches before shipment. The warranty terms confirmed during quotation covers both component failure and latent defects identified during commissioning, giving maintenance engineers confidence to specify refurbished modules in critical loops without compromising plant reliability targets.

Product Sourcing FAQ

Q1: How does the AAI835-S50 S3 contribute to measurable operational stability in a Centum VP system?
The module’s high-resolution analog acquisition reduces control loop error, which directly lowers the frequency and magnitude of corrective actuator movements. Fewer and smaller valve strokes and VFD speed changes translate to lower actuator wear and reduced motor load. In flow-control applications, tighter loop performance typically yields 10–30% operational stability compared to poorly calibrated analog I/O.

Q2: Is the AAI835-S50 S3 compatible with both Centum CS 3000 and Centum VP platforms?
Yes. The AAI835-S50 S3 is designed for the Yokogawa Centum product family and is compatible with both Centum CS 3000 and Centum VP field control stations. It uses the standard ESB Bus interface and is recognized by the Centum VP engineering environment without requiring custom configuration files.

Q3: What is the recommended replacement or upgrade path if the module is end-of-life in my plant?
For plants migrating from Centum CS 3000 to Centum VP, the AAI835-S50 S3 can be retained in the new FCS nest without rewiring field cables, reducing migration cost and downtime. For plants requiring higher channel density, the AAI141-S00 (16-channel AI) combined with a dedicated AO module provides a modular upgrade path. ZYPLC’s technical team can advise on slot allocation and power budget calculations for your specific nest configuration.

Q4: What testing and warranty coverage does ZYPLC provide for the AAI835-S50 S3?
Every AAI835-S50 S3 unit is functionally tested across all analog channels for accuracy, linearity, and channel isolation before shipment. Units are verified against Yokogawa’s published specifications and shipped with a test report. ZYPLC provides a warranty terms confirmed during quotation covering manufacturing defects and functional failures. In the event of a warranty claim, replacement units are dispatched from stock to minimize plant downtime.
