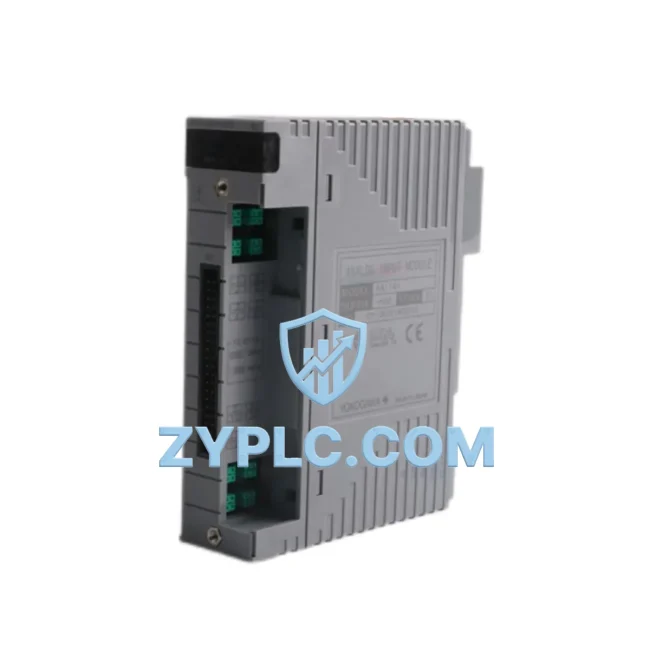

Yokogawa ADV159-P01 Industrial Network Interface for CENTUM VP Systems

Yokogawa ADV159-P01 Industrial Network Interface for CENTUM VP Systems: Precision Digital I/O for Smart Factory Data Links

The Yokogawa ADV159-P01 is a high-performance Digital I/O Module engineered for seamless integration within the CENTUM VP Distributed Control System (DCS) architecture. Designed to serve as a critical node in industrial data networks, the ADV159-P01 bridges field-level devices — including sensors, actuators, and remote I/O stations — with upper-level control and monitoring systems such as SCADA platforms, HMI consoles, and MES layers. In smart factory environments where data continuity and real-time responsiveness are non-negotiable, this module delivers the connectivity backbone that modern industrial operations demand.

From signal acquisition at the field device level through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics, the ADV159-P01 participates in every critical link of the industrial data chain. Its role within the CENTUM VP ecosystem ensures that digital I/O signals are accurately captured, reliably transmitted, and instantly available to operators and automated control loops alike.

Network Communication Table

Connected Automation Data Flow

In a fully integrated CENTUM VP control architecture, the ADV159-P01 operates as the digital signal gateway between the physical process and the control intelligence layer. Field-mounted sensors — including pressure transmitters, flow switches, and proximity detectors — feed discrete digital signals into the ADV159-P01’s input channels. These signals are then processed within the CENTUM VP Field Control Station (FCS), where control logic executes in real time.

Within the same control cabinet, the ADV159-P01 works alongside analog I/O modules such as the AAI143-S00 and AAI841-S03, sharing the ESB bus to deliver a unified I/O data stream to the FCS processor. For installations requiring extended reach, the module integrates with Yokogawa Remote I/O (RIO) units over the ESB Bus, enabling distributed signal collection across large plant footprints without sacrificing scan cycle integrity.

At the network layer, the CENTUM VP system leverages Vnet/IP — Yokogawa’s high-speed, fault-tolerant control network — to transmit real-time process data from the FCS to operator stations running CENTUM VP HIS (Human Interface Station). Operators gain live visibility into digital I/O states, enabling rapid response to process deviations. For plants operating multi-vendor environments, a Yokogawa ALE111 Ethernet Communication Module or an ALR121 FOUNDATION Fieldbus H1 Card can be deployed alongside the ADV159-P01 to bridge CENTUM VP data into broader OPC-UA or Modbus TCP networks, feeding upstream SCADA systems such as Yokogawa’s own FAST/TOOLS or third-party platforms.

Variable-speed drives and motor controllers on the plant floor receive digital command outputs directly from the ADV159-P01’s DO channels, closing the loop between the DCS control logic and physical actuators. Meanwhile, safety-critical signals can be routed through Yokogawa ProSafe-RS Safety Instrumented System modules, which communicate with the CENTUM VP via dedicated safety bus interfaces, ensuring that the ADV159-P01’s digital outputs remain within validated safe states during abnormal conditions.

For edge computing and IIoT integration, plant engineers increasingly deploy Yokogawa OpreX Field Device Advisor or compatible edge gateways alongside the CENTUM VP infrastructure. These devices aggregate digital I/O data from modules like the ADV159-P01 and publish it to cloud-based analytics platforms, enabling predictive maintenance, KPI dashboards, and remote asset health monitoring without disrupting the deterministic control loop.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial facilities is protocol fragmentation — where PLCs, DCS controllers, remote I/O units, and HMI systems speak different communication languages, creating data silos that prevent plant-wide transparency. The Yokogawa ADV159-P01, as part of the CENTUM VP platform, directly addresses this challenge by providing a standardized digital I/O interface that integrates natively with Yokogawa’s Vnet/IP control network while supporting gateway-based connectivity to Modbus, OPC-UA, and FOUNDATION Fieldbus environments.

For facilities transitioning from older DCS generations or integrating third-party PLC systems, the ADV159-P01 enables a phased modernization approach: existing field wiring can be terminated directly to the module’s I/O terminals, preserving capital investment in field instrumentation while upgrading the control and communication layer. This eliminates the need for costly full-plant rewiring and reduces migration risk.

Remote monitoring and diagnostics are equally critical in geographically distributed or hazardous-area installations. The CENTUM VP platform’s built-in diagnostic capabilities — accessible through the HIS operator station and extended via FAST/TOOLS SCADA — allow maintenance engineers to monitor the health of ADV159-P01 channels remotely, identify open-circuit or short-circuit faults, and generate alarm notifications without dispatching field personnel. This capability directly reduces mean time to repair (MTTR) and supports continuous production uptime.

Production line transparency — the ability to see real-time digital I/O states across every machine and process unit — is a foundational requirement for lean manufacturing and OEE (Overall Equipment Effectiveness) improvement programs. By ensuring that every digital signal from field devices is accurately captured and made available to SCADA, MES, and analytics layers, the ADV159-P01 contributes to the data infrastructure that makes production transparency achievable. System expansion is equally straightforward: additional ADV159-P01 modules can be added to existing CENTUM VP FCS nodes as production capacity grows, with no changes required to the upper-level control or SCADA configuration.

Every ADV159-P01 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify channel integrity, communication bus connectivity, and firmware version compliance. All units are covered by a 12-month warranty, with in-stock availability ensuring rapid delivery to support planned maintenance shutdowns and emergency replacement scenarios.

Industrial Connectivity FAQ

Q1: What communication protocols does the Yokogawa ADV159-P01 support in a CENTUM VP system?
The ADV159-P01 communicates natively over the CENTUM VP ESB Bus and Vnet/IP control network. For integration with external systems, protocol gateways such as the Yokogawa ALE111 Ethernet module enable Modbus TCP and OPC-UA connectivity, allowing the module’s digital I/O data to be consumed by third-party SCADA, HMI, and MES platforms.

Q2: How does the ADV159-P01 ensure network stability and deterministic data transmission?
As part of the CENTUM VP architecture, the ADV159-P01 operates on a deterministic scan cycle managed by the Field Control Station (FCS). Vnet/IP’s dual-redundant ring topology provides fault-tolerant network transmission, ensuring that digital I/O data reaches operator stations and control loops without interruption even in the event of a single network path failure.

Q3: Can the ADV159-P01 be integrated into an existing multi-vendor plant network alongside third-party PLCs or SCADA systems?
Yes. While the ADV159-P01 is native to the CENTUM VP DCS, Yokogawa’s open communication architecture supports integration with third-party systems via OPC-UA, Modbus TCP, and FOUNDATION Fieldbus gateways. This makes it suitable for hybrid automation environments where CENTUM VP coexists with Siemens, Rockwell, or Mitsubishi PLC platforms.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every ADV159-P01 unit supplied by ZYPLC is functionally tested prior to shipment, covering digital input/output channel verification, ESB bus communication integrity, and firmware version validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement support is available for critical production environments.
