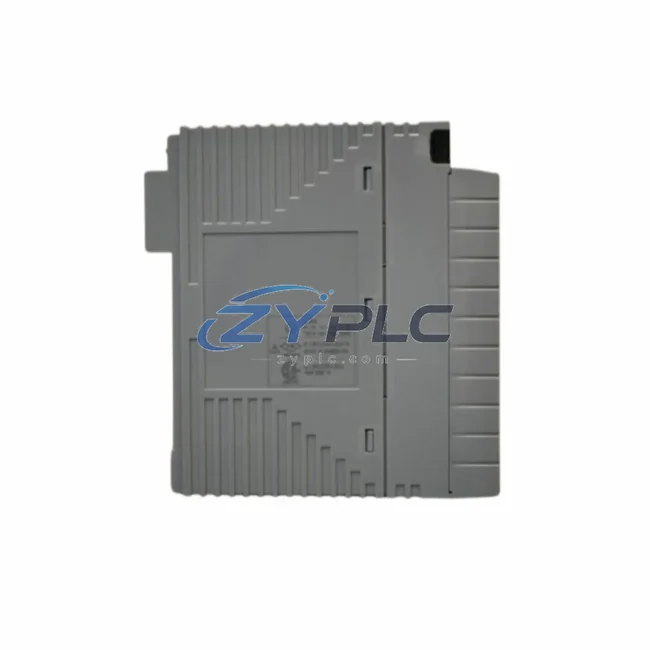

Yokogawa ADV551-P03 S2 Digital Output for ProSafe-RS

Yokogawa ADV551-P03 S2 Digital Output for ProSafe-RS

The Yokogawa ADV551-P03 S2 is a safety-rated digital output module engineered for deployment within the ProSafe-RS Safety Instrumented System (SIS) platform. Designed to meet IEC 61508 SIL 2/3 requirements, this module occupies a critical position in the output layer of a layered automation architecture — translating validated safety logic from the safety CPU into reliable field-level actuator commands. Whether integrated into a new greenfield SIS installation or used as a replacement component in an existing ProSafe-RS rack, the ADV551-P03 S2 delivers the signal integrity, diagnostic coverage, and architectural consistency that safety-critical industries demand.

In a complete ProSafe-RS control system, the ADV551-P03 S2 does not operate in isolation. It functions as part of a tightly coordinated I/O layer that interfaces directly with the safety CPU module — such as the SSC60D or SSC57D — which executes the safety application logic and manages the module’s output states through the internal backplane bus. The module’s output channels are wired to field actuators including solenoid valves, motor starters, and shutdown relays, making it the final execution point in the safety logic chain. Its channel-level diagnostics continuously verify output circuit integrity, reporting faults upstream to the CPU and ultimately to the engineering workstation via the ProSafe-RS engineering environment.

System architects integrating the ADV551-P03 S2 benefit from its compatibility with the ProSafe-RS standard I/O chassis and expansion racks, enabling scalable system design without compromising safety certification. The module slots into the same backplane infrastructure used by complementary I/O modules such as the ADV151-P03 digital input module and the AAV141-S analog input module, allowing engineers to build mixed I/O configurations within a single rack. Power distribution to the I/O rack is managed by dedicated power supply units such as the PW481 or PW482, which provide redundant power paths to ensure continuous module operation even during single power supply failures.

Product Specification Table

System Compatibility Notes

A well-engineered ProSafe-RS system is built around the principle of architectural coherence — every module, from the safety CPU to the terminal block, must be selected and configured to work as a unified system. The ADV551-P03 S2 sits at the intersection of the logic layer and the execution layer, making its compatibility with surrounding components essential to overall system reliability.

At the control layer, the SSC60D or SSC57D safety CPU module executes the safety application program and manages all I/O module states via the ProSafe-RS backplane. The CPU communicates with the engineering workstation through the Vnet/IP communication network, Yokogawa’s proprietary high-speed deterministic Ethernet-based control network, which also links the ProSafe-RS system to the CENTUM VP distributed control system (DCS) for integrated plant-wide supervision. This integration allows operators to monitor safety system status from the CENTUM VP HIS (Human Interface Station) without requiring separate operator terminals for the SIS.

On the I/O layer, the ADV551-P03 S2 works alongside digital input modules such as the ADV151-P03 and analog I/O modules such as the AAV141-S and AAV542-S, all mounted within the same ProSafe-RS I/O chassis. For applications requiring redundant I/O, the ProSafe-RS architecture supports dual-redundant I/O module configurations, where two ADV551-P03 S2 modules can be paired in a 1oo2 or 2oo2 voting configuration to eliminate single points of failure in the output path. This redundancy architecture is particularly important in high-demand safety applications such as emergency shutdown (ESD) systems and burner management systems (BMS).

Power integrity is maintained by the PW481 or PW482 redundant power supply modules, which feed the I/O rack backplane and ensure that output module operation is not interrupted by a single power supply fault. Field wiring from the ADV551-P03 S2 output channels connects to terminal assemblies and marshalling panels, where signal cables are routed to solenoid valve banks, motor control centers, and safety relay panels in the field. Proper grounding and cable segregation at the marshalling level are essential to maintaining the module’s diagnostic accuracy and preventing spurious output activations.

Industrial Application Notes

The ADV551-P03 S2 is deployed across a wide range of safety-critical industries where process shutdown integrity is non-negotiable. In oil and gas processing facilities, the module drives solenoid valves on high-integrity pressure protection systems (HIPPS) and emergency isolation valve (EIV) actuators, executing shutdown commands within the required response time defined by the safety requirements specification (SRS). In LNG terminals and petrochemical complexes, it interfaces with fire and gas detection systems to trigger deluge valves and ventilation dampers upon confirmed hazard detection.

In power generation plants — including coal-fired, gas turbine, and nuclear auxiliary systems — the ADV551-P03 S2 controls turbine trip relays and boiler safety shutdown actuators, where output response time and diagnostic coverage directly affect plant availability and personnel safety. In water and wastewater treatment facilities, the module manages pump shutdown sequences and chemical dosing valve controls within SIL-rated process safety systems.

Mining and metallurgical operations use the ADV551-P03 S2 in conveyor emergency stop systems, crusher protection interlocks, and furnace safety shutdown circuits, where the module’s robust output diagnostics help maintenance teams identify field wiring faults before they escalate into unplanned shutdowns. In pharmaceutical and fine chemical manufacturing, the module supports batch reactor safety systems, controlling vent valves and quench systems in compliance with process safety management (PSM) regulations.

Across all these applications, the ADV551-P03 S2 contributes to long-term system maintainability by providing clear fault diagnostics that reduce mean time to repair (MTTR) and support predictive maintenance programs. Its compatibility with the ProSafe-RS engineering environment allows technicians to perform online diagnostics, channel-level testing, and configuration verification without taking the safety system offline, minimizing production impact during scheduled maintenance windows.

Product Compatibility FAQ

Q1: Is the ADV551-P03 S2 compatible with both new ProSafe-RS installations and existing legacy ProSafe-RS systems?
Yes. The ADV551-P03 S2 is designed for full compatibility with the ProSafe-RS platform across its supported hardware generations. It can be installed in existing ProSafe-RS I/O racks alongside other certified modules without requiring system-wide reconfiguration, provided the safety CPU firmware version supports the module type. Engineers should verify module compatibility against the ProSafe-RS hardware compatibility matrix and confirm that the engineering environment (ProSafe-RS Engineering) is updated to recognize the S2 hardware revision before commissioning.

Q2: Can the ADV551-P03 S2 be used in a redundant output configuration, and what architectural requirements apply?
Yes. The ProSafe-RS architecture supports redundant digital output configurations using paired ADV551-P03 S2 modules in designated redundant I/O slots. The redundancy configuration — whether 1oo2 or 2oo2 — must be defined in the safety application logic and validated during the Factory Acceptance Test (FAT). The redundant pair shares field wiring through a dedicated output relay or voting module, and both modules must be installed in the same I/O chassis to share the backplane communication path. Redundant power supply modules (PW481/PW482) are strongly recommended in redundant output architectures to eliminate power as a common cause failure.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the ADV551-P03 S2?
ZYPLC’s warranty terms confirmed during quotation covers the ADV551-P03 S2 against manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails within the warranty period, ZYPLC will provide a replacement unit or repair service at no additional cost. For long-term spare parts planning, ZYPLC maintains dedicated inventory of ProSafe-RS I/O modules to support customers with multi-year maintenance contracts and lifecycle extension programs for aging SIS installations. Customers are encouraged to contact our technical team at plc.sales@zyplc.com or +86 19859288691 to discuss volume procurement, consignment stock arrangements, and expedited delivery options for critical shutdown system maintenance.
