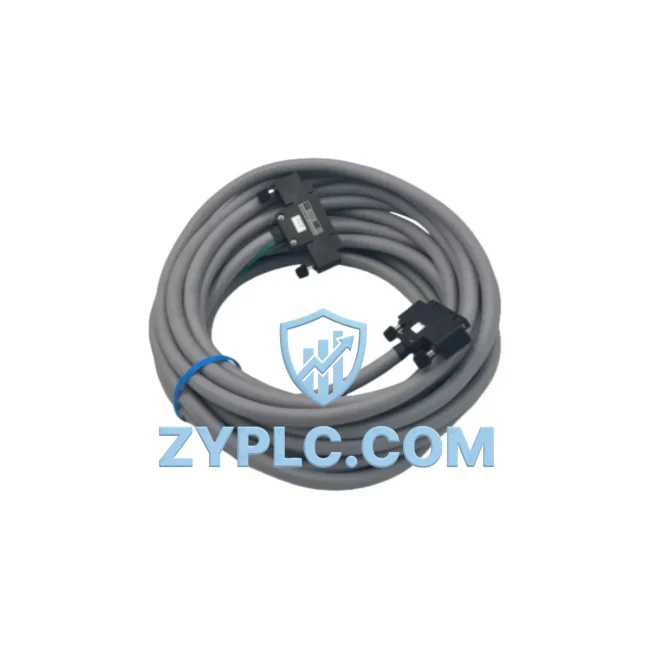

Yokogawa AKB337 Industrial Signal Cable for CS3000 Centum Systems

Yokogawa AKB337 Industrial Signal Cable: Backbone of Smart Factory Data Links

The Yokogawa AKB337 is a precision-engineered industrial signal cable purpose-built for the CS3000 and Centum VP Distributed Control System (DCS) platforms. In modern smart manufacturing environments, reliable signal transmission between field instruments and control layers is not optional — it is the foundation upon which real-time process visibility, automated control, and remote diagnostics are built. The AKB337 fulfills this role with consistent electrical performance, robust shielding, and full compatibility with Yokogawa’s proprietary communication architecture.

From the moment a field sensor detects a process variable — whether temperature, pressure, flow, or level — the integrity of that signal as it travels through the cable infrastructure determines the accuracy of every downstream decision. The AKB337 is designed to carry those signals without degradation across the distances typical of large-scale process plants, ensuring that the Centum VP controller receives clean, noise-free data for closed-loop control execution.

Network Communication Table

Connected Automation Data Flow

In a fully integrated Yokogawa DCS architecture, the AKB337 signal cable serves as the physical medium connecting the lowest layer of the automation pyramid — field instruments — to the intelligence layer of the control system. Consider a typical process loop: a Yokogawa EJA110E differential pressure transmitter outputs a 4–20 mA HART signal that travels through the AKB337 cable to a Yokogawa AAI141 analog input module housed within the CS3000 field control station. The AAI141 digitizes the signal and passes it over the ESB Bus to the Centum VP field control unit (FCU), where the process value is used in PID control calculations.

Simultaneously, HART communication riding on the same 4–20 mA loop — carried faithfully by the AKB337’s shielded conductors — allows the Yokogawa FieldMate device management tool to interrogate the EJA110E for diagnostics, calibration data, and device health status without interrupting the live process signal. This dual-purpose signal path — control data and device communication on a single cable pair — is only possible when the cable itself maintains the electrical characteristics required by the HART protocol specification.

Further upstream, the digitized process values flow from the FCU through the Vnet/IP control network — Yokogawa’s high-speed, deterministic Ethernet-based system bus — to the Centum VP HIS (Human Interface Station), where operators monitor trends, acknowledge alarms, and issue setpoint changes in real time. The Exaopc OPC server bridges the Centum VP domain to third-party SCADA platforms and MES systems, enabling plant-wide data integration. Remote I/O nodes using Yokogawa RIO modules extend the reach of the CS3000 system to distant field junction boxes, with the AKB337 providing the last-mile wiring between the RIO terminal block and the field device.

In drive and motor control applications, signal cables of the AKB337 class connect Yokogawa-compatible variable frequency drives and motor control centers to the DCS I/O layer, enabling speed feedback, fault status, and run/stop commands to flow bidirectionally. For safety-instrumented systems running alongside the DCS, the AKB337 supports wiring to Yokogawa ProSafe-RS safety I/O modules, maintaining signal separation and shielding integrity required by IEC 61511 functional safety standards.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is the coexistence of legacy wiring infrastructure with modern DCS platforms. When a plant upgrades from an older Yokogawa CENTUM-XL or CENTUM CS system to the current Centum VP generation, signal cable compatibility becomes a critical migration concern. The AKB337 is engineered to bridge this gap — its electrical specifications align with both legacy marshalling panel designs and the new FIO (Field I/O) architecture introduced in Centum VP, reducing the need for complete field rewiring during system upgrades.

Data isolation — where field device signals fail to reach the control system due to cable degradation, improper shielding, or connector incompatibility — is a root cause of unplanned downtime and false alarms in process plants. The AKB337’s multi-layer shielding design suppresses electromagnetic interference from variable frequency drives, high-voltage power cables, and radio-frequency sources that are common in industrial environments. This shielding directly improves signal-to-noise ratio at the analog input module, reducing measurement error and preventing nuisance trips in the safety system.

For remote monitoring and predictive maintenance programs, the quality of the physical signal path determines the effectiveness of digital tools. When the AKB337 delivers clean HART signals to the I/O module, the Yokogawa PRM (Plant Resource Manager) can continuously poll field devices for diagnostic parameters — valve signature data, sensor drift indicators, and loop integrity checks — without requiring technicians to physically access the field. This capability is central to the transition from time-based maintenance to condition-based maintenance strategies in smart factories.

System expansion is equally simplified when standardized, compatible signal cables are used throughout the plant. Adding new measurement points to an existing CS3000 or Centum VP system requires only that the new field wiring match the electrical and mechanical specifications of the installed cable base. The AKB337 ensures that new I/O cards, remote I/O nodes, and field instruments can be integrated without signal integrity compromises, supporting phased capacity expansions without process shutdowns.

Every AKB337 unit supplied by ZYPLC undergoes pre-shipment inspection to verify continuity, insulation resistance, and shield integrity. Stock is maintained for rapid dispatch, and all units are covered by a 12-month warranty against manufacturing defects.

Industrial Connectivity FAQ

Q1: Is the Yokogawa AKB337 compatible with both CS3000 and Centum VP systems?
Yes. The AKB337 is designed for use across the Yokogawa CS3000 and Centum VP DCS platforms. Its electrical specifications are consistent with the field wiring requirements of both systems, including compatibility with AAI, AAT, and ALR series analog I/O modules and the FIO remote I/O architecture used in Centum VP.

Q2: Does the AKB337 support HART communication alongside the 4–20 mA process signal?
Yes. The AKB337’s shielded conductor pairs maintain the electrical characteristics — capacitance, impedance, and noise rejection — required for simultaneous HART digital communication superimposed on the 4–20 mA analog signal. This enables device diagnostics and configuration via FieldMate or PRM without signal interruption.

Q3: What is the lead time and warranty coverage for the AKB337?
ZYPLC maintains ready stock of the AKB337 for immediate shipment. Standard lead time is 3–7 business days for international orders. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship.

Q4: Can the AKB337 be used in safety-instrumented system (SIS) wiring applications?
The AKB337 is suitable for field wiring in environments where signal integrity and shielding performance are critical, including wiring to Yokogawa ProSafe-RS safety I/O modules. For SIS applications, installers should verify that cable routing, separation distances, and termination practices comply with IEC 61511 and site-specific safety requirements.
