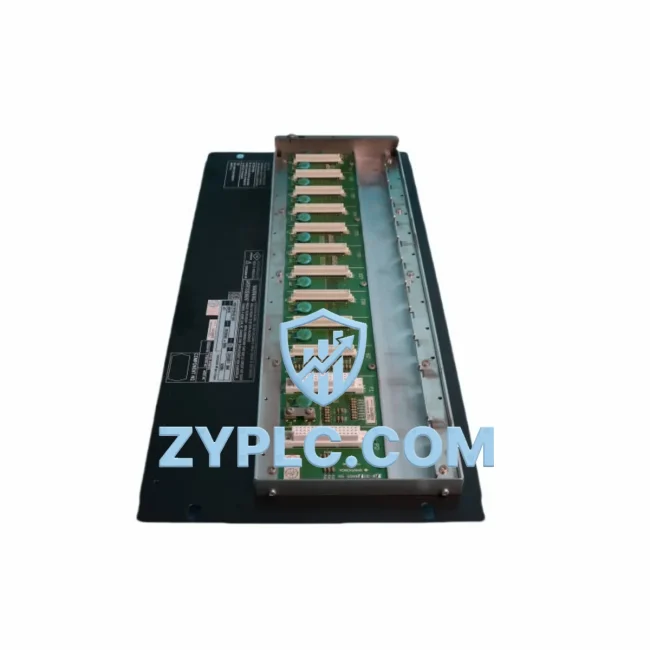

Yokogawa ANB10D-421 S1 Industrial Network Interface for Centum VP Systems

Yokogawa ANB10D-421 S1: ESB Bus Node Unit for Industrial Data Link in Centum VP DCS Architecture

In modern distributed control systems, the integrity of the communication backbone determines the reliability of the entire automation infrastructure. The Yokogawa ANB10D-421 S1 ESB Bus Node Unit is a precision-engineered network interface component designed to serve as a critical junction within the Centum VP DCS platform — one of the most widely deployed process control systems in the oil & gas, petrochemical, power generation, and advanced manufacturing sectors. This unit enables seamless ESB (Enhanced Signal Bus) protocol communication between field-level I/O modules, controller stations, and supervisory systems, forming the connective tissue of a high-availability, real-time control network.

Unlike generic communication gateways, the ANB10D-421 S1 is purpose-built for the Centum VP architecture, ensuring deterministic data transmission, minimal latency, and full compatibility with Yokogawa’s proprietary ESB protocol stack. Its role in the control hierarchy spans from the I/O layer upward to the controller and SCADA integration layer, making it indispensable for engineers designing or maintaining large-scale process automation systems.

Network Communication Table

Connected Automation Data Flow

The ANB10D-421 S1 operates at the intersection of field instrumentation and supervisory control, enabling a structured, layered data flow that is essential for intelligent factory operation. In a typical Centum VP deployment, field transmitters — including pressure, temperature, and flow sensors — feed analog and digital signals into Yokogawa AAI141-S00 analog input modules and ADV151-P00 digital input modules mounted on I/O nest assemblies. These I/O modules communicate upstream through the ESB bus, with the ANB10D-421 S1 acting as the node unit that aggregates and routes this data to the Yokogawa AFV10D Field Control Station (FCS).

Within the FCS, the CP461-50 Central Processing Unit executes control logic — PID loops, cascade control, feedforward strategies — and issues output commands back through the ESB bus to actuator-side modules such as the AAO141-S00 analog output module, which drives control valves and positioners. This bidirectional, real-time data exchange is only possible because the ANB10D-421 S1 maintains bus integrity, handles node addressing, and ensures that cyclic data updates arrive within the deterministic scan cycle of the FCS.

At the supervisory layer, the Centum VP HIS (Human Interface Station) — typically running on a dedicated engineering workstation — receives process data via the Vnet/IP Ethernet backbone, which connects multiple FCS units and the HIS into a unified control domain. For sites requiring SCADA integration or historian connectivity, the Yokogawa Exaquantum PIMS server subscribes to real-time and historical data from the Centum VP domain, enabling KPI dashboards, alarm analytics, and regulatory reporting. The ANB10D-421 S1 ensures that the field-level data feeding this entire chain is accurate, timely, and free from bus contention or node conflicts.

In redundant system configurations — common in critical process industries — the ANB10D-421 S1 supports dual-redundant ESB bus topologies alongside redundant ANB10D-427/S2/ESB bus node units and redundant FCS controllers. This architecture guarantees that a single point of failure at the bus node level does not interrupt process control, satisfying the availability requirements of SIL-rated and high-uptime production environments. The Yokogawa AIP588-50 power supply module provides stable DC power to the I/O nest, while the ANT1A node terminator ensures proper bus impedance matching at each ESB segment end, preventing signal reflection and maintaining communication fidelity across long cable runs.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process data efficiently. The ANB10D-421 S1 directly addresses this challenge within the Centum VP ecosystem by providing a standardized, high-integrity ESB bus interface that eliminates proprietary bottlenecks between I/O nests and controller stations.

In facilities where older Centum CS 3000 systems are being migrated to Centum VP, the ANB10D-421 S1 plays a key role in the phased upgrade strategy. Its compatibility with the Centum VP FCS architecture allows engineers to retain existing field wiring and I/O modules while upgrading the controller and bus node infrastructure, significantly reducing migration cost and downtime. This contextual integration capability — the ability to fit into an existing system architecture without requiring a full greenfield replacement — is one of the defining values of the ANB10D-421 S1 in real-world engineering projects.

For sites struggling with remote monitoring gaps, the ANB10D-421 S1 enables transparent data flow from field sensors all the way to cloud-connected SCADA platforms. When paired with Yokogawa’s OPC-UA gateway modules or third-party edge computing devices, the ESB bus data becomes accessible to MES (Manufacturing Execution Systems) and ERP platforms, enabling production transparency, predictive maintenance scheduling, and energy consumption analytics. This transforms isolated process data into actionable intelligence across the enterprise.

System expansion is another area where the ANB10D-421 S1 delivers long-term value. As production lines grow or process requirements evolve, additional I/O nests can be added to the ESB bus segment managed by the ANB10D-421 S1, without requiring controller replacement or network reconfiguration. This modular scalability is a cornerstone of the Centum VP design philosophy and is fully supported by the bus node architecture that the ANB10D-421 S1 represents.

Industrial Connectivity FAQ

Q1: Is the ANB10D-421 S1 compatible with both Centum VP and Centum CS 3000 systems?
The ANB10D-421 S1 is specifically designed for the Centum VP platform and its ESB bus architecture. While Centum CS 3000 also uses ESB-based communication, direct cross-platform compatibility should be verified against the specific FCS model and firmware version in your installation. Our technical team can assist with compatibility assessment prior to procurement.

Q2: What is the maximum number of I/O modules that can be connected per ANB10D-421 S1 bus node?
The ESB bus segment managed by the ANB10D-421 S1 supports connection to multiple I/O nest assemblies, with the exact node count determined by the FCS configuration and ESB bus segment length. Yokogawa’s system engineering guidelines specify maximum node counts per segment to ensure deterministic communication performance. Contact our engineering support team for site-specific configuration guidance.

Q3: How does the 12-Month Warranty apply to the ANB10D-421 S1?
Every ANB10D-421 S1 unit supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing and visual inspection to verify communication integrity, connector condition, and firmware operability. Warranty coverage includes replacement or repair for verified manufacturing defects and functional failures under normal operating conditions.

Q4: Can the ANB10D-421 S1 be used in a redundant ESB bus configuration?
Yes. The Centum VP architecture supports dual-redundant ESB bus topologies, and the ANB10D-421 S1 is compatible with redundant bus node configurations. In redundant deployments, a secondary bus node unit operates in standby mode and assumes bus management responsibilities automatically in the event of a primary node failure, ensuring uninterrupted I/O communication and process control continuity.
