Yokogawa ANB10D-S1 Industrial Network Interface for CENTUM Systems

Yokogawa ANB10D-S1 Industrial Network Interface for CENTUM Systems: Bridging the Industrial Data Link

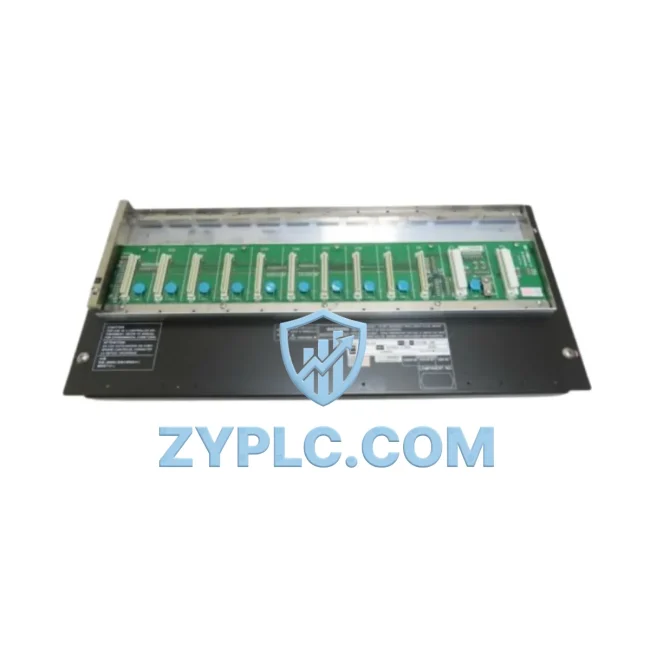

The Yokogawa ANB10D-S1 is a high-performance Node Interface Unit engineered to serve as the critical communication backbone within Yokogawa’s CENTUM VP and CENTUM CS Distributed Control System (DCS) architectures. Designed for demanding industrial environments, the ANB10D-S1 enables seamless Fieldbus protocol communication between field devices, process controllers, and supervisory systems — eliminating data silos and delivering the real-time visibility that modern smart factories demand.

In today’s industrial landscape, the ability to move process data reliably from sensors and actuators through PLCs and remote I/O modules up to SCADA and HMI platforms is not optional — it is the foundation of operational excellence. The ANB10D-S1 fulfills this role by acting as a dedicated node interface that manages signal acquisition, protocol conversion, and network transmission with deterministic timing and high fault tolerance. Whether deployed in oil and gas, chemical processing, power generation, or advanced manufacturing, this unit ensures that every data point — from pressure transmitters and flow meters to variable frequency drives and safety controllers — reaches the control layer without latency or packet loss.

Every ANB10D-S1 unit supplied by ZYPLC is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify communication integrity, protocol handshake, and hardware reliability before dispatch.

Network Communication Table

Connected Automation Data Flow

The ANB10D-S1 sits at the intersection of field instrumentation and process control, orchestrating data flow across multiple layers of the automation hierarchy. At the field level, process signals originate from instruments such as Yokogawa EJA-series differential pressure transmitters and ADMAG AXF magnetic flowmeters. These devices communicate via Foundation Fieldbus or HART protocol, feeding live process values — flow rate, pressure, temperature, level — into the node bus managed by the ANB10D-S1.

Within the CENTUM VP control domain, the ANB10D-S1 interfaces directly with Yokogawa’s ACF11 Field Control Station and AFV10S Vnet/IP Interface Module, ensuring that field data is accurately mapped to controller memory and made available for real-time PID loop execution, interlock logic, and sequence control. The Vnet/IP control network — Yokogawa’s proprietary high-speed Ethernet-based control bus — carries this data at deterministic intervals, preventing the jitter and packet collision issues that plague standard industrial Ethernet in high-density I/O environments.

For remote I/O expansion, the ANB10D-S1 works in conjunction with Yokogawa NX-series Remote I/O modules and AMN11 Node Interface Units, extending the control network to geographically distributed process areas without requiring additional controller hardware. This architecture is particularly valuable in large-scale plants where field junction boxes may be hundreds of meters from the central control room.

At the supervisory layer, process data aggregated through the ANB10D-S1 is made available to Yokogawa FAST/TOOLS SCADA and Exaopc OPC Server, enabling operators to monitor KPIs, trend historical data, and configure alarm thresholds from centralized HMI workstations. Integration with third-party SCADA platforms — including Wonderware System Platform and Ignition by Inductive Automation — is supported via OPC DA/UA bridging through the Exaopc interface layer.

Variable frequency drives such as the Yokogawa VSDX-series inverters and third-party drives from ABB and Siemens can be integrated into the same control network segment, with the ANB10D-S1 facilitating protocol translation between drive-native communication interfaces and the CENTUM control bus. This enables closed-loop speed control, energy monitoring, and predictive maintenance data collection from rotating equipment — all within a single unified network architecture.

Edge computing nodes and industrial IoT gateways connected downstream of the ANB10D-S1 can further process and forward data to cloud-based MES and ERP platforms, completing the digital thread from sensor to enterprise system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A typical process plant may operate legacy HART instruments alongside modern Foundation Fieldbus devices, Modbus RTU PLCs, and Profibus DP remote I/O — each speaking a different protocol, each creating a data island that resists integration.

The Yokogawa ANB10D-S1 addresses this challenge by providing a standardized node interface that abstracts protocol complexity at the field level. Rather than requiring individual protocol converters for each device type, the ANB10D-S1 consolidates field communication into the CENTUM node bus, presenting a unified data model to the control layer. This dramatically reduces engineering effort during system commissioning and simplifies ongoing maintenance.

For plants undergoing digital transformation, the ANB10D-S1 enables production line transparency by making previously inaccessible field data available to SCADA historians and analytics platforms. Operators gain visibility into equipment health, process efficiency, and alarm frequency — data that was previously locked inside standalone controllers or paper-based logs.

Remote diagnostics capability is another key advantage. Through the CENTUM VP system’s built-in diagnostic tools, maintenance engineers can interrogate the ANB10D-S1 and connected field devices from the control room or via secure remote access, identifying communication faults, device failures, and network degradation without dispatching technicians to the field. This reduces mean time to repair (MTTR) and minimizes unplanned downtime.

System scalability is preserved through the modular architecture of the CENTUM platform. Additional ANB10D-S1 units can be added to expand node capacity as the plant grows, without disrupting existing control loops or requiring network reconfiguration. This future-proof design protects capital investment and supports phased expansion strategies.

All units are pre-tested at ZYPLC’s facility prior to shipment, with communication verification performed against CENTUM-compatible test benches. Stock availability is maintained for rapid fulfillment, with global express shipping via DHL and FedEx ensuring delivery timelines that support urgent maintenance and project schedules.

Industrial Connectivity FAQ

Q1: What communication protocols does the Yokogawa ANB10D-S1 support?
The ANB10D-S1 is designed for use within Yokogawa’s CENTUM VP and CENTUM CS DCS platforms, supporting Fieldbus node bus communication and integration with the Vnet/IP control network. It is compatible with Foundation Fieldbus field devices and interfaces with OPC-based SCADA systems via Yokogawa’s Exaopc server.

Q2: How does the ANB10D-S1 ensure network stability in high-density I/O environments?
The unit employs deterministic communication scheduling on the CENTUM node bus, preventing data collision and ensuring consistent scan cycle performance even when large numbers of field devices are connected. The Vnet/IP network architecture further enhances stability through redundant ring topology support and automatic failover.

Q3: Can the ANB10D-S1 be integrated with third-party SCADA or HMI systems?
Yes. Through Yokogawa’s Exaopc OPC DA/UA server, data managed by the ANB10D-S1 can be exposed to any OPC-compliant SCADA or HMI platform, including Wonderware, iFIX, Ignition, and WinCC. This enables hybrid system architectures where CENTUM DCS coexists with third-party supervisory software.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the ANB10D-S1?
Every ANB10D-S1 supplied by ZYPLC carries a 12-month warranty covering hardware defects and communication failures. Prior to shipment, each unit undergoes functional testing including power-on verification, node bus communication handshake, and protocol integrity checks. Units are shipped via DHL or FedEx Express with full tracking and insurance coverage.
