Yokogawa ATA4S-00 S2 Analog Termination for CENTUM VP

Yokogawa ATA4S-00 S2 Analog Termination for CENTUM VP

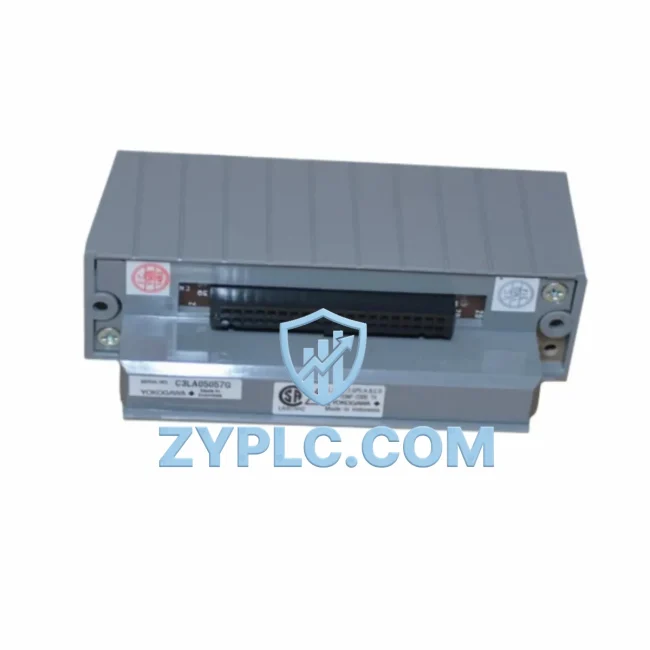

The Yokogawa ATA4S-00 S2 is a precision analog termination assembly engineered for seamless integration within the CENTUM VP and CS 3000 distributed control system (DCS) architecture. Rather than functioning as a standalone component, the ATA4S-00 S2 occupies a critical position at the field signal interface layer — bridging the physical I/O environment with the controller’s signal processing backbone. In large-scale process automation deployments, the reliability of this termination layer directly determines the integrity of analog signal transmission across the entire control hierarchy, from field instruments through to the operator station and historian.

Within a fully realized CENTUM VP system architecture, the ATA4S-00 S2 works in close coordination with analog input/output modules such as the AAI141-S00 and AAI543-H00, which handle 4–20 mA signal conditioning and HART pass-through communication. The termination assembly provides the structured wiring interface that allows these I/O modules to receive field signals from transmitters, control valves, and actuators without introducing ground loops or signal degradation. This is especially important in high-density panel installations where dozens of field loops must be terminated cleanly within a compact marshalling cabinet footprint.

At the controller layer, the ATA4S-00 S2 supports the signal chain that feeds into CENTUM VP field control stations such as the AFV10D and AFC10D, which execute regulatory and advanced process control strategies. The termination assembly’s compatibility with the standard CENTUM VP node bus and I/O bus architecture ensures that field signals arrive at the controller with the timing and accuracy required for closed-loop PID control, cascade control, and feedforward strategies common in refinery, chemical, and power generation applications.

From a system redundancy perspective, the ATA4S-00 S2 is designed to support dual-redundant I/O configurations. When paired with redundant analog input modules and a redundant field control station, the termination assembly enables bumpless switchover during module failure — a critical requirement in continuous process industries where unplanned shutdowns carry significant safety and financial consequences. The structured wiring approach also simplifies the implementation of hot-standby architectures, where the secondary controller must mirror the primary’s I/O state at all times.

In the network and communication layer, the ATA4S-00 S2 supports the broader Vnet/IP control network that interconnects field control stations, engineering workstations, and the CENTUM VP HIS (Human Interface Station). By maintaining clean analog signal termination at the field level, the assembly reduces the risk of noise-induced errors that could propagate through the HART multiplexer or the FCS’s internal diagnostics, ensuring that asset management tools such as Yokogawa’s PRM (Plant Resource Manager) receive accurate device health data.

For engineering teams responsible for system commissioning and long-term maintenance, the ATA4S-00 S2 offers significant practical advantages. Its standardized terminal block layout is compatible with the CENTUM VP’s systematic loop check procedures, allowing technicians to verify each analog channel against the I/O list without rewiring. The assembly’s robust construction — rated for industrial temperature ranges and designed for DIN rail or panel mounting within IEC-standard control cabinets — ensures reliable performance across the full lifecycle of the automation system, from initial commissioning through to major turnaround maintenance cycles.

Inventory availability and supply chain continuity are equally important considerations for plant engineers managing aging DCS infrastructure. The ATA4S-00 S2 remains a stocked component within the CENTUM VP spare parts ecosystem, enabling rapid replacement during corrective maintenance without extended lead times. All units supplied by ZYPLC are covered by a 12-Month Warranty and have undergone functional verification prior to dispatch, supporting the system integration requirements of both greenfield installations and brownfield system expansions.

Product Specification Table

System Compatibility Notes

The ATA4S-00 S2 achieves its full value when considered as part of a coordinated CENTUM VP system design rather than as an isolated component. In a typical process control architecture, the termination assembly interfaces directly with analog input modules such as the AAI141-S00 (16-channel analog input, 4–20 mA) and analog output modules such as the AAO141-S00, which together handle the bulk of regulatory control signal processing within the field control station. These modules are housed in the ANB10D or ANR10D node unit, which provides the backplane connectivity and power distribution for the I/O subsystem.

At the controller level, the AFV10D Field Control Station executes the control strategies that depend on clean, accurate analog signals delivered through the ATA4S-00 S2 termination layer. For applications requiring enhanced availability, the AFC10D dual-redundant field control station can be paired with redundant I/O modules and the ATA4S-00 S2 to create a fully fault-tolerant control loop. Power to the field control station and I/O subsystem is supplied through the APW105 or APW100 power supply modules, which provide regulated 24 VDC to the node bus and field loop circuits.

Communication between the field control station and the operator environment is handled via the Vnet/IP control network, which connects to the HIS0L-W10 Human Interface Station running the CENTUM VP operator graphics. For HART device management, the AHM8B HART multiplexer can be integrated into the same marshalling cabinet as the ATA4S-00 S2, enabling non-intrusive access to field device diagnostics without interrupting the primary 4–20 mA control signal. This combination of termination assembly, I/O modules, controller, power supply, and communication infrastructure forms the complete signal chain that underpins reliable process control across the plant.

Industrial Application Notes

The ATA4S-00 S2 is deployed across a wide range of process industries where the CENTUM VP platform is the DCS of choice. In petroleum refining, the termination assembly supports the analog signal infrastructure for crude distillation unit temperature and pressure control loops, where signal integrity directly affects product yield and energy efficiency. In petrochemical and chemical manufacturing, it is used in reactor temperature control and feed flow regulation systems, where HART-enabled field devices require reliable termination to support advanced diagnostics and predictive maintenance programs.

In the power generation sector — including thermal, combined-cycle, and nuclear auxiliary systems — the ATA4S-00 S2 provides the field wiring interface for boiler drum level, turbine speed, and generator excitation analog loops, where redundancy and signal accuracy are non-negotiable. Water and wastewater treatment facilities use the assembly in SCADA-integrated CENTUM VP architectures for flow, pH, and dissolved oxygen control, benefiting from the standardized termination layout that simplifies multi-site maintenance by a single engineering team.

In mining and metallurgical processing, the ATA4S-00 S2 supports the analog I/O infrastructure for flotation cell level control, smelter temperature regulation, and conveyor drive feedback loops. Pharmaceutical and food processing plants deploy it within GMP-compliant control cabinets where clean wiring practices and documented component traceability — supported by the 12-Month Warranty and ZYPLC’s supply documentation — are required for regulatory audit purposes. Across all these applications, the ATA4S-00 S2 contributes to system consistency, reduces commissioning time, and supports the long-term maintainability of the CENTUM VP architecture.

Product Compatibility FAQ

Q1: Is the ATA4S-00 S2 compatible with both CENTUM VP and CS 3000 systems, and can it be used in a mixed-generation architecture?
Yes. The ATA4S-00 S2 is designed to be compatible with both the CENTUM VP and the earlier CS 3000 platform, sharing the same I/O bus and marshalling conventions. In brownfield projects where CS 3000 hardware is being migrated to CENTUM VP incrementally, the ATA4S-00 S2 can be retained in the existing marshalling cabinet while the controller and I/O modules are upgraded, reducing the scope and cost of the migration. Engineers should verify the specific I/O module revision and node unit compatibility with the Yokogawa system configuration tool (CENTUM VP Builder) before finalizing the architecture.

Q2: How does the ATA4S-00 S2 support redundant I/O configurations, and what additional components are required?
The ATA4S-00 S2 supports dual-redundant I/O by providing a shared field wiring termination point that connects to two parallel analog input modules — typically an active module and a standby module housed in the same node unit. The redundancy switchover is managed by the field control station firmware, which monitors module health via the node bus and executes bumpless transfer in the event of a module fault. To implement a fully redundant analog input channel, the ATA4S-00 S2 must be paired with a compatible redundant I/O module pair (e.g., dual AAI141-S00) and a redundant node unit such as the ANR10D. No additional field wiring changes are required at the termination assembly level.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for CENTUM VP infrastructure?
The 12-Month Warranty provided by ZYPLC covers functional defects in the ATA4S-00 S2 under normal operating conditions, including terminal block integrity, signal path continuity, and mechanical mounting compliance. All units are functionally verified prior to dispatch. For long-term spare parts planning, ZYPLC maintains stock of critical CENTUM VP components — including termination assemblies, analog I/O modules, power supplies, and controller cards — to support both scheduled turnaround maintenance and emergency corrective maintenance scenarios. Engineers managing aging CENTUM VP infrastructure are encouraged to contact ZYPLC to discuss multi-year supply agreements and critical spare parts inventory strategies.
