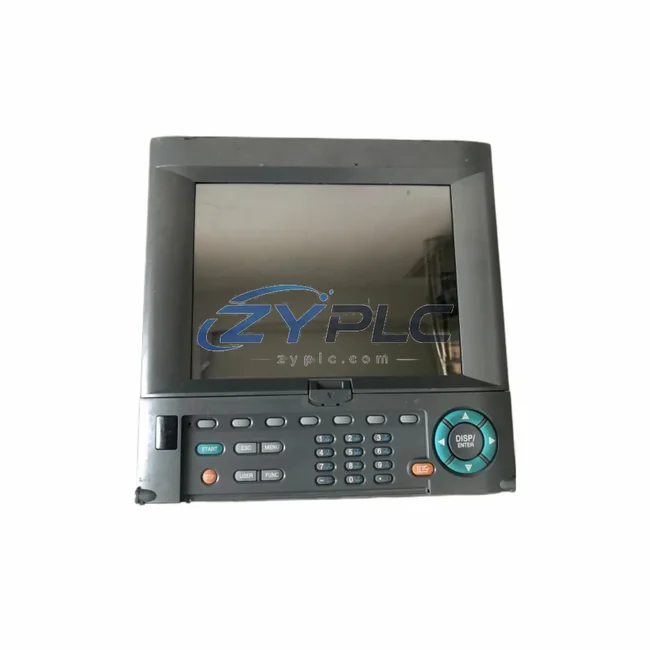

Yokogawa DX2048T-3-4-1 Analog Input for DX2000

Yokogawa DX2048T-3-4-1 Analog Input for DX2000: Control System Integration and Upstream–Downstream Coordination

In modern industrial automation, the reliability of a control system is determined not by any single component, but by the coherence of every layer working in concert. The Yokogawa DX2048T-3-4-1 is a multi-channel analog input module engineered for seamless integration within the DX2000 Series data acquisition and control architecture. Designed to serve as the primary signal acquisition interface between field instrumentation and the supervisory control layer, this module delivers high-accuracy analog signal conditioning, multi-channel scanning, and robust communication compatibility that underpins the operational integrity of the entire control loop.

Within a layered automation system, the DX2048T-3-4-1 occupies a critical position at the I/O layer, receiving process variable signals — including thermocouple, RTD, DC voltage, and DC current inputs — from field transmitters, sensors, and transducers. These signals are digitized, scaled, and forwarded to the DX2000 Series main unit for real-time trending, alarming, and data logging. The module’s architecture ensures that signal integrity is maintained across all 48 channels simultaneously, enabling engineers to monitor complex, multi-variable processes without sacrificing scan rate or measurement accuracy.

The DX2048T-3-4-1 is not designed to operate in isolation. Its value is realized when it functions as part of a coordinated system that includes the DX2020 or DX2030 main recorder units, which provide the central processing, display, and communication backbone. Upstream, field instruments such as pressure transmitters, flow meters, and temperature sensors feed analog signals into the module’s input terminals. Downstream, the digitized data is processed by the DX2000 CPU unit and transmitted via Ethernet or RS-422/485 serial interfaces to SCADA platforms, historian servers, or DCS integration layers. This end-to-end signal flow — from field device through the DX2048T-3-4-1 to the supervisory system — forms the foundation of reliable process visibility.

Product Specification Table

System Compatibility Notes

The DX2048T-3-4-1 achieves its full potential when integrated within a carefully coordinated system architecture. At the control layer, the DX2020 or DX2030 main recorder unit acts as the central processing node, managing scan sequencing, alarm evaluation, and data storage for all channels connected through the DX2048T-3-4-1 expansion module. Engineers configuring multi-recorder networks can synchronize multiple DX2000 units using the DX2000 Ethernet communication module, enabling distributed data acquisition across large plant sections while maintaining a unified time base.

At the power layer, the DX2000 Series power supply unit provides stable, regulated DC power to the backplane, ensuring that the DX2048T-3-4-1 receives clean, noise-free power even in electrically demanding industrial environments. This is particularly important in applications where variable-frequency drives (VFDs), motor starters, or high-current switching equipment operate in proximity to the control cabinet.

For signal conditioning and field wiring, the DX2048T-3-4-1 is typically paired with Yokogawa terminal block assemblies and shielded multi-pair cables, which minimize electromagnetic interference on long cable runs from field instruments. In applications requiring signal isolation or signal conversion — for example, converting HART signals from smart transmitters — a HART multiplexer or signal conditioner module may be inserted between the field device and the DX2048T-3-4-1 input terminals.

At the network and communication layer, the DX2000 Ethernet interface module enables the recorder system to communicate with SCADA platforms such as Yokogawa FAST/TOOLS, Wonderware, or iFIX using Modbus TCP or proprietary Yokogawa communication protocols. For legacy systems, the RS-422/485 serial interface supports Modbus RTU communication with older DCS or PLC platforms, including Yokogawa CENTUM VP DCS systems or third-party controllers.

At the human-machine interface layer, the DX2000 Series built-in color TFT display provides real-time trend visualization for all channels monitored by the DX2048T-3-4-1. For remote monitoring, the DX2000 web server function allows operators to view live data and historical trends from any networked workstation without additional software installation. In more complex architectures, the DX2000 data can be integrated with Yokogawa Exaquantum historian software for long-term data archiving and production reporting.

For redundancy-critical applications, engineers may deploy dual DX2000 recorder systems with synchronized data logging, ensuring that a single recorder failure does not result in data loss. The DX2048T-3-4-1’s channel-to-channel isolation also contributes to system resilience by preventing a fault on one input channel from propagating to adjacent channels or to the main recorder unit.

Industrial Application Notes

Power Generation and Utilities: In thermal power plants and co-generation facilities, the DX2048T-3-4-1 is deployed to monitor boiler temperatures, steam pressures, flue gas temperatures, and cooling water flow rates across multiple measurement points simultaneously. The module’s high channel density reduces the number of recorder units required, simplifying cabinet design and reducing wiring complexity in high-density measurement applications.

Petrochemical and Refinery Processes: In distillation columns, heat exchangers, and reactor vessels, precise temperature profiling across multiple zones is essential for product quality and process safety. The DX2048T-3-4-1 supports multi-point thermocouple and RTD inputs, enabling engineers to map temperature gradients across reactor beds or column trays with a single module, reducing the risk of measurement gaps that could lead to process upsets.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems use the DX2048T-3-4-1 to monitor pH, dissolved oxygen, turbidity transmitter outputs, and pump motor current signals. The module’s compatibility with 4–20 mA current loop inputs makes it universally applicable to the wide variety of transmitter types found in water treatment infrastructure.

Metallurgy and Metals Processing: In electric arc furnaces, continuous casting lines, and rolling mills, the DX2048T-3-4-1 provides high-speed temperature monitoring of molten metal, cooling zones, and heat treatment furnaces. The module’s support for high-temperature thermocouple types (B, R, S, W) makes it suitable for the extreme temperature ranges encountered in metals processing applications.

Pharmaceutical and Food Manufacturing: In GMP-regulated manufacturing environments, the DX2048T-3-4-1 supports 21 CFR Part 11-compliant data logging when integrated with the DX2000 Series audit trail and electronic signature functions. This makes the module suitable for batch process monitoring in pharmaceutical reactors, sterilization autoclaves, and food processing lines where regulatory data integrity requirements apply.

Product Compatibility FAQ

Q1: Is the DX2048T-3-4-1 compatible with all DX2000 Series main recorder units, and can it be mixed with other DX2000 expansion modules in the same chassis?
The DX2048T-3-4-1 is designed for use with DX2000 Series main recorder units including the DX2020 and DX2030. It can be installed alongside other DX2000 expansion modules — such as additional analog input modules, digital I/O modules, or communication interface modules — within the same DX2000 chassis, subject to the maximum channel and module count limits defined in the DX2000 system configuration guide. Engineers should verify the total channel count and power budget of the chassis before adding expansion modules to ensure system stability.

Q2: What steps are required to commission the DX2048T-3-4-1 in an existing DX2000 system, and are there firmware compatibility requirements?
Commissioning the DX2048T-3-4-1 involves physically installing the module into the DX2000 expansion slot, connecting field wiring to the input terminals, and configuring channel parameters — including input type, range, alarm setpoints, and tag names — via the DX2000 front panel menu or the DXA120 PC configuration software. Engineers should verify that the DX2000 main unit firmware version is compatible with the DX2048T-3-4-1 hardware revision before installation. Yokogawa technical documentation provides firmware compatibility matrices for all DX2000 expansion modules.

Q3: What does the warranty terms confirmed during quotation cover for the DX2048T-3-4-1, and what support is available for long-term maintenance?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures occurring under normal operating conditions as specified in the DX2048T-3-4-1 product documentation. It does not cover damage resulting from improper installation, electrical overstress, or operation outside the specified environmental limits. For long-term maintenance, ZYPLC maintains inventory of DX2048T-3-4-1 modules and compatible DX2000 Series components to support spare parts requirements. Our technical team provides pre-sales configuration support and post-sales commissioning guidance to ensure system continuity throughout the product lifecycle.
