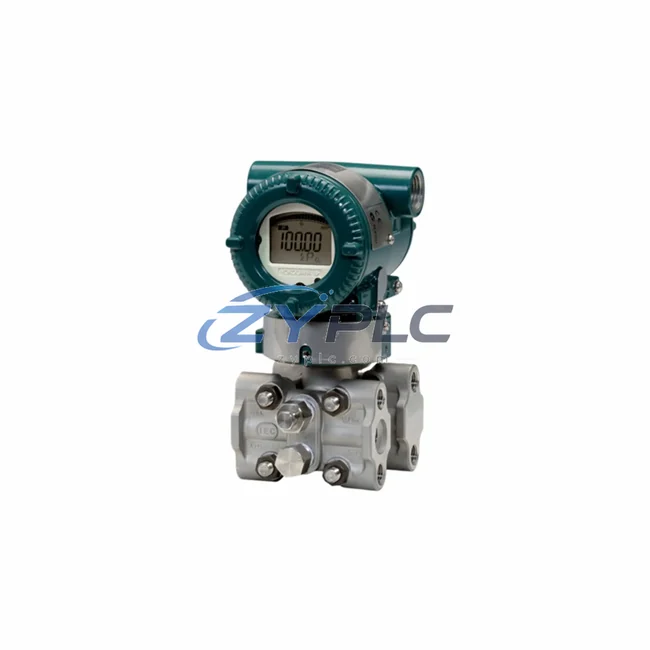

Yokogawa EJA110A DP Transmitter for EJA

Yokogawa EJA110A DP Transmitter for EJA Series

In modern industrial automation, the reliability and interoperability of field instruments are not evaluated in isolation — they are assessed within the full context of the control system architecture. The Yokogawa EJA110A differential pressure transmitter is engineered precisely for this purpose: to serve as a high-accuracy, system-compatible measurement node within layered automation environments spanning the control layer, I/O layer, network layer, power layer, HMI layer, and field execution layer. Whether deployed in a DCS-centric architecture or integrated into a hybrid SCADA/PLC platform, the EJA110A delivers consistent signal quality, long-term stability, and seamless system integration across all system tiers.

The EJA110A belongs to Yokogawa’s EJA Series of high-performance transmitters, a product family recognized globally for its silicon resonant sensor technology, which provides exceptional accuracy (±0.04% of span) and long-term stability (±0.1% per 10 years). This level of measurement precision is critical in process industries where differential pressure readings directly influence flow calculation, level monitoring, and filter differential management — all of which feed upstream into the control logic executed by the DCS or PLC controller.

From a system architecture perspective, the EJA110A occupies the field instrument layer, interfacing directly with the I/O subsystem of the control platform. In a typical Yokogawa CENTUM VP or ProSafe-RS architecture, the EJA110A connects via HART 7 protocol to field device management tools such as the Yokogawa PRM (Plant Resource Manager), enabling remote configuration, diagnostics, and predictive maintenance without interrupting process operations. This HART-enabled system integration reduces engineering downtime and supports continuous system health monitoring across large-scale installations.

The transmitter’s 4–20 mA analog output is fully compatible with standard I/O modules used across major DCS and PLC platforms, including Yokogawa’s own CENTUM VP FIO (Field I/O) modules, as well as third-party systems. When paired with Yokogawa’s EJX910A multivariable transmitter or the EJA530A absolute pressure transmitter, the EJA110A contributes to a comprehensive pressure measurement network that supports redundant signal paths and cross-validation logic at the controller level — a key requirement in safety-instrumented systems (SIS) and high-availability process loops.

Product Specification Table

System Compatibility Notes

The EJA110A does not operate as a standalone device — its value is fully realized when integrated into a coordinated control system architecture. In a typical process plant, the EJA110A works in concert with a range of complementary components across multiple system layers:

At the controller layer, the EJA110A’s HART signal is processed by Yokogawa CENTUM VP controllers or Yokogawa ProSafe-RS safety controllers, where differential pressure data is used in PID control loops for flow regulation and level control. The controller’s I/O cards — such as the Yokogawa AAI143 analog input module — receive the 4–20 mA signal and convert it into engineering units for the control logic.

At the power layer, the EJA110A requires a stable 24 V DC loop power supply. In cabinet-mounted installations, this is typically provided by DIN-rail power supplies or Yokogawa’s own field power distributors, ensuring clean, regulated power that prevents signal noise from corrupting the measurement output.

At the network and communication layer, HART multiplexers or HART-enabled I/O cards allow simultaneous analog signal transmission and digital HART communication. This dual-channel capability enables the Yokogawa PRM system to perform remote valve diagnostics, transmitter calibration verification, and loop integrity checks — all without requiring physical access to the field device.

At the field execution layer, the EJA110A is frequently installed alongside control valves, solenoid valves, and actuators. In flow control loops, the differential pressure measurement from the EJA110A across an orifice plate or Venturi tube provides the primary process variable that drives the control valve positioner — such as the Yokogawa YVP110 valve positioner — to maintain setpoint accuracy.

For redundant measurement architectures, two EJA110A units can be installed in a 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting configuration, with outputs fed into a Yokogawa ProSafe-RS SIL-certified safety controller. This configuration is standard in emergency shutdown (ESD) systems for oil and gas, chemical, and power generation applications, where measurement failure must not result in a spurious trip or an undetected hazardous condition.

Additional components commonly integrated with the EJA110A in a complete system architecture include: the Yokogawa EJA118W diaphragm-sealed differential pressure transmitter for viscous or crystallizing media; the Yokogawa EJX110A high-performance variant for applications requiring tighter accuracy; the Yokogawa YTA710 temperature transmitter for multi-variable process monitoring; and the Yokogawa AXFA14 magnetic flowmeter converter for complementary flow measurement in liquid services.

Industrial Application Notes

The EJA110A is deployed across a wide spectrum of process industries, each with distinct system architecture requirements:

In oil and gas upstream and midstream facilities, the EJA110A measures differential pressure across wellhead choke valves, separator vessels, and pipeline filters. Its high static pressure rating (up to 16 MPa) and robust construction make it suitable for high-pressure, high-temperature service conditions common in these environments.

In power generation plants — including coal-fired, gas turbine, and nuclear facilities — the EJA110A monitors steam flow, feedwater differential pressure, and condenser vacuum. Its long-term stability reduces calibration frequency, which is critical in facilities where instrument access requires plant shutdown or radiation work permits.

In petrochemical and refining operations, the EJA110A is used in distillation column differential pressure monitoring, reactor feed flow measurement, and heat exchanger fouling detection. The ability to detect gradual changes in differential pressure across heat exchangers enables predictive maintenance scheduling, reducing unplanned downtime.

In water and wastewater treatment plants, the EJA110A monitors filter differential pressure, pump differential head, and flow through Venturi meters. Its IP67 enclosure rating and corrosion-resistant wetted materials ensure reliable operation in humid, chemically aggressive environments.

In pharmaceutical and food processing facilities, the EJA110A’s hygienic process connections and cleanable diaphragm designs support CIP (Clean-in-Place) and SIP (Steam-in-Place) operations, meeting FDA and GMP compliance requirements for process measurement instruments.

Product Compatibility FAQ

Q1: Is the EJA110A compatible with third-party DCS and SCADA systems beyond Yokogawa platforms?
Yes. The EJA110A’s 4–20 mA output with HART 7 protocol is universally compatible with any DCS, PLC, or SCADA system that supports standard analog input modules. HART communication can be accessed via any HART-compatible handheld communicator (such as the Emerson 475 Field Communicator) or HART multiplexer, regardless of the host control platform. This makes the EJA110A a flexible choice for multi-vendor system architectures and brownfield integration projects.

Q2: What are the installation and commissioning requirements for the EJA110A in a safety-instrumented system (SIS)?
When installed in a SIS application, the EJA110A must be configured in accordance with IEC 61511 requirements. This includes defining the proof test interval, documenting the safe failure fraction (SFF), and verifying the SIL capability of the specific model variant. Yokogawa provides SIL certification documentation for EJA110A variants used in SIS applications. During commissioning, HART communication should be used to verify the configured range, damping settings, and alarm outputs match the SIS logic solver’s input requirements. A functional proof test should be performed before the loop is placed in service.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance?
The warranty terms confirmed during quotation covers manufacturing defects, sensor drift beyond published specifications, and functional failures under normal operating conditions. It does not cover damage resulting from improper installation, process overpressure, or chemical incompatibility with wetted materials. For long-term maintenance, Yokogawa recommends periodic calibration verification using a HART communicator and a precision pressure source. Spare parts — including diaphragm assemblies, process connectors, and electronics modules — are maintained in inventory to support rapid field replacement. Extended service agreements and on-site calibration support are available through Yokogawa’s global service network.
