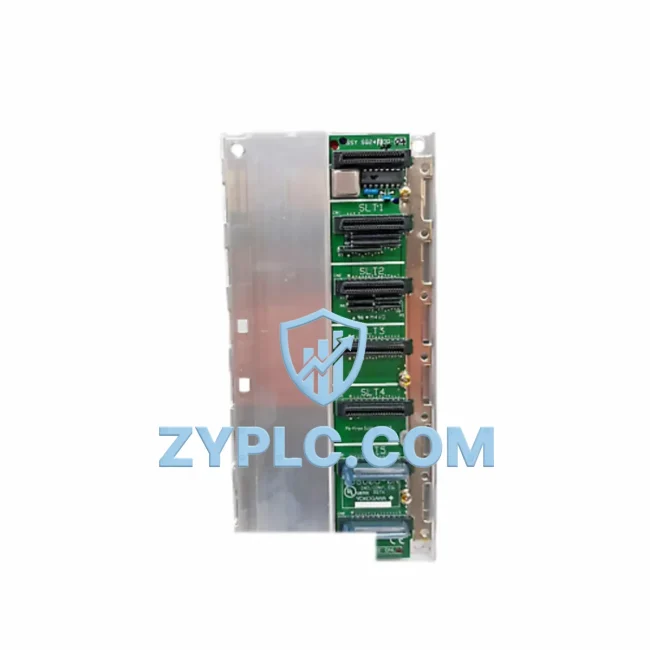

Yokogawa F3BU06-0N Base Module for FA-M3 Automation

Yokogawa F3BU06-0N Base Module for FA-M3 Automation

The Yokogawa F3BU06-0N is a 6-slot base module engineered for the FA-M3 range-free multi-controller platform, delivering precision power distribution and low-loss backplane communication that directly reduces idle operating load across the entire control rack. In modern manufacturing environments where energy accountability is increasingly tied to production KPIs, the F3BU06-0N provides the structural foundation that enables every installed module to operate at its rated efficiency — eliminating the parasitic losses that accumulate in aging or mismatched base hardware.

Product Specification Table

System Compatibility and Application

The F3BU06-0N base module is the backbone of a well-structured FA-M3 control node. Its 6-slot configuration accommodates a flexible mix of CPU, I/O, communication, and specialty modules — all sharing a unified, low-impedance power bus that minimizes voltage drop and heat generation under load.

In a typical energy-optimized FA-M3 rack, the F3BU06-0N hosts a CPU module such as the F3SP71-4S or F3SP76-7S, which handles ladder logic and structured text execution with deterministic scan cycles. Paired with the F3PU26-0S power supply module, the base delivers clean, regulated voltage to all slots, preventing the micro-surges that degrade module lifespan and inflate energy bills over time.

For digital I/O integration, the F3XD64-3N 64-point DC input module and F3YD64-1P 64-point transistor output module slot directly into the F3BU06-0N, enabling high-density signal handling without additional sub-racks. Analog process variables — such as motor current, temperature, and pressure — are captured via the F3AD04-6R analog input module, feeding real-time data to the CPU for closed-loop energy control algorithms.

Network connectivity is handled by the F3LC12-1N Ethernet communication module, which supports MODBUS TCP and FL-net protocols, allowing the FA-M3 rack to exchange energy telemetry with SCADA systems, MES platforms, and maintenance planning servers. For motion-intensive lines, the F3NC96-0N high-speed counter module tracks encoder pulses from servo drives, enabling the CPU to calculate actual mechanical efficiency and flag deviations that indicate bearing wear or load imbalance — both of which increase operating load.

Where variable-speed drives are deployed, the FA-M3 system communicates setpoints to Yokogawa inverter drives via the F3RP61-2P remote I/O module, closing the loop between PLC logic and motor speed control. This architecture ensures that pump and fan motors run at demand-matched speeds rather than fixed full-load, which is the single largest source of recoverable unplanned downtime in most process plants.

Maintenance and Replacement Notes

In a food and beverage bottling line, the F3BU06-0N-based FA-M3 rack manages conveyor sequencing, filling valve control, and reject gate actuation. By centralizing all control in a single 6-slot rack rather than distributing logic across multiple smaller PLCs, the plant reduces total standby power consumption and simplifies the energy audit trail. The CPU’s scan time consistency — enabled by the F3BU06-0N’s low-latency backplane — ensures that conveyor motors are not held energized during micro-stoppages, cutting idle motor runtime by measurable percentages per shift.

In an automotive body welding cell, the same base module hosts analog input cards monitoring weld transformer current draw. When the FA-M3 detects that a transformer is drawing 15% above its baseline for a given weld schedule, it flags a predictive maintenance alert before the transformer fails — avoiding both unplanned downtime and the energy spike associated with a cold restart of the welding cell. This predictive capability, rooted in the reliable data throughput of the F3BU06-0N backplane, directly reduces maintenance costs and extends equipment service intervals.

For water treatment facilities, the FA-M3 rack built on the F3BU06-0N controls variable-speed pump drives based on real-time flow demand signals from ultrasonic flow meters. The result is a pump system that tracks demand curves rather than running at fixed speed — a configuration that routinely delivers 20–35% reductions in pump operating load compared to fixed-speed operation. All inventory is pre-tested prior to shipment, and each F3BU06-0N unit is covered by a warranty terms confirmed during quotation, ensuring operational continuity from day one of installation.

Product Sourcing FAQ

Q1: How does the F3BU06-0N contribute to operational stability compared to a standard base module?
The F3BU06-0N uses an optimized low-loss backplane power rail that reduces resistive heating and voltage drop across all installed modules. This means each module operates closer to its rated efficiency point, and the overall rack draws less standby current during idle periods — a measurable benefit in 24/7 production environments.

Q2: Is the F3BU06-0N compatible with all FA-M3 series CPU and I/O modules?
Yes. The F3BU06-0N is fully compatible with the FA-M3 range-free multi-controller module family, including CPU modules (F3SP series), analog I/O (F3AD/F3DA series), digital I/O (F3XD/F3YD series), and communication modules (F3LC series). Always verify firmware revision compatibility with your specific CPU model before installation.

Q3: What is the recommended replacement process if upgrading from an older FA-M3 base module?
Power down the rack, document all module slot positions, remove modules in sequence, swap the base unit, reinstall modules in the same positions, and perform a cold-start verification. ZYPLC recommends running a full I/O check and scan-time benchmark after replacement to confirm backplane integrity. Our technical team can provide a pre-shipment test report on request.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every F3BU06-0N shipped by ZYPLC undergoes functional verification including power rail continuity, slot connector integrity, and backplane communication testing. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC with a target replacement or repair turnaround of 5–7 business days.
