Yokogawa F3BU09-0N Power Supply Module for STARDOM Systems

Yokogawa F3BU09-0N: Industrial Data Link and Smart Factory Connectivity for STARDOM Systems

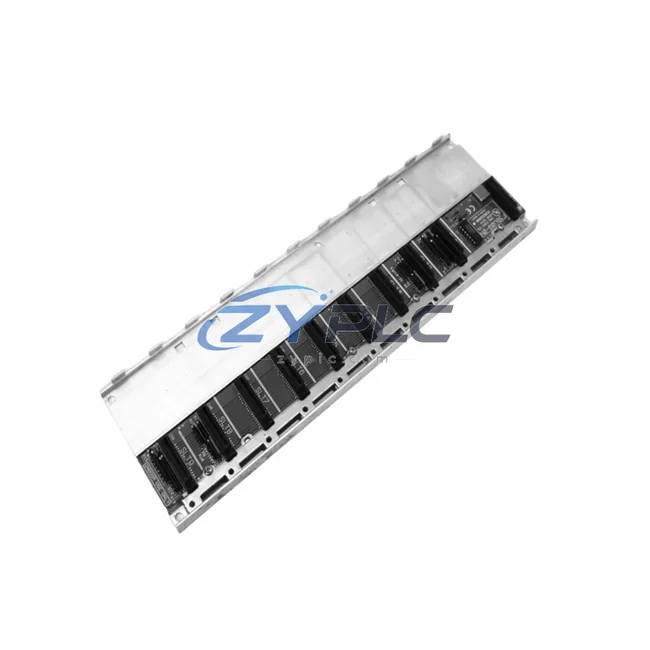

The Yokogawa F3BU09-0N is a high-reliability power supply and base unit module engineered for the STARDOM FCN/FCJ autonomous controller platform — one of Yokogawa’s most widely deployed distributed control architectures in process automation, utilities, and smart manufacturing environments. Designed to anchor the backplane infrastructure of the STARDOM system, the F3BU09-0N provides stable, conditioned power distribution across all installed I/O and communication modules, forming the physical and electrical backbone of the entire industrial data chain.

In modern smart factory deployments, every data transaction — from field-level sensor readings to SCADA dashboards — depends on the integrity of the power and communication bus. The F3BU09-0N ensures that modules such as the F3NC11-0N Ethernet communication module and the F3LC12-1N loop control module receive clean, uninterrupted power, enabling continuous real-time data acquisition and protocol-level communication without signal degradation or bus contention.

Compatibility & Integration Notes

Connected Automation Data Flow

The F3BU09-0N sits at the heart of a layered industrial communication architecture. At the field level, analog input modules such as the F3AD08-3N collect 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors. These signals are digitized and passed through the backplane — powered and stabilized by the F3BU09-0N — to the F3SP71-4N sequence CPU module, which executes ladder logic and function block programs in real time.

Digital output modules like the F3XD64-3N and analog output modules such as the F3DA04-6N translate controller commands back into field-level actuator signals, driving control valves, variable frequency drives (VFDs), and motor starters. The F3NC11-0N Ethernet communication module bridges the STARDOM backplane to the plant’s Industrial Ethernet network, enabling Modbus TCP/IP and OPC-UA data exchange with upstream SCADA systems, historian servers, and HMI terminals.

For remote I/O expansion across distributed plant areas, the F3RP61-2N remote processor module extends the STARDOM network over fiber or copper Ethernet links, while the F3PU20-0S power unit provides redundant power sourcing for mission-critical nodes. Edge gateway devices aggregate data from multiple STARDOM FCN controllers and forward structured datasets to cloud-based MES platforms or on-premise SCADA servers running Yokogawa’s FAST/TOOLS or third-party systems such as Wonderware and Ignition.

Pulse counter modules like the F3CT04-0N capture high-speed encoder and flow pulse signals, feeding real-time production metrics into the data pipeline. Meanwhile, the F3YD64-3N digital input module monitors discrete field signals — limit switches, proximity sensors, and safety interlocks — ensuring that alarm states are propagated immediately through the backplane to the controller and onward to the SCADA alarm management layer. This end-to-end data flow — from sensor to actuator, from field bus to enterprise network — is made possible by the stable power and bus integrity delivered by the F3BU09-0N base unit.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation: field devices operating on incompatible protocols, legacy PLCs unable to communicate with modern SCADA platforms, and remote substations cut off from centralized monitoring. The Yokogawa F3BU09-0N, as the foundation of the STARDOM FCN/FCJ system, directly addresses these challenges by providing a unified backplane that supports a wide range of communication and I/O modules under a single, coherent architecture.

By hosting protocol conversion modules alongside standard I/O, the STARDOM platform eliminates the need for standalone protocol gateways between Modbus RTU field devices and Ethernet-based SCADA systems. Engineers can configure OPC-UA data paths directly within the FCN controller, making real-time process data available to HMI terminals and remote diagnostic workstations without additional middleware. This transparency enables production line visibility — operators can monitor tank levels, motor currents, valve positions, and alarm histories from a single SCADA screen, regardless of the underlying field protocol.

System expansion is equally straightforward: additional I/O modules are inserted into available backplane slots powered by the F3BU09-0N, and the FCN controller automatically recognizes new hardware without requiring a full system restart. For multi-site operations, STARDOM’s built-in remote diagnostic capabilities allow maintenance engineers to interrogate controller status, review event logs, and push configuration updates over secure Industrial Ethernet links — reducing on-site service visits and minimizing unplanned downtime.

Industrial Connectivity FAQ

Q1: Does the F3BU09-0N support redundant power input for high-availability applications?
The F3BU09-0N base unit is designed to work within the STARDOM FCN/FCJ redundancy architecture. When paired with the F3PU20-0S redundant power unit, the system supports dual power feed configurations, ensuring continuous operation even in the event of a single power supply failure — a critical requirement for process industries where unplanned shutdowns carry significant operational and safety costs.

Q2: Which communication protocols are compatible with the STARDOM FCN system hosted on the F3BU09-0N?
The STARDOM FCN controller supports Modbus TCP/IP, Modbus RTU (via serial communication modules), OPC-UA, and FOUNDATION Fieldbus (with appropriate interface modules). The F3NC11-0N Ethernet module enables direct integration with SCADA systems, historian databases, and HMI platforms over standard Industrial Ethernet, making the F3BU09-0N-based system compatible with virtually all modern industrial network architectures.

Q3: How does the F3BU09-0N contribute to network stability and low-latency data transmission?
By providing clean, regulated power to all backplane-mounted modules, the F3BU09-0N eliminates voltage fluctuation-induced communication errors that can cause data packet loss or increased latency on the backplane bus. This is particularly important for time-sensitive applications such as closed-loop PID control, where scan cycle consistency directly affects process stability and product quality.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the F3BU09-0N?
Every F3BU09-0N unit supplied by ZYPLC undergoes functional verification and power output testing prior to shipment. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and operational failures. ZYPLC maintains ready stock of STARDOM series modules to support urgent project timelines, with global shipping available to industrial customers worldwide.
