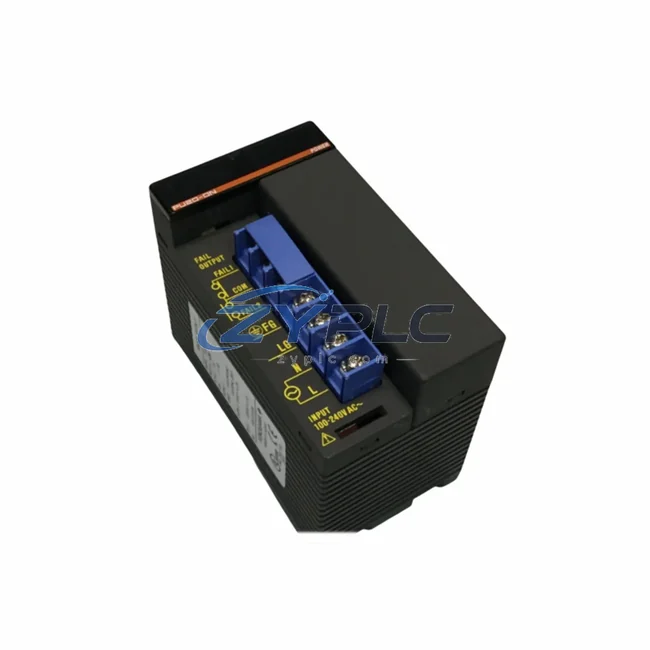

Yokogawa F3PU20-0N Power Supply Module for FA-M3

Yokogawa F3PU20-0N Power Supply Module for FA-M3

The Yokogawa F3PU20-0N is a dedicated power supply module engineered for seamless integration within the FA-M3 modular PLC platform. Rather than functioning as a standalone component, the F3PU20-0N is designed from the ground up to serve as the electrical backbone of a complete, layered control system architecture — delivering stable, regulated DC power to every module mounted on the FA-M3 base unit. In industrial environments where uptime is non-negotiable, the quality and consistency of the power supply layer directly determines the reliability of the entire control hierarchy above it.

Within a fully configured FA-M3 system, the F3PU20-0N occupies the power layer — the foundational tier upon which the CPU layer, I/O layer, communication layer, and HMI layer all depend. When paired with a high-performance CPU module such as the F3SP71-4N or F3RP71-4S, the F3PU20-0N ensures that processing cycles are never interrupted by voltage fluctuation or transient noise from the field. This is particularly critical in applications where the CPU is executing real-time ladder logic, function block programs, or structured text routines at high scan rates.

The FA-M3 backplane architecture, represented by base units such as the F3BU13-0N and F3BP20-0N, allows multiple modules to share a common power bus. The F3PU20-0N feeds this bus with precision-regulated output, ensuring that digital input modules like the F3XD64-3N and digital output modules like the F3YD64-1P receive consistent operating voltage regardless of load variation across the rack. In high-density I/O configurations — common in packaging lines, water treatment facilities, and petrochemical process units — this power stability is essential for maintaining signal integrity across hundreds of I/O channels simultaneously.

At the communication layer, modules such as the F3NC11-0N Ethernet communication module rely on the F3PU20-0N to maintain uninterrupted network connectivity between the PLC and SCADA systems, DCS platforms, or upstream MES infrastructure. Any power instability at the module level can cause communication timeouts, lost data frames, or forced controller restarts — all of which translate directly into production losses. The F3PU20-0N’s regulated output eliminates this risk, supporting system integration across all network-connected components in the control cabinet.

For applications requiring analog signal processing — such as pressure transmitter inputs or valve positioner outputs — the F3AD04-6N analog input module and F3DA04-6N analog output module demand exceptionally clean power to maintain measurement accuracy within specified tolerances. The F3PU20-0N’s low-ripple output directly supports the signal fidelity of these analog modules, which is critical in process industries such as oil refining, chemical blending, and power generation where even minor measurement drift can trigger safety interlocks or product quality deviations.

In redundant control architectures, the F3PU20-0N can be deployed alongside a secondary power supply module to form a hot-standby power configuration. This redundancy design is frequently specified in mining automation, metallurgical process control, and utility substation automation, where a single power supply failure cannot be permitted to bring down the control system. The FA-M3 platform’s modular design makes it straightforward to add a redundant F3PU10-0N or equivalent power module to the same base unit, with automatic switchover ensuring zero-interruption operation.

From an engineering and commissioning perspective, the F3PU20-0N simplifies system startup. Its LED status indicators provide immediate visual confirmation of power-good status during initial rack energization, reducing commissioning time and allowing engineers to quickly isolate power-related faults during loop checks. During long-term maintenance cycles, the module’s plug-and-play replacement capability means that field technicians can swap a failed unit without powering down adjacent modules — a significant advantage in continuous-process industries where planned shutdowns are costly and infrequent.

ZYPLC maintains ready stock of the Yokogawa F3PU20-0N with a warranty terms confirmed during quotation covering manufacturing defects and operational failures under normal industrial service conditions. All units are sourced through verified supply channels and undergo pre-shipment inspection to confirm electrical integrity before dispatch. Global shipping is available with full export documentation support.

Product Specification Table

System Compatibility Notes

A complete FA-M3 control system built around the F3PU20-0N typically integrates the following coordinated components across all system layers:

At the CPU layer, the F3SP71-4N high-speed CPU module or the F3RP71-4S redundant CPU module serves as the central processing unit, executing control programs and managing all inter-module communication via the FA-M3 internal bus. The F3PU20-0N provides the stable 5V bus voltage that these CPU modules require for uninterrupted program execution.

At the I/O layer, the F3XD64-3N 64-point digital input module and F3YD64-1P 64-point digital output module handle field signal acquisition and actuation. Analog signal processing is managed by the F3AD04-6N analog input module and F3DA04-6N analog output module, both of which depend on the F3PU20-0N’s clean power output for measurement accuracy.

At the network and communication layer, the F3NC11-0N Ethernet communication module enables TCP/IP and Modbus TCP connectivity to SCADA systems and engineering workstations. The F3PU20-0N ensures this module maintains continuous network presence without power-related dropouts.

At the infrastructure layer, the F3BU13-0N 13-slot base unit and F3BP20-0N expansion base unit provide the physical backplane into which all modules — including the F3PU20-0N — are installed. A secondary F3PU10-0N power supply module can be added to the same rack for redundant power architecture in high-availability applications.

Industrial Application Notes

The Yokogawa F3PU20-0N is deployed across a wide range of industrial sectors where the FA-M3 platform is the preferred control architecture:

In manufacturing and packaging lines, the F3PU20-0N powers FA-M3 systems controlling conveyor sequencing, robotic pick-and-place stations, and vision inspection systems. The module’s stable output ensures that high-speed digital I/O modules respond to machine signals within the required cycle times.

In power generation and electrical utilities, FA-M3 systems equipped with the F3PU20-0N manage turbine control, transformer protection relay interfaces, and substation automation. The module’s input-to-output isolation is particularly valued in environments with high electrical noise from switchgear and bus bars.

In petrochemical and oil refining applications, the F3PU20-0N supports FA-M3 systems performing continuous process control of distillation columns, heat exchangers, and compressor trains. The clean power output is essential for the analog I/O modules monitoring pressure, temperature, and flow transmitters throughout the process unit.

In water and wastewater treatment, FA-M3 systems powered by the F3PU20-0N control pump stations, chemical dosing systems, and filtration processes. The module’s wide operating temperature range and high humidity tolerance make it suitable for the challenging environmental conditions typical of water treatment facilities.

In mining and metallurgy, the F3PU20-0N is specified in FA-M3 systems controlling ore processing conveyors, crusher sequencing, and smelting furnace temperature regulation. Redundant power configurations using dual F3PU20-0N or F3PU10-0N modules are standard practice in these high-availability applications.

Product Compatibility FAQ

Q1: Is the F3PU20-0N compatible with all FA-M3 base units, and can it be used in an expanded rack configuration?
The F3PU20-0N is designed for use with standard FA-M3 base units including the F3BU13-0N 13-slot base and F3BP20-0N expansion base. Each base unit requires its own dedicated power supply module. In expanded rack configurations where multiple base units are connected via the FA-M3 expansion bus, each base unit must be equipped with its own F3PU20-0N or compatible power supply module. ZYPLC can advise on power budget calculations for your specific rack configuration prior to order.

Q2: Can the F3PU20-0N be replaced without shutting down the entire FA-M3 system?
The FA-M3 platform supports hot-swap capability for certain module types; however, replacing the power supply module itself will interrupt power to all modules on the same base unit. For applications requiring zero-downtime maintenance, a redundant power supply architecture using a secondary module on a separate base unit — connected via the FA-M3 expansion bus — is the recommended design approach. ZYPLC’s engineering team can assist with redundancy architecture planning as part of the pre-sales consultation process.

Q3: What does the warranty terms confirmed during quotation cover, and what is the replacement process through ZYPLC?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and operational failures occurring under normal industrial service conditions as defined by Yokogawa’s published environmental and electrical specifications. Physical damage, incorrect installation, or operation outside specified voltage and temperature ranges are excluded. In the event of a warranty claim, customers contact ZYPLC directly via +86 19859288691 or plc.sales@zyplc.com to initiate the return and replacement process. Replacement units are dispatched from ZYPLC’s availability subject to RFQ confirmation upon confirmation of the warranty claim.
