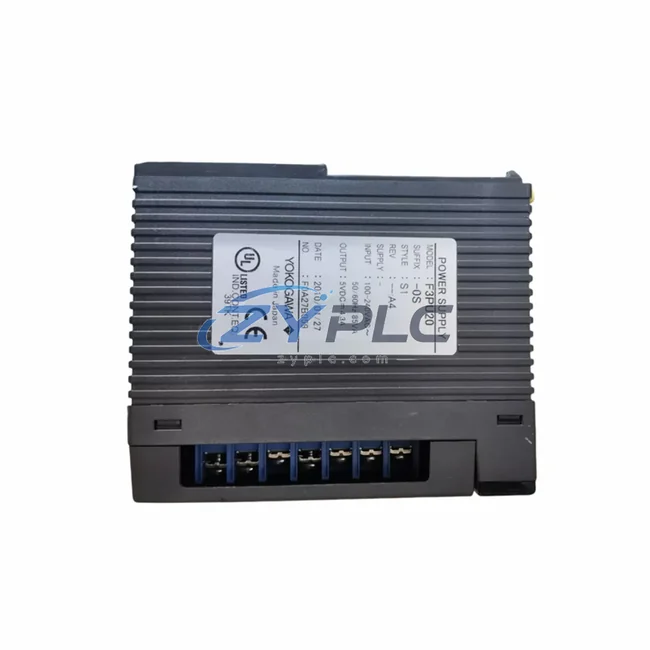

The Yokogawa F3PU20-0S is a high-efficiency power supply module engineered for the FA-M3 modular PLC platform. In demanding industrial environments where energy costs, equipment uptime, and production throughput are tightly linked, the F3PU20-0S delivers stable, regulated DC power to the FA-M3 backplane while minimizing conversion losses. Its compact form factor and robust thermal design make it a cornerstone component for factories seeking to reduce idle power draw, lower heat generation in control panels, and extend the operational lifespan of connected automation hardware.

Unlike generic power supplies, the F3PU20-0S is purpose-built for Yokogawa’s FA-M3 architecture, ensuring seamless compatibility with the full range of FA-M3 I/O, CPU, and communication modules. This native integration eliminates voltage mismatch risks, reduces inrush current events, and supports predictable load distribution across multi-slot base units such as the F3BU13-0N and F3BP20-0N expansion backplanes. The result is a more stable control environment that directly supports consistent production line rhythm and reduced unplanned downtime.

Product Specification Table

System Compatibility and Application

The F3PU20-0S operates at the heart of an maintenance-focused FA-M3 control system. When paired with a F3SP71-4N or F3RP70-0N CPU module, the power supply feeds a deterministic scan cycle that eliminates unnecessary processing overhead — a key factor in reducing the energy consumed per machine cycle. The CPU’s fast scan time means actuators and drives receive commands with minimal latency, preventing the unplanned downtime associated with prolonged hold states or repeated command retries.

On the I/O side, the F3PU20-0S supports high-density digital input modules such as the F3XD64-3F and digital output modules like the F3YD64-1P, which together enable fine-grained control of field devices without requiring additional external power rails. Analog modules including the F3AD08-6R (analog input) and F3DA04-6R (analog output) draw their operating power from the same regulated backplane bus, ensuring that sensor signal conditioning and actuator reference signals remain stable even under fluctuating load conditions.

For motion-intensive applications, the F3PU20-0S supports axis control modules such as the F3NC96-0N pulse output module, which coordinates servo drive positioning without the voltage sag that can cause encoder miscounts or drive faults. Stable backplane voltage is equally critical for communication modules like the F3LC11-1F Ethernet interface, which maintains continuous data exchange with SCADA systems, condition monitoring platforms, and upstream MES layers — enabling real-time visibility into power consumption at the machine level.

Maintenance and Replacement Notes

In real manufacturing environments, unregulated or inefficient power delivery is one of the most overlooked sources of unplanned downtime. Voltage ripple on the backplane bus can cause I/O modules to re-sample signals, CPUs to extend scan cycles, and communication modules to retransmit data packets — all of which consume additional energy and degrade production line throughput. The F3PU20-0S addresses this at the source by providing a clean, stable 5 V DC bus that allows every connected FA-M3 module to operate within its optimal power envelope.

From an condition monitoring perspective, the stable output of the F3PU20-0S makes it easier to establish accurate baseline power consumption profiles for each FA-M3 control cabinet. When integrated with plant-level power metering systems, facilities engineers can correlate backplane load data with production output metrics, identifying periods of high energy intensity relative to throughput — a foundational step in any energy efficiency improvement program.

Predictive maintenance also benefits directly from a reliable power supply. Voltage instability is a leading cause of premature failure in PLC I/O modules and communication cards. By maintaining consistent output under varying load conditions, the F3PU20-0S extends the mean time between failures (MTBF) of the entire FA-M3 rack, reducing both maintenance labor costs and the risk of unplanned production stoppages. For facilities operating on tight production schedules, this translates directly into improved equipment utilization rates and lower total cost of ownership.

Every F3PU20-0S unit supplied by ZYPLC is sourced from verified inventory channels, subjected to functional load testing prior to shipment, and covered by a warranty terms confirmed during quotation. This ensures that replacement units integrate into existing FA-M3 systems without commissioning risk, minimizing the time from receipt to restored production.

Product Sourcing FAQ

Q1: How does the F3PU20-0S contribute to operational stability in an FA-M3 system?
The F3PU20-0S uses a switch-mode conversion design that minimizes resistive losses during AC-to-DC conversion. By delivering a stable, low-ripple 5 V DC bus, it allows all connected FA-M3 modules — including CPU, I/O, analog, and communication cards — to operate at their rated efficiency points, reducing the aggregate power draw of the control rack compared to systems with unstable or oversized power supplies.

Q2: Is the F3PU20-0S compatible with all FA-M3 base units and expansion racks?
Yes. The F3PU20-0S is designed for the standard FA-M3 backplane connector and is compatible with Yokogawa’s full range of FA-M3 base units and expansion racks. It supports mixed I/O configurations including digital, analog, pulse output, and communication modules without requiring additional power conditioning hardware.

Q3: What is the recommended replacement procedure when substituting a failed power supply on a live production line?
ZYPLC recommends scheduling replacement during a planned maintenance window. Before removal, document the current rack configuration and verify that the replacement F3PU20-0S has passed pre-shipment functional testing (all ZYPLC units are tested prior to dispatch). After installation, allow a 5-minute warm-up period before resuming full production load to ensure thermal stabilization of the output stage.

Q4: What warranty and after-sales support does ZYPLC provide for the F3PU20-0S?
All F3PU20-0S units supplied by ZYPLC carry a warranty terms confirmed during quotation covering functional defects under normal operating conditions. Units are tested before shipment and shipped with documentation. For warranty claims or technical support, contact ZYPLC directly at +86 19859288691 or plc.sales@zyplc.com.
