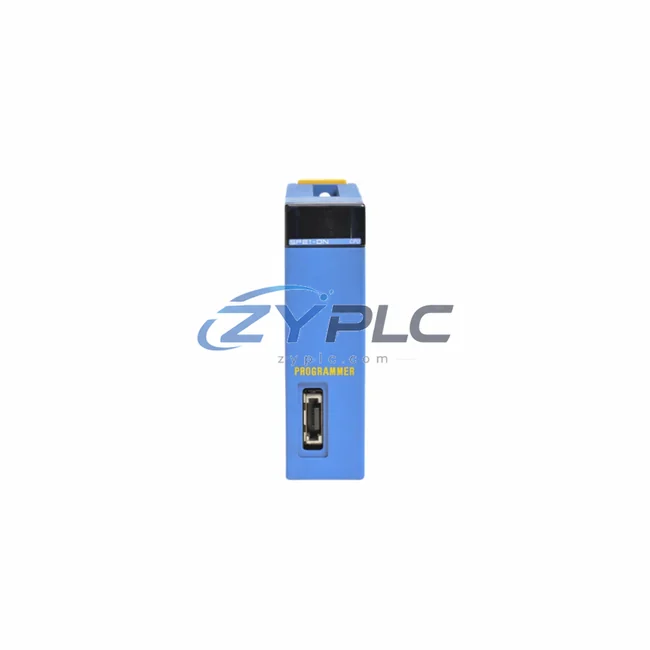

Yokogawa F3SP53-4S PLC CPU Module for FA-M3 Systems

Yokogawa F3SP53-4S Industrial Network Interface for FA-M3 Systems: Bridging the Industrial Data Link in Smart Factory Environments

The Yokogawa F3SP53-4S is a high-performance Sequence CPU Module designed for the FA-M3 modular PLC platform — one of Yokogawa’s most versatile and widely deployed control architectures in process automation, discrete manufacturing, and hybrid industrial environments. Far beyond a standalone controller, the F3SP53-4S functions as the central intelligence node within a layered automation system, orchestrating data flow between field devices, remote I/O stations, HMI terminals, SCADA servers, and enterprise-level MES platforms. In smart factory deployments where real-time data integrity and network stability are non-negotiable, this CPU module delivers the processing power, communication flexibility, and system scalability that modern industrial connectivity demands.

Compatibility & Integration Notes

Connected Automation Data Flow

In a complete FA-M3 control architecture, the F3SP53-4S CPU sits at the heart of a multi-layer data pipeline. At the field level, analog and digital signals from pressure transmitters, flow meters, temperature sensors, and proximity switches are collected through Yokogawa F3AD08-6H analog input modules and F3XD32-3H digital input modules mounted on the same backplane. These I/O modules feed real-time process values directly into the CPU’s scan cycle, enabling sub-millisecond response to process deviations.

For remote I/O expansion across large plant floors or geographically distributed substations, the F3SP53-4S communicates with Yokogawa F3LR02-0N remote I/O link modules, extending the control reach without adding CPU overhead. This architecture is particularly effective in water treatment facilities and chemical plants where field instruments are spread across multiple buildings or process units.

At the network layer, the F3SP53-4S connects to Yokogawa F3LE01-5T Ethernet communication modules, enabling Modbus TCP and Ethernet/IP data exchange with upstream SCADA systems such as Yokogawa FAST/TOOLS or third-party platforms like Wonderware InTouch and Ignition SCADA. This bidirectional data link supports real-time tag updates, alarm acknowledgment, and remote setpoint adjustment — all critical for centralized production monitoring in smart factory environments.

HMI integration is achieved through direct Ethernet connection to Yokogawa-compatible operator panels or third-party HMI terminals running on the same industrial Ethernet segment. The F3SP53-4S supports structured data mapping that allows HMI screens to display live process values, trend data, and equipment status without additional protocol conversion middleware.

For drive and motion control integration, the CPU communicates with Yokogawa variable frequency drives and servo amplifiers via RS-485 Modbus RTU links, enabling coordinated speed control, torque feedback, and fault diagnostics within the same PLC program. In packaging lines and conveyor systems, this tight integration between the F3SP53-4S and drive systems eliminates the latency associated with separate motion controllers.

Power supply stability for the entire FA-M3 rack is provided by the F3PU20-0S or F3PU30-0S power modules, which deliver regulated 5 VDC and 24 VDC rails to all installed modules. The F3SP53-4S monitors power supply status in real time and can trigger system-level alarms if voltage deviations are detected — a key feature for high-availability process control applications in oil and gas or pharmaceutical manufacturing.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — where PLCs, DCS systems, drives, and field instruments operate on incompatible protocols, creating information silos that prevent plant-wide visibility. The Yokogawa F3SP53-4S directly addresses this challenge through its multi-protocol communication architecture.

By supporting Modbus TCP, Ethernet/IP, and FL-net simultaneously through expansion communication modules, the F3SP53-4S acts as a protocol gateway between legacy serial devices and modern Ethernet-based SCADA infrastructure. A single FA-M3 rack equipped with the F3SP53-4S can aggregate data from older RS-232C instruments, Modbus RTU field devices, and new Ethernet-connected sensors — presenting a unified data stream to the SCADA layer without requiring hardware replacement of existing field equipment.

Remote diagnostics capability is another critical advantage. Through the Ethernet port, maintenance engineers can access the F3SP53-4S programming environment remotely using Yokogawa’s WideField3 software, reviewing ladder logic execution, monitoring I/O status, and uploading program modifications without physical access to the control panel. This capability dramatically reduces mean time to repair (MTTR) in facilities where control panels are located in hazardous or difficult-to-access areas.

For production line transparency, the F3SP53-4S supports structured data logging that feeds OEE (Overall Equipment Effectiveness) dashboards and MES platforms. Cycle counts, downtime events, batch completion signals, and quality check results can all be captured at the PLC level and transmitted to enterprise systems via standard industrial protocols — enabling the real-time production visibility that Industry 4.0 initiatives require.

System expansion is handled gracefully through the FA-M3’s modular backplane architecture. Additional I/O modules, communication modules, and specialty function modules can be added to the rack without modifying the F3SP53-4S CPU program structure, protecting the engineering investment as production requirements evolve.

Industrial Connectivity FAQ

Q1: Does the F3SP53-4S support simultaneous Modbus TCP and Ethernet/IP communication?
Yes. With the appropriate Yokogawa F3LE01-5T or F3LE11-1T Ethernet communication modules installed in the same FA-M3 rack, the F3SP53-4S can maintain concurrent Modbus TCP and Ethernet/IP sessions, allowing simultaneous connection to SCADA systems, HMI terminals, and peer PLC controllers without communication conflicts.

Q2: Is the F3SP53-4S compatible with Yokogawa CENTUM VP DCS integration?
Yes. The FA-M3 platform, including the F3SP53-4S CPU, supports integration with Yokogawa CENTUM VP distributed control systems via FL-net or Ethernet/IP communication links. This allows the FA-M3 to function as a subsystem controller within a larger CENTUM VP architecture, with seamless data exchange between the PLC and DCS layers.

Q3: What network stability measures are built into the F3SP53-4S for 24/7 industrial operation?
The F3SP53-4S incorporates watchdog timer functions, communication timeout detection, and automatic error recovery routines that maintain system stability during network interruptions. The CPU continues executing its control program independently of SCADA communication status, ensuring that field-level control is never compromised by upstream network issues.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every F3SP53-4S unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing including power-on diagnostics, communication port testing, and I/O scan verification. Units that do not pass all test criteria are not shipped. Warranty claims are processed directly through ZYPLC’s technical support team at plc.sales@zyplc.com.
