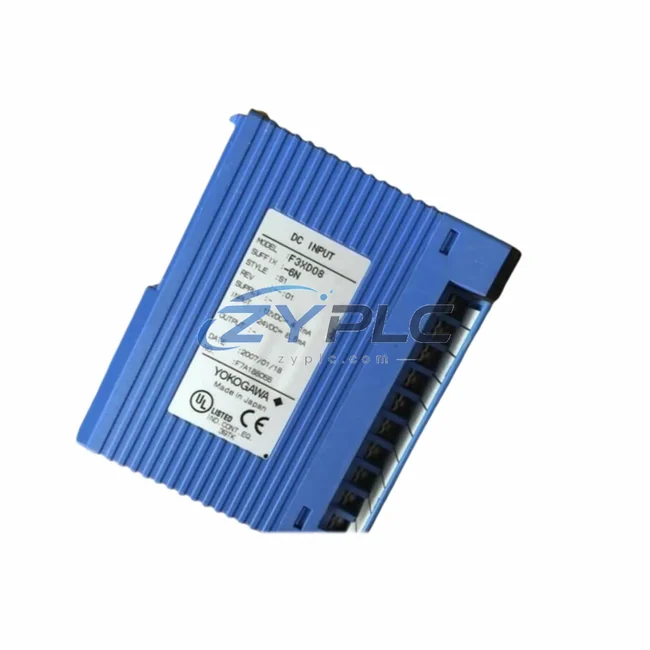

Yokogawa F3XD08-6N Module for STARDOM Automation
The Yokogawa F3XD08-6N is an 8-channel digital input module engineered for the FA-M3 and STARDOM distributed control platforms. In modern industrial environments where energy efficiency is no longer optional, this module plays a critical role in reducing unnecessary signal polling cycles, minimizing controller overhead, and enabling tighter synchronization between field devices and the control layer. By delivering clean, debounced digital input signals with minimal latency, the F3XD08-6N helps production lines maintain optimal equipment utilization rates while cutting down on idle-state operating load.
Designed for demanding factory automation environments, the F3XD08-6N integrates seamlessly into Yokogawa’s broader STARDOM ecosystem, where it works alongside CPU modules, analog I/O, and communication units to form a complete industrial control architecture. Whether deployed in discrete manufacturing, process control, or hybrid automation lines, this module contributes directly to reducing the energy footprint of the control system itself — a factor often overlooked in plant-wide energy audits.
Product Specification Table
| Parameter |
Specification |
| Input Channels |
8 channels (DC digital input) |
| Input Voltage Range |
12–24 VDC |
| Power Consumption |
Low-power design, optimized for continuous 24/7 operation |
| Response Time |
High-speed scan with configurable debounce filtering |
| Operating Efficiency |
Supports high-density I/O mapping to reduce module count |
| Compatible Systems |
Yokogawa FA-M3, STARDOM FCN/FCJ controllers |
| Application Environment |
Industrial automation, process control, discrete manufacturing |
| Energy Saving Value |
Reduces controller scan overhead; enables precise event-driven control |
| Isolation |
Optical isolation for noise immunity in high-interference environments |
| Warranty |
warranty terms confirmed during quotation — tested and verified before shipment |
System Compatibility and Application
The F3XD08-6N does not operate in isolation — its true maintenance planning value emerges when integrated within a well-structured STARDOM or FA-M3 control architecture. In a typical energy-conscious plant layout, the F3XD08-6N collects discrete field signals from limit switches, proximity sensors, and motor status contacts, feeding real-time data into the F3SP71-4S or F3SP76-7S CPU modules. These processors execute ladder or function block programs that govern drive enable/disable logic, preventing motors from running unnecessarily during idle production windows.
On the output side, the F3YD08-6N digital output module works in tandem with the F3XD08-6N to close control loops — for example, cutting power to conveyor drives when upstream sensors detect a line stoppage. This input-output pairing is fundamental to event-driven maintenance planning, where equipment is energized only when process conditions demand it.
For variable-speed drive applications, the F3XD08-6N’s input signals are used to trigger speed reference changes in Yokogawa’s VSDRIVE-compatible inverter interfaces, allowing the control system to ramp motor speeds up or down based on actual production demand rather than running at fixed full-load speeds. This alone can help restore stable operation when a compatible replacement is required.
Power quality and consumption data are captured upstream by the F3AD08-6R analog input module, which reads current transformer and voltage transducer outputs. Combined with the F3XD08-6N’s discrete status signals, the STARDOM controller can build a comprehensive picture of equipment energy states — running, standby, fault, or idle — and log this data for energy reporting and ISO 50001 compliance workflows.
Communication to the plant SCADA or MES layer is handled via the F3NC11-0N Ethernet communication module, which transmits energy and status data using Modbus TCP or OPC-UA protocols. This allows energy managers to monitor real-time consumption trends and identify inefficient equipment cycles without requiring additional hardware. The F3PU20-0S power supply module ensures stable, regulated power delivery to the entire I/O rack, preventing voltage sag events that can cause spurious input readings and unnecessary control system restarts.
For larger installations requiring higher I/O density, the F3XD64-3N 64-channel digital input module can be deployed alongside the F3XD08-6N in a mixed-density rack configuration, optimizing cabinet space while maintaining full signal integrity. The F3RP71-4S remote I/O processor further extends the system’s reach to distributed field panels, enabling condition monitoring at the machine level across large plant footprints.
Maintenance and Replacement Notes
In automotive assembly plants, the F3XD08-6N is commonly deployed to monitor the status of pneumatic actuators, safety light curtains, and part-present sensors across welding and transfer lines. By feeding these signals into the STARDOM FCN controller’s maintenance planning routines, the system can automatically de-energize welding transformers, cooling fans, and conveyor drives during planned micro-stops — reducing standby power draw by a measurable margin across hundreds of production cycles per shift.
In food and beverage processing, where hygiene-driven washdown cycles create predictable equipment downtime windows, the F3XD08-6N’s input signals trigger automated shutdown sequences for pumps, agitators, and heating elements. Rather than relying on operators to manually switch off equipment, the STARDOM controller uses the discrete input data to execute pre-programmed operational-efficiency routines, ensuring consistent compliance with energy reduction targets without adding operator workload.
Predictive maintenance benefits are also significant. By monitoring motor contactor feedback signals through the F3XD08-6N, the control system can detect abnormal start/stop patterns — such as a motor that is cycling on and off more frequently than expected — and flag this as a potential bearing wear or overload condition. Early detection reduces unplanned downtime, avoids energy-intensive emergency repair scenarios, and extends equipment service life.
All units supplied by ZYPLC are sourced from verified supply channels, undergo functional testing prior to shipment, and are covered by a warranty terms confirmed during quotation. Stock availability is maintained to support urgent replacement and MRO procurement needs, with fast international shipping to minimize production line downtime.
Product Sourcing FAQ
Q1: How does the F3XD08-6N contribute to measurable operational stability on the production line?
The F3XD08-6N enables event-driven control logic in the STARDOM or FA-M3 controller, allowing drives, motors, and auxiliary equipment to be de-energized automatically during idle periods. When integrated with variable-speed drive control and power monitoring modules, the system can reduce unnecessary motor runtime and cut standby operating load across multiple production zones.
Q2: Is the F3XD08-6N compatible with both FA-M3 and STARDOM FCN/FCJ platforms?
Yes. The F3XD08-6N is designed for use within Yokogawa’s FA-M3 modular PLC family and is also compatible with STARDOM FCN and FCJ controller racks. It can be mixed with other F3-series I/O modules including analog input, digital output, and communication modules within the same rack configuration.
Q3: What is the recommended replacement or upgrade path if the F3XD08-6N is end-of-life in my system?
For systems requiring higher channel density, the F3XD16-3N (16-channel) or F3XD64-3N (64-channel) modules are direct functional upgrades within the same FA-M3 rack architecture. ZYPLC can advise on compatibility and assist with sourcing both current-production and legacy replacement modules.
Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
All F3XD08-6N units supplied by ZYPLC are functionally tested prior to dispatch to verify channel integrity, input response, and optical isolation performance. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are packaged in anti-static protection and shipped with tracking to ensure safe arrival.
