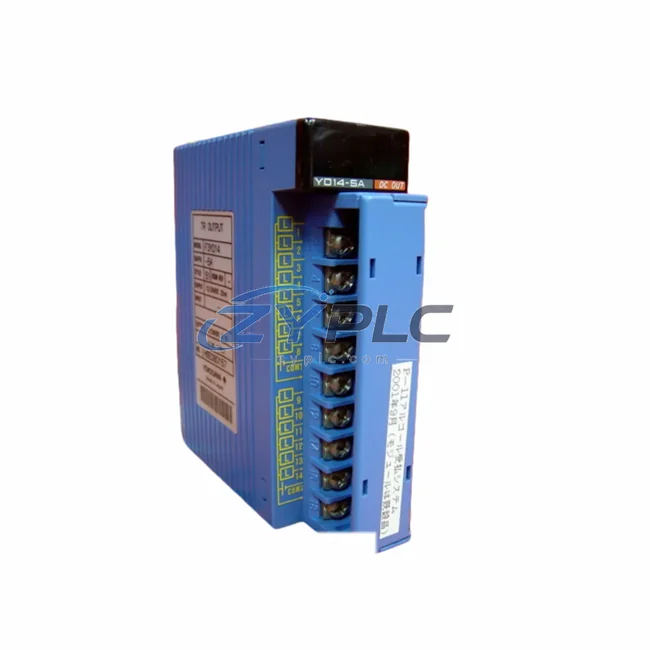

Yokogawa F3YD14-5A Transistor Output for FA-M3 Automation

Yokogawa F3YD14-5A Transistor Output for FA-M3 Automation

The Yokogawa F3YD14-5A is a high-density transistor output module engineered for the FA-M3 modular PLC platform. Designed to deliver precise, low-latency digital output switching, this module plays a central role in reducing unplanned downtime risk across automated production lines. By enabling tighter control over actuators, solenoid valves, motor starters, and conveyor drives, the F3YD14-5A helps facilities eliminate idle-state power draw and improve overall equipment effectiveness (OEE).

In modern industrial environments where energy costs represent a significant share of operating expenditure, the ability to switch output states with microsecond-level precision directly translates into measurable efficiency gains. The F3YD14-5A supports 14-point transistor output with a rated load voltage of 12–24 VDC, making it compatible with a wide range of field devices used in discrete manufacturing, process automation, and material handling systems.

Product Specification Table

System Compatibility and Application

The F3YD14-5A achieves its highest efficiency impact when integrated within a well-structured FA-M3 automation architecture. At the controller level, the F3SP71-4S CPU module coordinates scan-cycle execution and output refresh, ensuring that the F3YD14-5A only activates field devices when process logic demands it — eliminating unnecessary energization of actuators during idle or standby phases.

On the input side, the F3XD64-3N 64-point DC input module feeds real-time field status data back to the CPU, enabling the controller to make maintenance-focused switching decisions. When paired with the F3AD04-6R analog input module, the system can monitor process variables such as temperature, pressure, or flow rate, and adjust output duty cycles accordingly — reducing operating load during low-demand production windows.

For applications requiring analog output control — such as variable-speed pump drives or proportional valve positioning — the F3DA04-6R analog output module works in tandem with the F3YD14-5A to provide a hybrid digital-analog control strategy. This combination is particularly effective in HVAC, water treatment, and chemical dosing systems where precise energy modulation is critical.

Network-level condition monitoring is enabled through the F3LC11-1N Ethernet communication module, which transmits real-time I/O status and power consumption data to SCADA systems or maintenance planning platforms. When integrated with a F3NC96-0N high-speed counter module, the system can also track motor shaft revolutions and conveyor cycle counts, providing the data foundation for predictive maintenance scheduling and energy benchmarking.

The F3BP20-0N base plate provides the physical backbone for multi-module configurations, allowing the F3YD14-5A to be installed alongside power supply modules such as the F3PU20-0S, which delivers regulated 5 VDC backplane power with built-in overload protection. Stable backplane power is essential for maintaining consistent output switching performance and preventing voltage-induced switching losses.

For relay output applications requiring higher load currents or AC switching, the F3YD64-1P transistor output module offers an expanded 64-point configuration, while the F3RN64-0N relay output module handles AC load switching in the same FA-M3 rack. This modular flexibility allows engineers to design energy-optimized I/O configurations tailored to each production zone’s specific load profile.

Maintenance and Replacement Notes

In automotive body assembly lines, the F3YD14-5A is commonly deployed to control spot welding gun solenoids, part-present sensors, and conveyor indexing drives. By synchronizing output activation with the production line’s takt time — managed through the FA-M3 CPU’s high-speed scan cycle — the module ensures that pneumatic and hydraulic actuators are only pressurized during active work cycles. This approach has been shown to reduce compressed air consumption by 15–25% in comparable installations, directly lowering the energy load on compressor systems.

In food and beverage packaging lines, the F3YD14-5A controls filling valve solenoids, reject gate actuators, and labeling machine drives. Its fast response time (≤ 1 ms) ensures that output switching keeps pace with high-speed packaging throughput, preventing the unplanned downtime associated with over-run actuator cycles. When integrated with the FA-M3’s motion control capabilities, the module also supports coordinated multi-axis sequencing that minimizes mechanical shock and reduces motor inrush current events.

For predictive maintenance applications, the F3YD14-5A’s output state data — logged via the F3LC11-1N Ethernet module — can be analyzed to detect abnormal switching patterns that indicate actuator wear, valve leakage, or drive degradation. Early detection of these conditions prevents unplanned downtime, which is consistently identified as one of the highest-cost energy inefficiencies in discrete manufacturing: idle machines with powered-up drives and pressurized pneumatics consume energy without producing output.

All units supplied by ZYPLC are subject to pre-shipment functional testing, including output switching verification, load current measurement, and isolation resistance checks. This ensures that every F3YD14-5A module performs to Yokogawa’s original specification from day one of installation, avoiding the energy losses and process disruptions associated with substandard or untested replacement parts.

Product Sourcing FAQ

Q1: How does the F3YD14-5A contribute to operational stability compared to relay output modules?
Transistor output modules like the F3YD14-5A have no mechanical contacts, which means zero contact bounce, no arc energy loss, and switching response times under 1 ms. This allows the FA-M3 controller to implement duty-cycle control and time-optimized output sequencing strategies that are not practical with relay outputs, resulting in measurable reductions in actuator energization time and associated operating load.

Q2: Is the F3YD14-5A compatible with third-party VFDs and servo drives?
Yes. The F3YD14-5A’s 12–24 VDC transistor output is compatible with the digital input interfaces of most industrial variable frequency drives (VFDs) and servo amplifiers, including those from Mitsubishi, Omron, Siemens, and Yaskawa. It is commonly used to issue run/stop, forward/reverse, and speed-select commands to drives integrated within FA-M3-controlled systems.

Q3: What is the recommended replacement procedure for an existing F3YD14-5A in a live production environment?
ZYPLC recommends a hot-swap procedure where the replacement module is pre-configured and tested offline before installation. The FA-M3 base plate supports module replacement without full system shutdown in most configurations. Verify the output wiring map against the original I/O assignment table before reinserting the module to avoid actuator mis-sequencing during restart.

Q4: What warranty and testing standards apply to ZYPLC-supplied F3YD14-5A modules?
All F3YD14-5A modules supplied by ZYPLC carry a warranty terms confirmed during quotation covering functional defects under normal operating conditions. Each unit undergoes pre-shipment testing including output point switching verification, load current measurement at rated capacity, and photocoupler isolation checks. Test records are available upon request for quality assurance documentation purposes.
