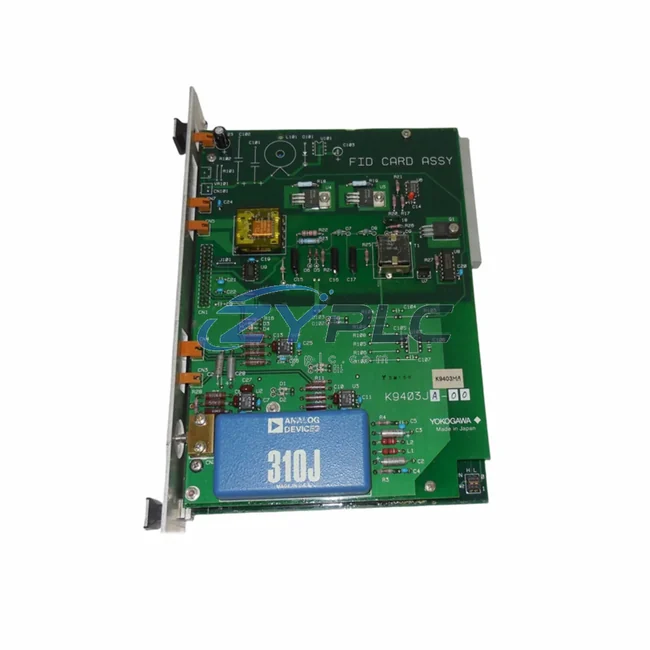

Yokogawa K9403JA-02 FID Card Module for CENTUM VP

Yokogawa K9403JA-02 FID Card Module for CENTUM VP: Compatibility and Replacement Notes

In modern distributed control system (DCS) deployments, every module must be evaluated not as a standalone component but as an integral node within a layered automation architecture. The Yokogawa K9403JA-02 FID Card Module is engineered specifically for seamless integration within the CENTUM VP platform — Yokogawa’s flagship DCS environment — where it serves as a critical field interface device (FID) card responsible for bridging the control layer with field instrumentation, I/O subsystems, and process signals across demanding industrial environments.

Understanding the K9403JA-02 requires understanding the CENTUM VP architecture itself. CENTUM VP organizes control functions across a hierarchical structure: at the top sits the engineering and operations layer (HIS — Human Interface Station), followed by the control layer (FCS — Field Control Station), then the I/O and field interface layer where the K9403JA-02 operates, and finally the field device layer comprising transmitters, actuators, and final control elements. The K9403JA-02 occupies the I/O interface tier, ensuring that analog and digital signals from field instruments are accurately conditioned, converted, and delivered to the FCS for real-time process control execution.

Product Specification Table

System Compatibility Notes

The K9403JA-02 does not operate in isolation. Its value is realized through tight coordination with upstream and downstream components across the full CENTUM VP system architecture. In a typical CENTUM VP installation, the K9403JA-02 FID card is installed within a node unit (such as the ANB10D or ANB11D node unit) that houses multiple I/O cards and connects to the Field Control Station via the ESB bus or V-net/IP network backbone.

At the control layer, the Yokogawa AFV10D Field Control Station (FCS) or AFV30D redundant FCS processes the signals delivered by the K9403JA-02, executing control strategies including PID loops, cascade control, and sequence logic. The FCS relies on the FID card to maintain signal integrity and timing accuracy — any degradation at the I/O interface layer directly impacts control loop performance.

Power distribution to the node unit and its installed cards, including the K9403JA-02, is managed by dedicated power supply modules such as the Yokogawa PW481 or PW482 power supply units, which provide redundant 24VDC rails to ensure uninterrupted operation even during single-point power failures. This redundant power architecture is a fundamental requirement in process industries where control system downtime carries significant safety and financial consequences.

For communication redundancy, the CENTUM VP architecture supports dual V-net/IP rings, and the K9403JA-02 participates in this redundant communication topology through its host node unit. Communication gateways such as the Yokogawa ALR111 or ALE111 Vnet/IP communication module manage the data exchange between the I/O layer and the control network, ensuring deterministic scan times and fault-tolerant data paths.

At the human-machine interface layer, operators interact with the process through Yokogawa HIS (Human Interface Stations) running CENTUM VP’s CAMS for HIS or Exaopc OPC server, which aggregates real-time data from all FCS units — data that originates at the field level through modules like the K9403JA-02. Terminal boards and marshalling components such as the Yokogawa TB820V or TB810 terminal boards provide the physical wiring interface between field cables and the FID card’s I/O connectors, simplifying installation and enabling modular maintenance without disturbing field wiring.

In redundant system designs, the K9403JA-02 may be paired with a redundant counterpart card within the same node unit, supported by the CENTUM VP’s built-in I/O redundancy architecture. This ensures that a single card failure does not interrupt process monitoring or control — a critical requirement in continuous process industries such as oil refining, chemical production, and power generation.

Industrial Application Notes

The Yokogawa K9403JA-02 FID Card Module finds application across a broad spectrum of process industries where CENTUM VP DCS platforms are deployed as the primary automation backbone.

In petroleum refining and petrochemical plants, CENTUM VP systems manage thousands of I/O points across distillation columns, heat exchangers, reactors, and storage facilities. The K9403JA-02 serves as the interface between field transmitters (pressure, temperature, flow, level) and the FCS, enabling precise process variable monitoring and closed-loop control essential for product quality and operational safety.

In power generation facilities — including thermal, combined-cycle, and nuclear plants — the CENTUM VP platform provides the supervisory control layer for boiler management, turbine control, and balance-of-plant systems. FID card modules like the K9403JA-02 ensure that critical analog signals from thermocouples, RTDs, and pressure transmitters are accurately digitized and delivered to the control layer with minimal latency.

In water and wastewater treatment plants, CENTUM VP DCS systems coordinate pump stations, chemical dosing systems, filtration processes, and effluent monitoring. The K9403JA-02 supports the I/O density required for distributed field instrumentation across large treatment facilities, reducing the need for local control panels and centralizing process visibility.

In mining and metallurgical operations, where harsh environments and high-vibration conditions challenge control system reliability, the industrial-grade construction of the K9403JA-02 and its CENTUM VP ecosystem provides the robustness required for continuous operation in ore processing, smelting, and materials handling applications.

In pharmaceutical and fine chemical manufacturing, where batch process control and regulatory compliance (FDA 21 CFR Part 11, GAMP 5) are paramount, the CENTUM VP platform’s audit trail and data integrity features — supported by accurate I/O acquisition through modules like the K9403JA-02 — provide the documentation and traceability required for validated production environments.

Product Compatibility FAQ

Q1: Is the K9403JA-02 compatible with both CENTUM VP R5 and R6 system versions?
The K9403JA-02 FID Card Module is designed for the CENTUM VP platform and is generally compatible across CENTUM VP R5.x and R6.x system versions, subject to the specific node unit and FCS firmware revision in use. For mission-critical upgrades or expansions, we recommend verifying compatibility against your existing FCS model (AFV10D, AFV30D, or equivalent) and node unit generation. Our technical team can assist with cross-referencing your system’s hardware revision against the K9403JA-02 specification sheet prior to procurement.

Q2: Can the K9403JA-02 be installed in an existing CENTUM VP cabinet without system shutdown?
CENTUM VP supports hot-standby and online replacement procedures for certain I/O modules, depending on the redundancy configuration of the node unit and whether the slot is configured for online insertion and removal (OIR). Whether the K9403JA-02 supports OIR in your specific cabinet configuration depends on the node unit type and system software settings. For planned maintenance windows, the warranty terms confirmed during quotation provided with each K9403JA-02 unit ensures that replacement modules are tested and verified before installation, minimizing commissioning risk.

Q3: What long-term support and spare parts availability can be expected for the K9403JA-02?
As a CENTUM VP platform component, the K9403JA-02 is supported within Yokogawa’s long-term parts availability program. For end-users managing aging CENTUM VP installations, maintaining a strategic spare inventory of FID card modules is a recognized best practice to mitigate the risk of extended downtime due to card failure. Each K9403JA-02 supplied by ZYPLC is covered by a warranty terms confirmed during quotation and has been functionally tested prior to shipment, providing confidence in module reliability for both immediate deployment and long-term spare stock management.
