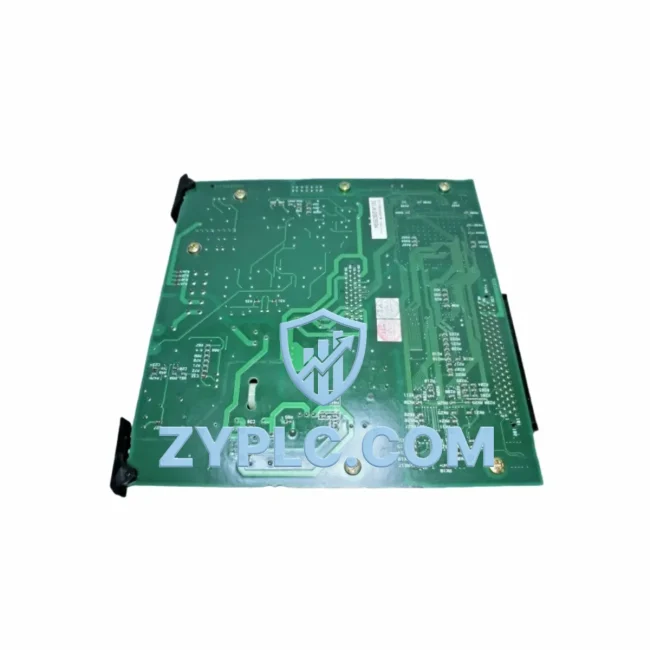

Yokogawa K9634DB-01 DCS Communication Module for Centum VP Systems

Yokogawa K9634DB-01 Industrial Network Interface for Centum VP Systems: Bridging the Industrial Data Link in Smart Factory Environments

The Yokogawa K9634DB-01 is a high-performance DCS communication gateway module engineered for seamless integration within the Centum VP distributed control system architecture. Designed to serve as the critical data bridge between field instrumentation, PLC controllers, remote I/O stations, HMI panels, SCADA platforms, and upper-level MES/ERP systems, the K9634DB-01 delivers deterministic, low-latency communication across complex industrial network topologies. Whether deployed in petrochemical refineries, power generation facilities, pharmaceutical manufacturing lines, or advanced smart factory environments, this module ensures that every data packet — from analog sensor readings to discrete alarm signals — travels reliably across the automation hierarchy.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the K9634DB-01 sits at the heart of the plant’s communication backbone. Signal acquisition begins at the field level, where Yokogawa EJA-series pressure transmitters and YTA-series temperature transmitters feed live process data via HART or FOUNDATION Fieldbus into the Centum VP field control station (FCS). The K9634DB-01 gateway module aggregates these signals and converts them into Ethernet-based packets compatible with the plant’s Vnet/IP control network — Yokogawa’s proprietary high-speed, fault-tolerant industrial Ethernet backbone.

From the Vnet/IP layer, data flows upward to the Yokogawa FAST/TOOLS SCADA server, where operators gain real-time visibility into process variables, alarm states, and trend histories. Simultaneously, the K9634DB-01 exposes OPC UA endpoints that allow the Yokogawa Exaopc OPC server to relay structured data to upper-level MES platforms and historian databases, enabling production analytics and KPI dashboards without disrupting the real-time control loop.

At the device level, the module interfaces with Yokogawa VigilantPlant remote I/O units and Centum VP remote node units (RNUs) deployed across geographically distributed process areas. This architecture eliminates the need for dedicated point-to-point wiring between field cabinets and the central control room, dramatically reducing installation costs and cable management complexity. For drive integration, the K9634DB-01 communicates with Yokogawa VS-series variable frequency drives via Modbus TCP, enabling closed-loop speed control and energy monitoring from a single SCADA screen.

When legacy equipment — such as older Yokogawa CENTUM CS 3000 controllers or third-party Siemens S7-series PLCs — must be integrated into the Centum VP environment, the K9634DB-01 acts as a transparent protocol bridge, converting proprietary or legacy communication frames into standard industrial Ethernet packets. This capability is particularly valuable during phased plant modernization projects, where new and legacy systems must coexist without production interruption.

Edge computing scenarios are equally well-served: the K9634DB-01 can forward pre-processed data to an industrial edge gateway running Yokogawa’s OpreX Asset Management suite, enabling predictive maintenance algorithms to analyze vibration, temperature, and flow trends before anomalies escalate into unplanned downtime events.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant may simultaneously operate FOUNDATION Fieldbus devices, HART-enabled transmitters, Modbus RTU legacy controllers, and modern OPC UA-capable systems — each speaking a different language, creating data silos that prevent holistic process visibility.

The Yokogawa K9634DB-01 directly addresses this challenge by functioning as a multi-protocol gateway that normalizes heterogeneous data streams into a unified Ethernet-based format consumable by SCADA, HMI, and MES systems. Operators no longer need to maintain separate engineering workstations for each protocol domain; instead, a single Centum VP engineering station provides a consolidated view of the entire plant network.

Remote monitoring and diagnostics are equally transformed. With the K9634DB-01 in place, maintenance engineers can access real-time device health data — including communication error counters, signal quality metrics, and module temperature readings — from any authorized workstation on the plant intranet or via secure VPN connection. This capability reduces mean time to repair (MTTR) by enabling remote fault isolation before dispatching field technicians.

Production line transparency is further enhanced through the module’s support for time-stamped data logging. Every process event, alarm acknowledgment, and setpoint change is recorded with millisecond-resolution timestamps, providing the audit trail required for regulatory compliance in pharmaceutical and food processing applications. System expansion is straightforward: additional Centum VP field control stations and remote I/O nodes can be added to the Vnet/IP network without reconfiguring the K9634DB-01, supporting phased capacity growth aligned with production demand.

All units are pre-tested prior to shipment using Yokogawa-certified test procedures, verifying communication integrity, protocol handshake performance, and module self-diagnostics. In-stock inventory ensures short lead times for urgent replacement or project commissioning requirements, backed by a 12-month warranty covering manufacturing defects and communication performance.

Industrial Connectivity FAQ

Q1: What is the communication latency of the Yokogawa K9634DB-01 in a Centum VP network?
The K9634DB-01 is designed for deterministic, low-latency communication within the Vnet/IP architecture. Typical cyclic scan times are configurable from 100 ms to 1000 ms depending on the number of connected nodes and data volume, ensuring real-time responsiveness for process control applications.

Q2: Is the K9634DB-01 compatible with third-party SCADA systems beyond Yokogawa FAST/TOOLS?
Yes. The module supports OPC DA and OPC UA interfaces, enabling integration with leading third-party SCADA platforms including Wonderware InTouch, Ignition by Inductive Automation, and Siemens WinCC, provided the SCADA system supports standard OPC client connectivity.

Q3: How does the K9634DB-01 ensure network stability in high-noise industrial environments?
The module incorporates hardware-level noise filtering, redundant communication path support via Vnet/IP dual-ring topology, and watchdog timer functions that automatically reinitialize communication links upon detecting network anomalies, minimizing unplanned communication interruptions.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
The 12-month warranty covers all manufacturing defects, communication hardware failures, and firmware-related performance issues under normal operating conditions. Each K9634DB-01 unit undergoes pre-shipment functional testing including protocol handshake verification, Ethernet link integrity checks, and module self-diagnostic routines before dispatch.
