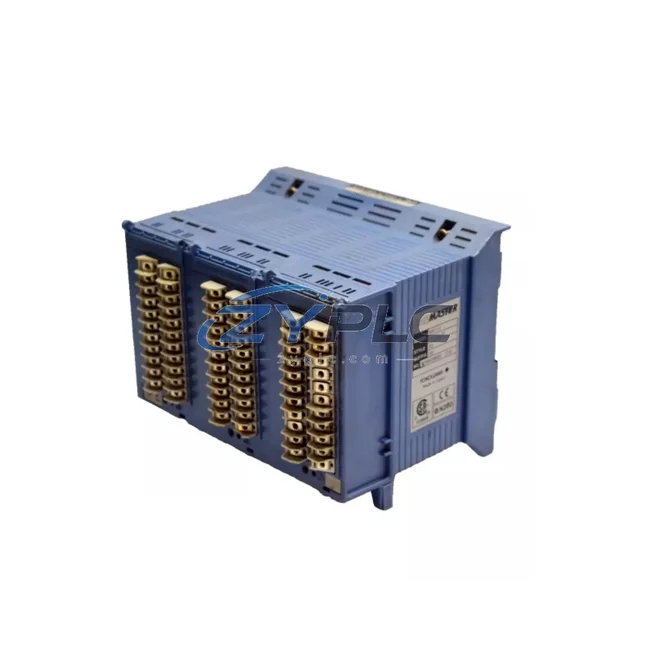

Yokogawa MX110-VTD-L30 Thermocouple Input Module for MX100 Systems

Yokogawa MX110-VTD-L30 Industrial Network Interface for MX100 Systems: Precision Data Links for Smart Factory Connectivity

In modern industrial environments, the integrity of data flowing from field instruments to control systems defines the efficiency of the entire operation. The Yokogawa MX110-VTD-L30 is a 30-channel thermocouple and voltage input module engineered for the MX100 Portable Data Acquisition System, delivering high-accuracy signal acquisition, multi-protocol communication, and seamless integration into SCADA, HMI, and distributed control architectures. Whether deployed on a production line, in a power generation facility, or within a process automation network, the MX110-VTD-L30 serves as a critical node in the industrial data chain — bridging physical measurement with digital intelligence.

As factories evolve toward Industry 4.0 standards, the demand for reliable, real-time data acquisition modules has never been greater. The MX110-VTD-L30 answers this demand with a robust hardware design, wide thermocouple type compatibility (K, J, T, E, R, S, B, N, W), and voltage input ranges that accommodate diverse sensor outputs across temperature monitoring, energy analysis, and process control applications. Every unit is factory-tested and ships with a warranty terms confirmed during quotation, ensuring measurement integrity from day one of deployment.

Compatibility & Integration Notes

Connected Automation Data Flow

The MX110-VTD-L30 operates as a front-end signal acquisition module within the MX100 mainframe, collecting thermocouple and voltage signals from field sensors and transmitting structured data upstream through the system’s Ethernet backbone. In a typical smart factory deployment, temperature sensors and process transmitters feed raw signals into the MX110-VTD-L30’s 30 input channels. The MX100 mainframe — often paired with the MX110-UNV-M10 universal input module for mixed-signal environments — processes and time-stamps this data before forwarding it via TCP/IP to the plant’s data network.

At the network layer, the MX190 Wireless Communication Module extends the MX100 system’s reach to wireless LAN infrastructure, enabling untethered data collection in areas where cabling is impractical. For facilities running Yokogawa’s CENTUM VP Distributed Control System, the MX100 data stream integrates directly into the DCS historian, providing operators with a unified view of process variables across the plant floor. The STARDOM FCN-500 Field Control Node can serve as an edge controller, pre-processing MX100 acquisition data before forwarding aggregated values to the central SCADA server — reducing network load while maintaining sub-second update cycles.

In drive and motor control applications, the MX110-VTD-L30 monitors winding temperatures on variable frequency drives and servo systems, with alarm thresholds configured through Yokogawa’s DAQSTANDARD software. When temperature exceedances are detected, the system triggers alerts to the plant’s ProSafe-RS Safety Instrumented System, enabling automated protective shutdowns without operator intervention. This closed-loop data path — from sensor to safety system — exemplifies the MX110-VTD-L30’s role as a connectivity backbone rather than a standalone recorder.

For remote I/O expansion, the MX100 system communicates with Yokogawa AAB841 Analog Input Modules deployed at remote panel locations, consolidating distributed measurement points into a single acquisition network. HMI terminals running Yokogawa’s FAST/TOOLS SCADA platform display real-time trend data sourced from the MX110-VTD-L30, giving process engineers immediate visibility into temperature profiles, voltage fluctuations, and alarm states. Edge gateways such as the Yokogawa OpreX Field Device Integrator further extend this data flow to cloud-based analytics platforms, completing the digital thread from field device to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where measurement data remains trapped within standalone instruments, inaccessible to the broader control and monitoring infrastructure. The MX110-VTD-L30 directly addresses this problem through its native Ethernet connectivity and compatibility with standard industrial communication protocols including Modbus TCP and TCP/IP.

In facilities where legacy equipment communicates over proprietary or older serial protocols, the MX100 system’s Modbus TCP gateway capability — enabled via the MX190 communication module — acts as a protocol bridge, translating field-level data into a format consumable by modern SCADA and MES platforms. This eliminates the need for costly standalone protocol converters and reduces integration complexity when connecting to third-party control systems or historian databases.

Production line transparency is another key benefit. By deploying the MX110-VTD-L30 at critical measurement points — furnace zones, cooling circuits, motor housings, and power distribution panels — plant managers gain a real-time thermal map of the entire production process. Anomalies that previously required manual inspection can now be detected automatically, with alarm notifications pushed to control room displays or mobile devices within seconds of threshold breach.

Remote diagnostics capability further reduces downtime. Maintenance engineers can access live channel data, review historical trends, and adjust alarm parameters from any networked workstation without physically visiting the measurement location. This is particularly valuable in hazardous environments — chemical plants, offshore platforms, and high-voltage substations — where minimizing personnel exposure is a safety priority. The MX110-VTD-L30’s warranty terms confirmed during quotation and factory-tested calibration ensure that every unit shipped meets Yokogawa’s stringent accuracy specifications, providing confidence in measurement integrity from day one of deployment.

System scalability is built into the MX100 architecture. Additional MX110-VTD-L30 modules can be added to the mainframe as measurement requirements grow, and multiple MX100 units can be networked together to form a distributed acquisition system spanning large facilities. This modular approach protects capital investment and allows phased expansion aligned with production growth, without disrupting existing network topology or SCADA configurations.

Industrial Connectivity FAQ

Q1: What communication protocols does the MX110-VTD-L30 support for SCADA integration?
The MX110-VTD-L30 operates within the MX100 system, which supports Ethernet (TCP/IP) as its primary network interface. Modbus TCP communication is available via the MX190 gateway module, enabling direct integration with SCADA platforms such as Yokogawa FAST/TOOLS, Wonderware, and Ignition. USB connectivity is also provided for local PC-based data logging using DAQSTANDARD software. Communication latency is typically under 100 ms on a standard 100 Mbps industrial LAN.

Q2: How does the MX110-VTD-L30 ensure network stability in high-noise industrial environments?
The module features isolated input channels that suppress common-mode noise and ground loop interference — common issues in industrial settings with heavy motor loads and switching equipment. The MX100 mainframe’s Ethernet port supports standard network redundancy configurations, and the system’s internal watchdog functions ensure continuous data acquisition even during brief network interruptions, maintaining data integrity across the full 30-channel array.

Q3: Can the MX110-VTD-L30 be expanded to support additional measurement points?
Yes. The MX100 system supports multiple input module slots, allowing additional MX110-VTD-L30 or MX110-UNV-M10 modules to be installed as channel requirements increase. Multiple MX100 mainframes can also be networked via Ethernet to create a distributed acquisition system, with all data consolidated at a central SCADA or historian server for unified monitoring and reporting.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every MX110-VTD-L30 unit undergoes functional verification and calibration checks prior to shipment, confirming channel accuracy, input range performance, and communication interface integrity. The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. Stock is maintained for prompt global dispatch, and Yokogawa’s service network provides technical support and calibration services throughout the warranty period and beyond.
