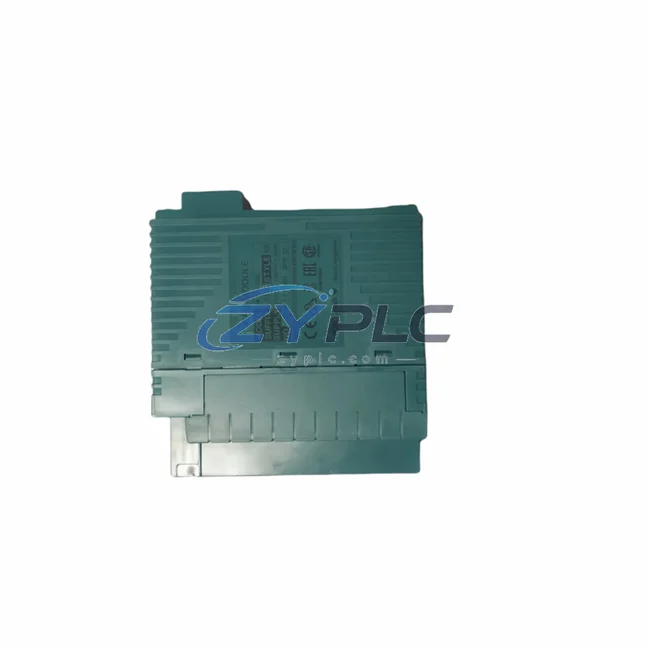

Yokogawa NFAI835-S51 Analog Input for STARDOM

Yokogawa NFAI835-S51 Analog Input for STARDOM: Control Layer Coordination and system integration

The Yokogawa NFAI835-S51 is a high-density analog input module purpose-built for the STARDOM network-based control platform. Within a layered automation architecture, this module occupies a critical position at the I/O layer, converting field-level analog signals into digitized process data that feeds directly into the STARDOM FCN-500 or FCJ-300 controllers. By serving as the primary signal acquisition interface, the NFAI835-S51 ensures that temperature, pressure, flow, and level measurements from transmitters and sensors are captured with industrial-grade accuracy and delivered to the control layer without latency or signal degradation. Its system integration capability means it operates not as a standalone device, but as a fully coordinated node within the broader STARDOM system hierarchy — aware of upstream controller logic, downstream field instrumentation, and peer I/O modules sharing the same backplane bus.

Product Specification Table

System Compatibility Notes

In a complete STARDOM control architecture, the NFAI835-S51 does not operate in isolation. It functions as part of a tightly coordinated ecosystem of modules and controllers that together deliver reliable, deterministic process control across every system layer. At the control layer, the FCN-500 autonomous controller executes IEC 61131-3 logic programs and manages communication with supervisory SCADA or DCS hosts over Ethernet. For compact or remote installations, the FCJ-300 controller provides equivalent processing in a smaller footprint, making it ideal for skid-mounted packages or satellite control stations where panel space is constrained.

Power integrity across the I/O rack is maintained by the NFPS100-S61 power supply module, which delivers regulated 24 V DC to all installed I/O cards and the controller backplane. In mission-critical applications — such as offshore platforms, chemical reactors, or power generation auxiliaries — engineers routinely deploy a redundant pair of NFPS100-S61 units to ensure uninterrupted operation during a single-point power failure, eliminating the power layer as a potential system vulnerability.

Alongside the NFAI835-S51 at the I/O layer, a fully specified STARDOM node typically includes the NFAI143-S51 for thermocouple and RTD temperature inputs, the NFAO120-S51 analog output module for driving control valves and variable-frequency drives, and the NFDV551-S51 digital input/output module for discrete on/off signals such as motor starters, solenoid valves, and alarm contacts. This combination of analog and digital I/O modules allows a single STARDOM node to handle mixed-signal field instrumentation without requiring additional signal conditioners or marshalling panels, reducing both cabinet footprint and wiring complexity.

At the network and communication layer, the NFCP100-S61 communication processor enables Ethernet-based connectivity between the STARDOM node and upstream systems, supporting OPC-DA, Modbus/TCP, and STARDOM-native protocols. When integration with legacy Modbus RTU field devices or third-party PLCs is required, the NFGP100-S61 gateway module bridges serial and Ethernet domains, preserving data integrity across protocol boundaries and enabling seamless system integration with heterogeneous plant networks.

The physical backbone of the entire I/O assembly is the NFBU100-S61 base unit, which provides mechanical mounting, power distribution rails, and the internal ESB data bus that links every I/O module to the controller. Selecting the correct base unit size during the engineering phase is essential, as it determines the maximum number of I/O slots available for future expansion and directly influences the system’s long-term scalability.

Industrial Application Notes

The NFAI835-S51 finds its strongest application in industries where continuous analog measurement is the foundation of safe and efficient operation. In petrochemical refining, it captures pressure and temperature readings from distillation columns and heat exchangers, feeding real-time data to advanced process control (APC) strategies running on the FCN-500. In water and wastewater treatment, the module monitors flow rates, pH levels, and dissolved oxygen concentrations across multiple treatment stages, enabling precise chemical dosing and aeration control with minimal operator intervention.

In power generation facilities, the NFAI835-S51 interfaces with turbine bearing temperature sensors and boiler drum level transmitters, providing the control system with the fast, accurate measurements needed to maintain thermal efficiency and protect critical rotating equipment. Mining and metallurgical operations leverage the module for furnace temperature profiling and conveyor load monitoring, where harsh ambient conditions — wide temperature swings, vibration, and airborne particulates — demand robust, wide-temperature-rated hardware that the NFAI835-S51 is specifically designed to withstand.

In packaging and discrete manufacturing lines, analog process variables such as web tension, fill weight, or servo position must be integrated into a STARDOM-supervised cell alongside digital sequencing logic handled by the NFDV551-S51. The modular nature of the STARDOM platform means that adding an NFAI835-S51 to an existing rack requires no re-engineering of the controller program beyond tag configuration, significantly reducing commissioning time and total cost of ownership. For pharmaceutical and food processing environments, the module’s isolated channel design prevents ground loops and cross-channel interference, ensuring measurement integrity in electrically noisy production environments.

Product Compatibility FAQ

Q1: Can the NFAI835-S51 operate in a redundant I/O configuration within the STARDOM system?
Yes. The STARDOM platform supports redundant I/O when paired with dual FCN-500 controllers and the appropriate NFBU100-S61 base unit configuration. The NFAI835-S51 can be mirrored on a backup base unit, and the system performs automatic switchover if the primary module or ESB communication path fails, ensuring zero data loss for critical analog measurements. This redundancy architecture is particularly important in continuous process industries where a single measurement failure can trigger an unplanned plant shutdown.

Q2: What is required to integrate the NFAI835-S51 into an existing STARDOM rack that currently uses only digital I/O modules?
Integration is straightforward and does not require system downtime in most configurations. Insert the NFAI835-S51 into an available slot on the NFBU100-S61 base unit, connect field wiring to the terminal block, and configure the new analog input tags in the STARDOM engineering environment (FCN/FCJ Logic Designer). No firmware upgrade to the FCN-500 or FCJ-300 controller is typically required, and the module is auto-recognized on the internal ESB once powered. ZYPLC’s technical team can provide pre-commissioning configuration support to accelerate deployment.

Q3: Does ZYPLC provide warranty and long-term supply support for the NFAI835-S51?
Yes. Every NFAI835-S51 shipped by ZYPLC includes a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains strategic inventory of STARDOM I/O modules, controllers, power supplies, and communication processors to support both new-build projects and emergency replacement needs, minimizing plant downtime and protecting your capital investment in the STARDOM control architecture.
