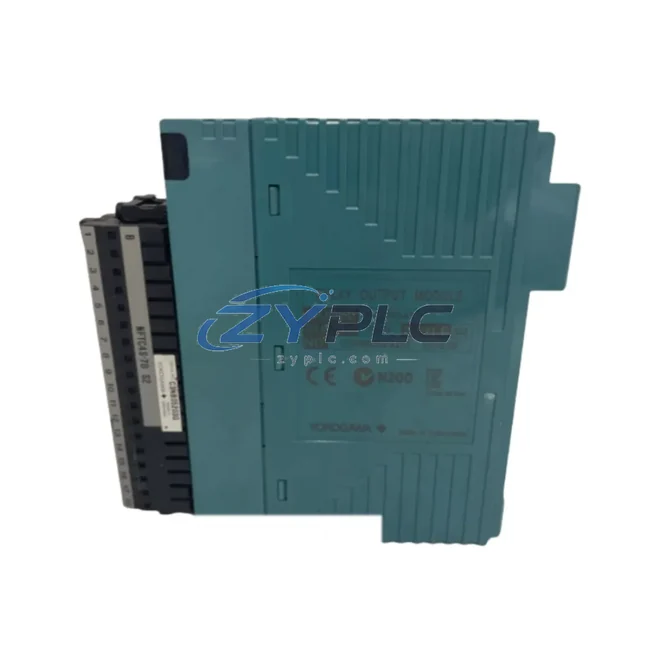

Yokogawa NFDR541-P50 Relay Output Module for STARDOM Systems

Yokogawa NFDR541-P50: Industrial Data Link for STARDOM Smart Factory Systems

The Yokogawa NFDR541-P50 is a high-reliability relay output module engineered for the STARDOM FCN/FCJ distributed control system platform. Designed to serve as a critical node in industrial data communication architectures, the NFDR541-P50 bridges field-level relay signals with upper-layer control and monitoring networks, enabling seamless data flow across PLC controllers, remote I/O stations, HMI panels, SCADA systems, and edge gateways in modern smart factory environments.

In today’s connected industrial landscape, every relay output point is more than a switching contact — it is a data source. The NFDR541-P50 integrates directly into the STARDOM FCN controller backplane, where it participates in the real-time I/O scan cycle managed by the FCN CPU module. Output status, diagnostic feedback, and fault signals are continuously mapped into the controller’s process image, making them instantly accessible to SCADA supervisory layers via Modbus TCP, OPC-UA, and IEC 61850 communication stacks supported by the STARDOM platform.

Compatibility & Integration Notes

Connected Automation Data Flow

The NFDR541-P50 operates at the intersection of field actuation and digital intelligence. In a typical STARDOM-based automation architecture, the module is installed in the FCN-100 or FCN-500 controller chassis alongside analog input modules such as the NFAI141-S50 and digital input modules like the NFDI141-S50. Together, these modules form a complete I/O subsystem that feeds real-time process data upward through the FCN CPU to the plant-wide network.

At the field level, the NFDR541-P50 drives relay contacts connected to motor starters, solenoid valves, alarm annunciators, and interlock circuits. These actuator states are continuously reflected in the FCN controller’s data table, where the STARDOM FAST/TOOLS SCADA software reads and logs every state change with millisecond-level timestamping. Operators at HMI workstations running Yokogawa’s Exaopc OPC server can monitor relay output status in real time, enabling rapid fault identification and remote acknowledgment without dispatching field personnel.

For multi-node installations, the NFDR541-P50 works in concert with STARDOM FCJ field controllers deployed at remote substations or satellite process units. These FCJ nodes communicate back to the central FCN controller over Ethernet TCP/IP, consolidating distributed relay output data into a unified SCADA view. When integrated with Yokogawa CENTUM VP or third-party DCS platforms via OPC-UA, the NFDR541-P50’s output data becomes part of a plant-wide historian, supporting production analytics, energy management, and predictive maintenance workflows.

In drive and motor control applications, the relay outputs of the NFDR541-P50 interface directly with Yaskawa or ABB variable frequency drives, providing run/stop commands and fault reset signals that are coordinated by the FCN controller’s ladder logic or function block programs. Simultaneously, Yokogawa EJX pressure transmitters and YTA temperature transmitters feed analog process values into adjacent NFAI modules, creating a closed-loop control chain where sensor data drives relay output decisions in real time.

Edge computing nodes, such as the Yokogawa OpreX Edge Controller, can subscribe to the FCN’s OPC-UA server to pull relay output telemetry for local analytics, anomaly detection, and cloud forwarding — extending the NFDR541-P50’s data reach from the factory floor to enterprise MES and ERP systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control data across incompatible protocols and isolated subsystems. Legacy relay output modules often operate as one-way actuators with no feedback path to supervisory systems, creating blind spots in production monitoring and making fault diagnosis slow and labor-intensive.

The Yokogawa NFDR541-P50, integrated within the STARDOM FCN platform, directly addresses these data isolation problems. Because the module’s output states are continuously mapped into the FCN controller’s process image and exposed via Modbus TCP and OPC-UA, every relay actuation event becomes a traceable, time-stamped data point accessible to SCADA, MES, and cloud analytics platforms. This eliminates the traditional gap between field actuation and supervisory visibility.

For sites running mixed-protocol environments — where legacy Modbus RTU devices coexist with modern Ethernet-based systems — the STARDOM FCN’s built-in protocol gateway capability allows the NFDR541-P50’s relay data to be bridged across protocol boundaries without additional hardware converters. This simplifies network architecture, reduces latency, and lowers the risk of data loss during protocol translation.

Remote diagnostics are equally enhanced. Maintenance engineers can query the FCN controller’s diagnostic registers over Ethernet to retrieve relay output cycle counts, contact wear indicators, and module health status — all without physical access to the control panel. This capability is especially valuable for unmanned remote stations, offshore platforms, and geographically distributed utility networks where on-site intervention is costly and time-consuming.

Production line transparency is further improved through integration with STARDOM FAST/TOOLS trend displays and alarm management modules, which can be configured to generate automatic alerts when relay output states deviate from expected patterns — enabling proactive maintenance scheduling and reducing unplanned downtime.

System expansion is straightforward: additional NFDR541-P50 modules can be added to the FCN chassis or distributed across FCJ remote nodes without reconfiguring the network topology, supporting phased capacity growth aligned with production scale-up requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Yokogawa NFDR541-P50 support for SCADA integration?
The NFDR541-P50 itself is a relay output module that communicates via the STARDOM FCN backplane bus. At the network level, the FCN CPU module exposes relay output data through Modbus TCP, OPC-UA, and IEC 61850 protocols, making it compatible with all major SCADA and HMI platforms including Yokogawa FAST/TOOLS, Wonderware, Ignition, and iFIX.

Q2: How does the NFDR541-P50 ensure network stability in high-cycle relay applications?
The module is designed for industrial-grade reliability with isolated relay contacts rated for high-cycle operation. The FCN controller’s deterministic scan cycle ensures that output commands are executed with consistent timing, preventing network-induced jitter from affecting relay switching sequences. Redundant Ethernet configurations on the FCN CPU further protect against single-point network failures.

Q3: Can the NFDR541-P50 be integrated into an existing third-party DCS or PLC system?
Yes. When hosted in a STARDOM FCN controller configured as an OPC-UA server or Modbus TCP slave, the NFDR541-P50’s relay output data can be accessed by any OPC-UA or Modbus TCP compatible DCS, PLC, or SCADA system. This makes it suitable for hybrid automation environments where Yokogawa and third-party control platforms coexist.

Q4: What warranty and pre-shipment testing does the NFDR541-P50 include?
Every NFDR541-P50 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify relay contact integrity, backplane communication, and module identification. A warranty terms confirmed during quotation is provided from the date of shipment, covering manufacturing defects and communication failures. Expedited global shipping via DHL and FedEx is available, with full tracking provided upon dispatch.
