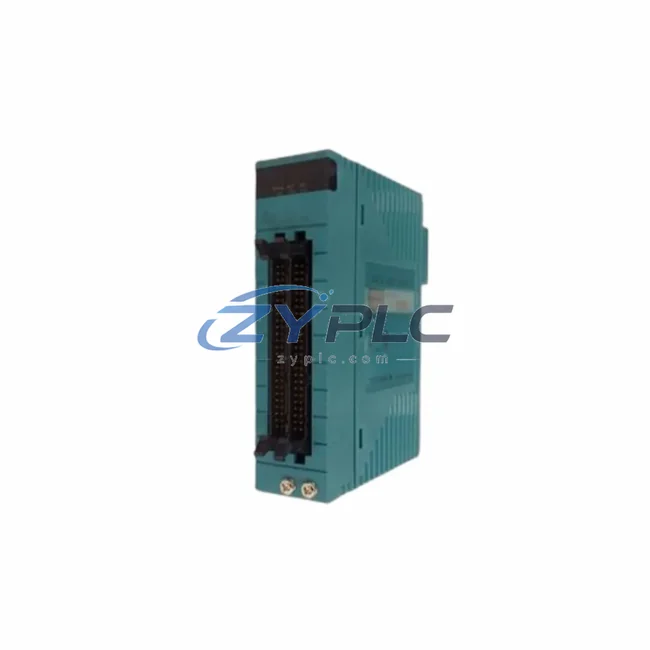

Yokogawa NFDV161-P01 Digital Input for ProSafe-RS

Yokogawa NFDV161-P01 Digital Input for ProSafe-RS: Compatibility and Replacement Notes

The Yokogawa NFDV161-P01 is a 16-channel digital input module engineered for deployment within the ProSafe-RS Safety Instrumented System (SIS) platform — one of the most widely adopted safety control architectures in the process industries. Rather than functioning as a standalone component, the NFDV161-P01 is designed from the ground up to operate as an integrated node within a layered automation hierarchy, where signal integrity, redundancy, and deterministic response times are non-negotiable requirements. Understanding its role within the full control system architecture is essential for engineers specifying safety-critical I/O infrastructure across manufacturing, petrochemical, power generation, and water treatment facilities.

In a complete ProSafe-RS deployment, the NFDV161-P01 occupies the I/O layer — the critical interface between field instrumentation and the safety logic solver. Field devices such as pressure switches, level switches, emergency shutdown (ESD) pushbuttons, and position feedback sensors transmit discrete 24 VDC signals into the NFDV161-P01, which then conditions and forwards validated digital states to the ProSafe-RS controller node via the internal Vnet/IP communication backbone. This architecture ensures that every field signal is processed within the deterministic scan cycle of the safety controller, maintaining the integrity required for SIL 2 and SIL 3 certified safety loops.

The module’s compatibility with the ProSafe-RS node unit — typically the PFCS (Process Field Control Station) or SFCS (Safety Field Control Station) — means it can be installed directly into the ProSafe-RS I/O nest alongside complementary modules such as the NFDV141 digital output module, the NFAI141 analog input module, and the NFAO141 analog output module. This modular I/O architecture allows engineers to configure mixed signal cabinets that handle both process control and safety functions within a unified hardware platform, reducing panel footprint and simplifying maintenance workflows.

Product Specification Table

System Compatibility Notes

The NFDV161-P01 achieves its full operational value when specified as part of a coordinated ProSafe-RS system design rather than as an isolated replacement part. In a typical safety architecture, the module works in concert with several key components across multiple system layers:

At the controller layer, the ProSafe-RS PFCS or SFCS controller node serves as the logic solver, executing the safety application program and communicating with the NFDV161-P01 via the Vnet/IP backplane. Engineers frequently pair the NFDV161-P01 with the NFDV141 digital output module to create complete discrete I/O nodes capable of reading field status and driving actuators such as solenoid valves and motor starters within the same cabinet.

At the analog I/O layer, the NFAI141 analog input module and NFAO141 analog output module complement the NFDV161-P01 by handling 4–20 mA process signals from transmitters and positioners, enabling a single ProSafe-RS node to manage both discrete safety interlocks and continuous process variable monitoring within one unified I/O nest.

At the network and communication layer, the ProSafe-RS system integrates with the Yokogawa CENTUM VP distributed control system (DCS) via the Vnet/IP plant network, allowing the safety system and the process control system to share real-time data for coordinated shutdown sequences and alarm management. The CENTUM VP FCS (Field Control Station) and associated ALF111 communication modules facilitate this cross-system data exchange without compromising the independence of the safety layer.

At the power supply layer, the ProSafe-RS node units are typically powered by redundant 24 VDC power supply modules — such as the PW481 or PW482 power supply units — which provide N+1 redundancy to ensure uninterrupted operation of all I/O modules including the NFDV161-P01 during single power supply failures. This power redundancy is a fundamental requirement in SIL-rated safety architectures.

At the human-machine interface (HMI) layer, operators interact with the safety system through Yokogawa’s CENTUM VP HIS (Human Interface Station) or dedicated safety HMI terminals, which display the real-time status of all digital inputs processed by the NFDV161-P01 — including valve positions, motor run/stop feedback, and ESD activation states — enabling rapid situational awareness during abnormal process conditions.

At the terminal and wiring layer, field cables connecting to the NFDV161-P01 are typically landed on terminal boards and marshalling panels compatible with the ProSafe-RS I/O nest, ensuring clean signal segregation between safety and non-safety circuits in accordance with IEC 61511 functional safety engineering practices.

Industrial Application Notes

The NFDV161-P01 is deployed across a broad range of industries where functional safety and process reliability are paramount:

Petrochemical and Refining: In hydrocarbon processing plants, the NFDV161-P01 monitors discrete inputs from high-pressure shutdown switches, flame detectors, and gas detection systems. Its SIL-rated performance ensures that emergency shutdown (ESD) sequences are triggered within the required response time when hazardous conditions are detected, protecting personnel and equipment from catastrophic failures.

Power Generation: In thermal and combined-cycle power plants, the module reads turbine protection signals, boiler drum level switches, and generator protection relay contacts. Integration with the ProSafe-RS SFCS controller ensures that turbine trip sequences are executed with the determinism required by IEC 61511 and NFPA 85 boiler safety standards.

Water and Wastewater Treatment: Municipal water treatment facilities use the NFDV161-P01 to monitor pump run/fail feedback, valve open/close confirmation, and high-level float switch inputs across distributed pump stations. The module’s compatibility with redundant ProSafe-RS node configurations ensures continuous monitoring even during planned maintenance activities.

Mining and Metallurgy: In mineral processing and smelting operations, the NFDV161-P01 handles discrete inputs from conveyor belt safety switches, crusher overload contacts, and ventilation system status signals. Its robust operating temperature range and vibration tolerance make it suitable for the demanding electrical environments found in mining control rooms.

Pharmaceutical and Fine Chemical Manufacturing: Batch process facilities rely on the NFDV161-P01 to read reactor interlock signals, agitator run confirmation, and pressure relief valve position feedback. The module’s SIL 2 capability supports the functional safety requirements of HAZOP-identified safety instrumented functions (SIFs) in these regulated production environments.

Product Compatibility FAQ

Q1: Is the NFDV161-P01 compatible with both the ProSafe-RS PFCS and SFCS node units, and can it be used in a dual-redundant node configuration?
A: Yes. The NFDV161-P01 is designed for installation in the ProSafe-RS I/O nest and is compatible with both the PFCS (Process Field Control Station) and SFCS (Safety Field Control Station) node units. It supports dual-redundant node configurations where two controller nodes share the same I/O nest, providing controller-level redundancy without duplicating the I/O hardware. This architecture is commonly specified in SIL 2 and SIL 3 safety loops where high availability is required alongside functional safety certification.

Q2: Can the NFDV161-P01 be installed in an existing ProSafe-RS system alongside older-generation I/O modules without requiring a full system upgrade?
A: In most cases, yes. The NFDV161-P01 is designed to be backward-compatible within the ProSafe-RS I/O nest architecture, allowing it to be installed alongside existing NFDV, NFAI, and NFAO series modules without requiring changes to the controller firmware or safety application program, provided the system software version supports the module revision. Engineers should verify module compatibility against the ProSafe-RS system release notes and consult the Yokogawa hardware compatibility matrix before installation. ZYPLC’s technical team can assist with compatibility verification as part of the procurement process.

Q3: What does the warranty terms confirmed during quotation cover for the NFDV161-P01, and what support is available for commissioning and long-term maintenance?
A: All NFDV161-P01 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. This warranty covers module replacement or repair at no additional cost within the warranty period. For commissioning support, ZYPLC provides technical documentation, wiring diagrams, and configuration guidance to assist engineers during system integration. For long-term maintenance planning, ZYPLC supports RFQ sourcing for ProSafe-RS I/O modules to support emergency replacement requirements, minimizing unplanned downtime in safety-critical installations. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for warranty claims and maintenance support.
