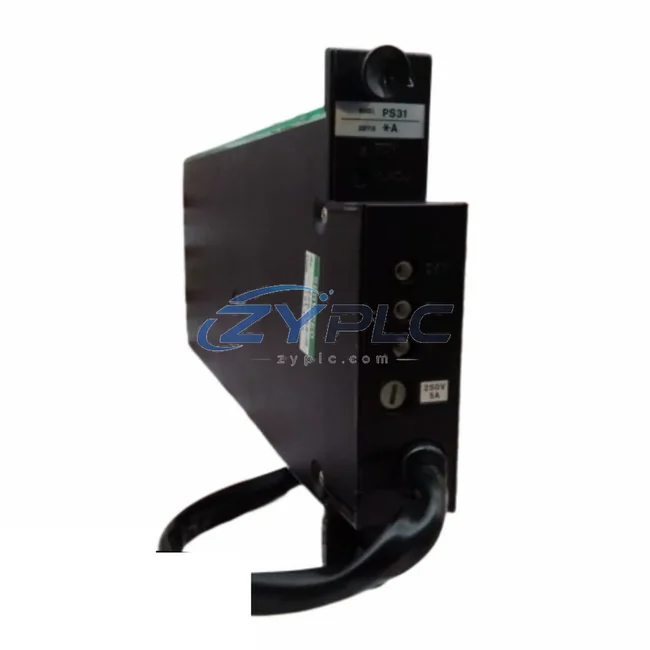

Yokogawa PS31-A Safety I/O for ProSafe-RS

Yokogawa PS31-A Safety I/O for ProSafe-RS: Control System Integration and Upstream-Downstream Coordination

The Yokogawa PS31-A is a dedicated Safety I/O Module engineered for deployment within the ProSafe-RS Safety Instrumented System (SIS) platform. Rather than functioning as a standalone component, the PS31-A is designed from the ground up to operate as an integral node within a layered automation architecture — coordinating signal acquisition, safety logic execution, and cross-system communication across the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer simultaneously. In safety-critical environments such as petrochemical processing, power generation, water treatment, and metallurgical operations, the PS31-A delivers the signal integrity, redundancy capability, and long-term maintainability that modern functional safety standards demand.

Within the ProSafe-RS platform, the PS31-A occupies the field I/O layer, receiving process signals from field transmitters, pressure switches, temperature sensors, and gas detectors, then passing validated data upward to the Safety CPU — typically the SSC50D or SSC57D safety controller — for SIL-rated logic processing. This upstream-downstream signal flow is the backbone of any IEC 61511-compliant safety loop, and the PS31-A’s role in maintaining signal fidelity across that path is non-negotiable in high-hazard applications.

Product Specification Table

System Compatibility Notes

The PS31-A does not operate in isolation. Its value is realized only when it is correctly positioned within a complete ProSafe-RS control system architecture. A typical deployment integrates the PS31-A alongside the SSC50D Safety CPU or SSC57D Dual-Redundant Safety Controller, which handles all SIL-rated logic solving and communicates safety states to the distributed control system via the Vnet/IP industrial Ethernet network. The PS31-A’s I/O data is marshalled through the ProSafe-RS backplane, where it interfaces directly with the CPU module without requiring additional signal converters or protocol bridges — a design choice that reduces latency and eliminates potential single points of failure in the signal chain.

Power integrity for the PS31-A is maintained by the PW481 or PW482 Power Supply Module, which provides regulated 24 VDC to the ProSafe-RS chassis. In redundant architectures, dual power supply modules are deployed in parallel, ensuring that a single power supply failure does not interrupt safety function execution. This power redundancy is a fundamental requirement in SIL 3 applications and is fully supported by the PS31-A’s chassis design.

For applications requiring expanded I/O capacity beyond a single chassis, the PS31-A can be deployed across multiple ProSafe-RS Remote I/O Units, connected back to the main safety controller via fiber-optic or copper Vnet/IP links. This distributed I/O topology is common in large-scale petrochemical plants and LNG terminals where field devices are geographically dispersed across multiple process units. The ALR111 or ALR121 Optical Link Module facilitates this inter-chassis communication, maintaining deterministic scan times and synchronised safety state reporting across all remote nodes.

At the HMI and supervisory layer, the ProSafe-RS system — with the PS31-A as a field I/O node — integrates with Yokogawa’s CENTUM VP Distributed Control System via the Vnet/IP backbone. This integration allows operators to monitor safety loop status, acknowledge alarms, and initiate controlled shutdowns from the HIS (Human Interface Station) without bypassing the safety logic layer. The PS31-A’s diagnostic data is surfaced through this integration, giving maintenance engineers real-time visibility into I/O channel health, wiring faults, and module status — all critical for minimising unplanned downtime in continuous process operations.

In emergency shutdown (ESD) architectures, the PS31-A works in concert with solenoid valve output modules and relay output modules to drive final control elements — including shutdown valves, deluge systems, and motor trip circuits — upon detection of a safety demand. The module’s high diagnostic coverage and low probability of failure on demand (PFD) make it suitable for use in voted architectures (1oo2, 2oo3) where multiple I/O modules must agree before a safety action is executed.

Industrial Application Notes

Petrochemical and Refinery Applications: In hydrocarbon processing facilities, the PS31-A is deployed in high-pressure reactor safety loops, compressor surge protection systems, and fired heater burner management systems (BMS). Its SIL 2/3 capability satisfies the functional safety requirements of OSHA PSM and IEC 61511 Layer of Protection Analysis (LOPA) studies, making it a preferred choice for safety engineers specifying protection layers for HAZOP-identified scenarios.

Power Generation: In thermal and combined-cycle power plants, the PS31-A supports turbine protection systems, boiler drum level safety loops, and generator protection interlocks. Its integration with the CENTUM VP DCS allows seamless coordination between the safety layer and the basic process control system (BPCS), enabling operators to manage both normal operations and emergency responses from a unified control room environment.

Water and Wastewater Treatment: Municipal water treatment facilities use the PS31-A in chlorine dosing safety systems, pump protection interlocks, and overflow prevention loops. The module’s robust diagnostics and warranty terms confirmed during quotation support the long maintenance intervals typical of water utility operations, where on-site engineering resources may be limited.

Mining and Metallurgy: In underground mining and surface smelting operations, the PS31-A is applied in conveyor belt fire detection systems, gas monitoring safety loops, and furnace temperature protection circuits. Its wide operating temperature range and high diagnostic coverage make it suitable for the harsh electrical environments common in mining infrastructure.

Packaging and Discrete Manufacturing: While primarily a process industry module, the PS31-A’s digital I/O architecture is also applicable in high-speed packaging lines and press safety systems where machine guarding interlocks and light curtain inputs must be processed with SIL-rated reliability. Integration with the ProSafe-RS platform allows these safety functions to be managed within the same engineering environment as the broader plant safety system.

Product Compatibility FAQ

Q1: Is the PS31-A compatible with existing ProSafe-RS chassis and backplanes, and can it be added to a running system without full shutdown?
The PS31-A is designed for direct installation into standard ProSafe-RS chassis backplanes. Compatibility should be verified against the specific ProSafe-RS system revision and firmware version in use at your site, as Yokogawa periodically releases hardware revisions that may affect module interchangeability. In many ProSafe-RS configurations, hot-swap capability is supported for I/O modules, allowing replacement or addition of PS31-A modules during scheduled maintenance windows without requiring a full system shutdown — however, this must be confirmed against your site’s safety management of change (MOC) procedure and the applicable ProSafe-RS engineering manual before execution.

Q2: How does the PS31-A support redundant I/O architectures, and what voting configurations are supported?
The PS31-A supports deployment in redundant I/O configurations within the ProSafe-RS architecture. For SIL 3 applications requiring 1oo2 or 2oo3 voting, multiple PS31-A modules can be configured to read the same field signal through separate wiring paths, with the safety CPU performing the vote logic in software. This approach eliminates common-cause failures at the I/O level and satisfies the architectural constraints of IEC 61508 for SIL 3 safety functions. Detailed voting configuration guidance is available in the ProSafe-RS System Engineering Manual and should be reviewed with a certified functional safety engineer (CFSE) during system design.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance and spare parts supply?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental specifications. For long-term maintenance, we maintain RFQ-confirmed sourcing of PS31-A modules and related ProSafe-RS components to support both planned maintenance replacements and emergency spare requirements. Our technical team is available to assist with module testing, configuration verification, and cross-reference to alternative compatible modules where required. Contact us at +86 19859288691 or plc.sales@zyplc.com for spare parts availability and lead time confirmation.
