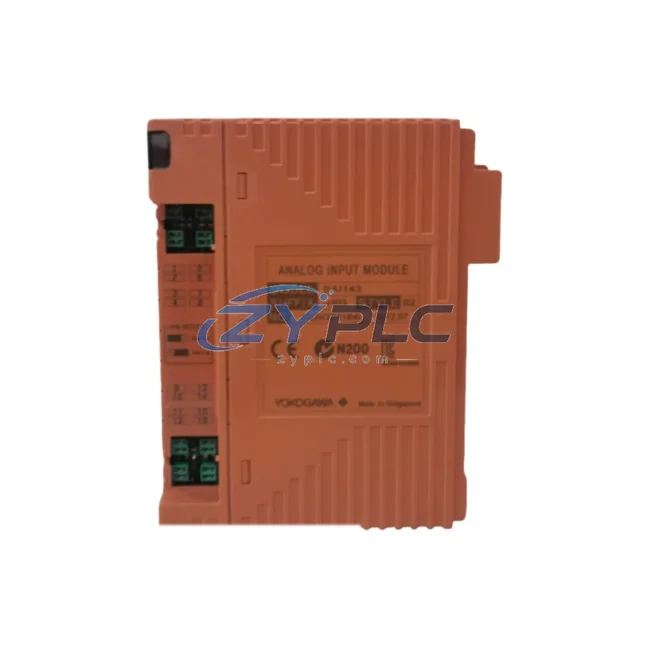

The Yokogawa SAI143-H03 is a 16-channel analog input module engineered for the Centum VP and Centum CS3000 distributed control systems. Designed with industrial energy efficiency at its core, this module plays a critical role in reducing unnecessary signal processing overhead, tightening control loop response times, and enabling smarter maintenance planning across process automation environments. Whether deployed in petrochemical plants, power generation facilities, or continuous manufacturing lines, the SAI143-H03 delivers precision analog signal acquisition that directly supports reduced unplanned downtime and improved equipment utilization.
Product Specification Table
| Parameter |
Specification |
| SKU |
SAI143-H03 |
| Brand |
Yokogawa |
| Series |
Centum VP / Centum CS3000 |
| Module Type |
16-Channel Analog Input Module |
| Signal Range |
4–20 mA / 1–5 V (configurable per channel) |
| Power Consumption |
Low-power design, optimized for field bus efficiency |
| Operating Efficiency |
High-resolution A/D conversion, minimizes signal retries and scan overhead |
| Compatible Systems |
Centum VP, Centum CS3000, PFCS, KFCS, LFCS2 |
| Application Environment |
Process industries: oil & gas, chemicals, power, pharmaceuticals |
| Energy Saving Value |
Reduces redundant polling cycles; supports predictive maintenance to cut unplanned downtime energy spikes |
| Communication Protocol |
Vnet/IP (Yokogawa proprietary high-speed control network) |
| Origin |
Japan |
| Warranty |
warranty terms confirmed during quotation |
| Stock Status |
RFQ Available — Ships after outgoing inspection and functional test |
System Compatibility and Application
In a well-optimized Centum VP control architecture, the SAI143-H03 sits at the heart of the field signal acquisition layer. It works in concert with the Yokogawa SAI143-S03 (single-ended analog input variant) and the SAO143 analog output module to form a complete closed-loop control chain. Together, these modules feed real-time process data into the PFCS (Process Field Control Station) or KFCS (Compact Field Control Station), where control algorithms execute with minimal latency.
On the drive side, the SAI143-H03 analog inputs are frequently paired with Yokogawa WT series power analyzers and third-party variable frequency drives (VFDs) — such as those from the Yaskawa A1000 or Siemens G120 series — to monitor motor load in real time. By capturing 4–20 mA feedback signals from current transformers and power transducers, the module enables the DCS to dynamically adjust motor speed references, reducing energy consumption during low-demand production windows. This integration eliminates the need for manual operator intervention and reduces the risk of motors running at full load unnecessarily.
For I/O expansion and distributed signal collection, the SAI143-H03 is commonly deployed alongside Yokogawa AAI141 and AAI143 analog input cards within the same field control station chassis. The Yokogawa AMM12 multi-point monitor module can be used in parallel to track temperature and pressure deviations that indicate energy inefficiency — such as heat exchanger fouling or pump cavitation — before they escalate into costly failures.
On the communication and data layer, the module’s data flows through the Vnet/IP high-speed control network to the Yokogawa CENTUM VP HIS (Human Interface Station), where operators can visualize energy KPIs in real time. Integration with the Yokogawa Exaquantum plant information management system (PIMS) allows historical energy trend analysis, enabling engineering teams to identify inefficient operating windows and optimize production scheduling accordingly.
For safety-instrumented environments, the SAI143-H03 can be deployed in architectures that include the Yokogawa ProSafe-RS safety controller, ensuring that maintenance planning measures do not compromise process safety integrity levels (SIL). The module’s high-resolution analog acquisition also supports integration with Yokogawa EJA series smart transmitters, which provide HART-compatible diagnostics that further reduce unnecessary field inspection trips — cutting both labor costs and the energy footprint of maintenance operations.
Maintenance and Replacement Notes
In continuous process industries, unplanned downtime is one of the largest hidden energy costs. When a pump trips unexpectedly, the restart sequence — including pressure equalization, valve cycling, and motor ramp-up — consumes significantly more energy than steady-state operation. The SAI143-H03 addresses this by providing the DCS with high-fidelity analog data that enables early detection of process deviations. By monitoring parameters such as differential pressure, flow rate, and motor current draw across all 16 channels simultaneously, the module gives the control system the visibility it needs to intervene before a fault condition develops.
In batch manufacturing environments, the SAI143-H03 supports production line rhythm optimization by ensuring that analog setpoints are tracked with high accuracy throughout each batch phase. This reduces the frequency of overshoot and undershoot events that waste energy through unnecessary heating, cooling, or pumping cycles. When integrated with the Centum VP’s advanced process control (APC) functions, the module’s data feeds model predictive control (MPC) algorithms that continuously minimize energy consumption while maintaining product quality targets.
From a maintenance cost perspective, the SAI143-H03’s reliable signal acquisition reduces the number of false alarms generated by noisy or drifting analog inputs — a common source of unnecessary operator response and equipment cycling. All units supplied by ZYPLC undergo full functional testing and outgoing inspection prior to shipment, ensuring that the module performs to specification from day one. With a warranty terms confirmed during quotation and availability confirmed by RFQ availability, procurement teams can plan replacements and spares inventory with confidence, avoiding the energy and cost penalties associated with emergency sourcing and extended downtime.
Product Sourcing FAQ
Q1: How does the SAI143-H03 contribute to operational stability in a Centum DCS environment?
The SAI143-H03 provides accurate, low-latency analog signal acquisition across 16 channels, enabling the DCS to execute tighter control loops. Tighter control means less process variability, which directly translates to reduced energy consumption in heating, cooling, pumping, and compression applications. By minimizing overshoot and undershoot, the module helps keep energy-intensive equipment operating within its optimal efficiency band.
Q2: Is the SAI143-H03 compatible with both Centum VP and Centum CS3000 systems?
Yes. The SAI143-H03 is designed for use within the Centum VP and Centum CS3000 field control station chassis, including PFCS, KFCS, and LFCS2 configurations. It is compatible with Yokogawa’s Vnet/IP control network and can be hot-swapped in redundant configurations to minimize downtime during maintenance.
Q3: What is the recommended replacement or upgrade path for aging analog input modules in a Centum CS3000 system?
For plants running legacy Centum CS3000 hardware, the SAI143-H03 is a direct replacement option that maintains backward compatibility while benefiting from improved manufacturing quality. For plants considering migration to Centum VP, ZYPLC can advise on compatible module sets and phased replacement strategies that minimize production disruption and capital expenditure.
Q4: What testing and warranty coverage does ZYPLC provide for the SAI143-H03?
