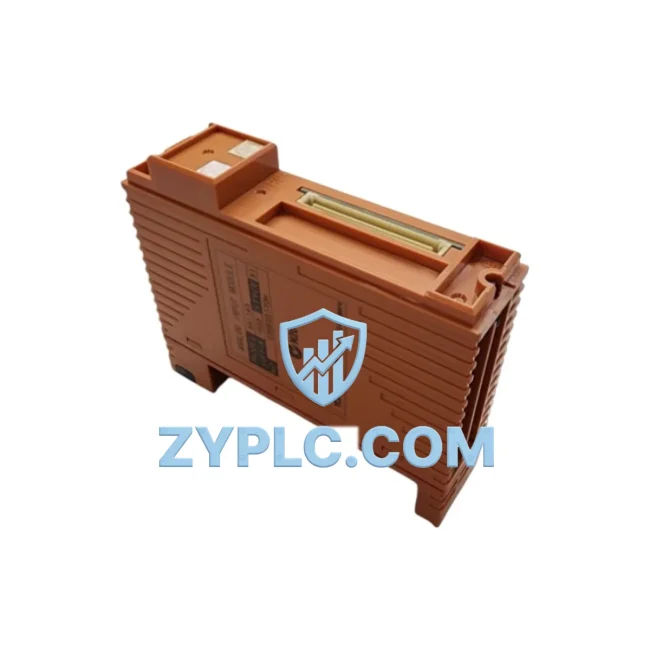

Yokogawa SAI143-H53-S3 Industrial Network Interface for Centum Systems

Yokogawa SAI143-H53-S3: Industrial Data Link for Smart Factory Connectivity

The Yokogawa SAI143-H53-S3 is a high-precision analog input module engineered for the Centum VP / Centum CS 3000 Distributed Control System (DCS) platform. Designed to serve as a critical node in the industrial data chain, this module bridges field-level instrumentation — including pressure transmitters, temperature sensors, flow meters, and level gauges — with the upper-layer control and monitoring infrastructure of modern smart factories. By delivering reliable, real-time signal acquisition and seamless protocol-level integration, the SAI143-H53-S3 ensures that every data point from the plant floor reaches the SCADA, HMI, and historian systems with accuracy and minimal latency.

In today’s connected manufacturing environment, the integrity of the analog signal chain is foundational to operational transparency. The SAI143-H53-S3 accepts standard 4–20 mA analog inputs and supports HART (Highway Addressable Remote Transducer) communication, enabling two-way digital communication over the same wiring used for analog signals. This dual-mode capability allows plant engineers to perform remote diagnostics, retrieve device parameters, and execute calibration routines without interrupting the process — a critical advantage in continuous production environments such as petrochemical refining, pharmaceutical manufacturing, and power generation.

Network Communication Table

Connected Automation Data Flow

Within a fully integrated Centum VP architecture, the SAI143-H53-S3 sits at the heart of the field signal acquisition layer. Field instruments — such as Yokogawa EJA110E differential pressure transmitters, YTA710 temperature transmitters, and ADMAG AXF magnetic flowmeters — connect directly to the module’s terminal assembly. The SAI143-H53-S3 digitizes these analog signals and passes structured process data upstream through the Vnet/IP control network, Yokogawa’s high-speed, deterministic Ethernet-based backbone designed for real-time DCS communication.

At the controller level, the Yokogawa AFV10D Field Control Unit (FCU) processes the incoming data streams, executing control logic and issuing output commands to final control elements such as control valves and variable frequency drives. Simultaneously, the process values are mirrored to the Yokogawa HIS (Human Interface Station), where operators monitor live trends, configure alarm thresholds, and respond to process deviations through intuitive graphical displays. For facilities running Yokogawa FAST/TOOLS SCADA or third-party SCADA platforms via OPC DA/UA gateways, the SAI143-H53-S3’s data is made available across the enterprise network, enabling remote monitoring from control rooms, engineering workstations, and mobile devices.

The module also integrates with Yokogawa PRM (Plant Resource Manager), the asset management platform that leverages HART pass-through to collect device health data, predictive maintenance indicators, and calibration records from every connected field instrument. This closed-loop data architecture — from sensor to SAI143-H53-S3 to FCU to HIS to SCADA to PRM — forms the backbone of a transparent, data-driven smart factory. Remote I/O nodes such as the Yokogawa RIO (Remote I/O) modules can extend this architecture to geographically distributed field areas, maintaining the same data quality and network determinism across the entire plant.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — the condition where field instruments, PLCs, DCS controllers, and upper-layer systems operate in silos, unable to share process information efficiently. The SAI143-H53-S3 directly addresses this challenge by providing a standardized, protocol-compliant interface that unifies analog field signals with the digital control and monitoring infrastructure of the Centum platform.

For plants migrating from older Centum CS 3000 installations to Centum VP, the SAI143-H53-S3 offers backward-compatible integration, reducing the cost and risk of system upgrades. Its HART communication capability eliminates the need for separate diagnostic wiring, allowing a single cable run to carry both process values and device health data. This consolidation reduces wiring complexity, lowers installation costs, and accelerates commissioning timelines.

In multi-vendor environments — where Yokogawa DCS coexists with Siemens PLCs, Rockwell Automation controllers, or Schneider Electric remote I/O — protocol gateways and OPC servers can be deployed alongside the SAI143-H53-S3 to normalize data formats and enable cross-platform visibility. The result is a unified data layer that feeds SCADA dashboards, MES (Manufacturing Execution Systems), and ERP platforms with accurate, real-time process information, enabling production transparency, regulatory compliance reporting, and data-driven optimization across the entire value chain.

Every SAI143-H53-S3 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify channel accuracy, HART communication integrity, and backplane bus compatibility. Units are shipped with full documentation and are backed by a 12-month warranty, with in-stock availability supporting urgent project timelines and MRO (Maintenance, Repair, and Operations) requirements.

Industrial Connectivity FAQ

Q1: Does the SAI143-H53-S3 support HART protocol for remote diagnostics?
Yes. The SAI143-H53-S3 supports HART communication on each analog input channel, enabling remote device configuration, diagnostics, and calibration without process interruption. HART data is accessible through Yokogawa PRM or any HART-compatible asset management tool.

Q2: Is the SAI143-H53-S3 compatible with both Centum VP and Centum CS 3000 systems?
The SAI143-H53-S3 is designed for the Centum DCS platform family. Compatibility with specific controller generations (VP vs. CS 3000) should be verified against the Yokogawa system configuration guide or confirmed with our technical team prior to ordering.

Q3: What is the network latency for real-time data transmission on the Vnet/IP backbone?
Vnet/IP is a deterministic, high-speed Ethernet network optimized for real-time DCS communication. Typical scan cycle times for analog input modules in Centum VP are in the range of 100–500 ms, depending on system configuration, ensuring timely process data delivery to the HIS and SCADA layers.

Q4: What warranty and testing standards apply to this module?
All SAI143-H53-S3 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including channel verification and communication integrity checks. Expedited shipping options are available for urgent MRO and project requirements.
