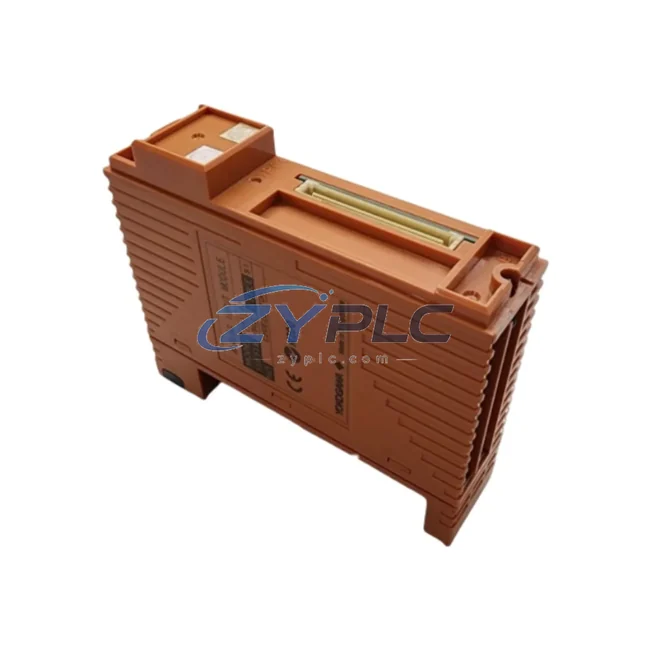

Yokogawa SAI143-HE3 Analog Input Module for STARDOM Systems

Yokogawa SAI143-HE3: Industrial Data Link Interface for STARDOM Smart Factory Networks

The Yokogawa SAI143-HE3 is a high-performance analog input module engineered for the STARDOM series distributed control architecture. Designed to serve as a critical node in industrial data acquisition chains, the SAI143-HE3 bridges the gap between field-level instrumentation and upper-layer control systems — enabling seamless signal collection, protocol-compliant transmission, and real-time process visibility across complex manufacturing environments. Whether deployed in oil and gas, chemical processing, water treatment, or discrete manufacturing, this module delivers the connectivity precision that modern smart factories demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical STARDOM-based smart factory deployment, the SAI143-HE3 sits at the heart of the field data acquisition layer. Analog signals from pressure transmitters, temperature sensors, flow meters, and level detectors are captured by the SAI143-HE3’s multi-channel input circuitry and converted into digital process values with high fidelity. These values are then passed upstream through the STARDOM FCN autonomous controller — a ruggedized field controller that handles local logic execution even during network interruptions — ensuring uninterrupted process control.

From the FCN controller, process data travels over the Vnet/IP industrial Ethernet backbone to the STARDOM FCJ compact controller nodes distributed across the plant floor. The FCJ units aggregate data from multiple SAI143-HE3 modules and relay structured datasets to the plant’s SCADA server via OPC-UA or Modbus TCP, where operators gain real-time visibility through Yokogawa’s FAST/TOOLS SCADA platform or third-party HMI systems. Alarm thresholds configured at the SAI143-HE3 level trigger immediate feedback loops — notifying the SCADA system and activating alarm banners on operator HMI panels within milliseconds.

For drive and actuator coordination, the SAI143-HE3 analog outputs interface with variable frequency drives (VFDs) and control valves, enabling closed-loop process regulation. In parallel, the Yokogawa STARDOM SOE (Sequence of Events) recorder captures timestamped event data from the SAI143-HE3 channel inputs, providing forensic-grade audit trails for process engineers. Remote diagnostics are facilitated through the Yokogawa PRM (Plant Resource Manager), which polls the SAI143-HE3 for device health status, calibration drift, and channel fault conditions — all without interrupting live production.

Edge gateway integration is supported through the Yokogawa OpreX Data Acquisition unit, which aggregates SAI143-HE3 data streams alongside inputs from Yokogawa EJX series pressure transmitters and YTA series temperature transmitters, forwarding consolidated datasets to cloud-based MES or ERP platforms for production analytics and predictive maintenance workflows.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where field devices, PLCs, DCS nodes, and SCADA systems speak incompatible communication languages, creating data silos that obscure process performance and delay fault response. The Yokogawa SAI143-HE3 directly addresses this challenge through its multi-protocol analog input architecture, which supports HART pass-through communication alongside standard 4–20 mA signal acquisition. This dual-layer capability allows engineers to extract both process values and device diagnostics from a single wiring pair, eliminating the need for separate diagnostic networks.

For sites transitioning from legacy Yokogawa CENTUM CS 3000 DCS infrastructure to modern STARDOM-based distributed architectures, the SAI143-HE3 provides a compatible migration path — preserving existing field wiring investments while enabling new network topologies. Its integration with the STARDOM FCN controller’s built-in redundancy features ensures that analog input data remains available even during controller failover events, supporting continuous production transparency.

Remote monitoring capabilities are further enhanced through the module’s compatibility with Yokogawa’s Exaopc OPC server, which exposes SAI143-HE3 channel data to any OPC-DA or OPC-UA compliant SCADA or historian platform. This openness eliminates vendor lock-in at the data layer, allowing plant operators to connect Yokogawa field hardware to PI System historians, Ignition SCADA, or Wonderware InTouch HMI environments without custom middleware. Production line transparency is achieved through real-time KPI dashboards fed directly by SAI143-HE3 process values, enabling shift supervisors to identify throughput bottlenecks, quality deviations, and energy consumption anomalies before they escalate into unplanned downtime.

System expansion is straightforward: additional SAI143-HE3 modules can be hot-inserted into the STARDOM I/O bus without powering down the controller rack, supporting phased capacity growth aligned with production scale-up plans. Every unit shipped by ZYPLC undergoes pre-shipment functional verification, including channel accuracy testing and communication handshake validation, ensuring plug-and-play readiness upon arrival at site.

Industrial Connectivity FAQ

Q1: What communication protocols does the Yokogawa SAI143-HE3 support for SCADA integration?
The SAI143-HE3 supports HART protocol pass-through for device-level diagnostics alongside standard 4–20 mA analog signal transmission. When paired with the STARDOM FCN controller, process data is accessible via Modbus TCP, OPC-UA, and Vnet/IP — covering the full spectrum of SCADA, DCS, and historian integration requirements without additional protocol converters.

Q2: How does the SAI143-HE3 ensure network stability in high-noise industrial environments?
The module incorporates galvanic isolation on all analog input channels, suppressing common-mode noise from variable frequency drives, welding equipment, and high-voltage switchgear. Combined with the STARDOM FCN controller’s autonomous operation mode, the SAI143-HE3 maintains stable data acquisition even during temporary Ethernet backbone interruptions — a critical requirement for continuous process industries.

Q3: Can the SAI143-HE3 be integrated into existing Yokogawa CENTUM or third-party PLC systems?
While the SAI143-HE3 is natively designed for the STARDOM I/O architecture, its analog output signals are compatible with any control system capable of reading standard 4–20 mA inputs. For full protocol-level integration with non-Yokogawa PLCs or SCADA platforms, the Yokogawa Exaopc OPC server or a dedicated Modbus gateway provides the necessary translation layer, enabling cross-platform data sharing without hardware replacement.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the SAI143-HE3?
All Yokogawa SAI143-HE3 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes channel-level accuracy verification, communication protocol handshake testing, and visual inspection to IPC-A-610 workmanship standards. Expedited global shipping with full tracking is available to minimize project lead times.
