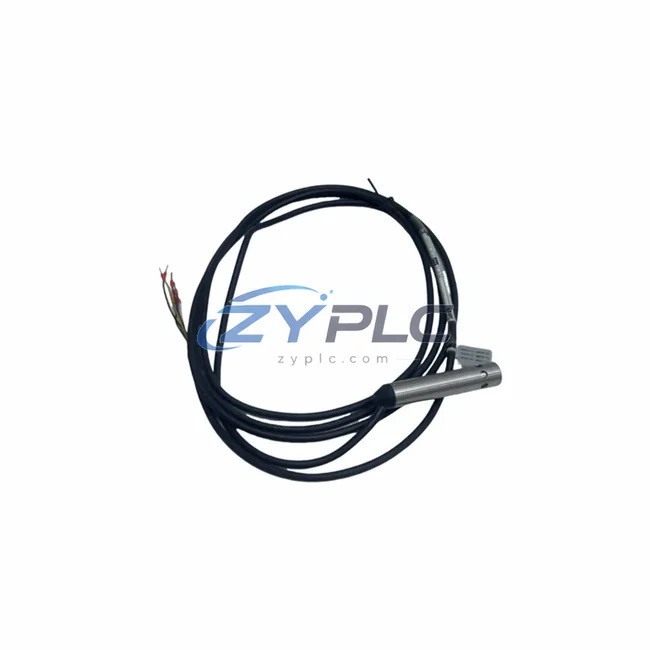

Yokogawa SC4AJ-S-AD-09 Sensor for FLXA

Yokogawa SC4AJ-S-AD-09 Conductivity Sensor for FLXA: system integration Across Control System Layers

In modern industrial automation, no sensor operates in isolation. The Yokogawa SC4AJ-S-AD-09 conductivity sensor is engineered as a system-compatible component within the FLXA202 and FLXA21 liquid analyzer platform, designed to deliver precise, continuous conductivity measurement that integrates seamlessly across the control layer, I/O layer, network layer, power layer, HMI layer, and field execution layer of a complete process control architecture. Whether deployed in water treatment, chemical processing, power generation, or pharmaceutical manufacturing, the SC4AJ-S-AD-09 contributes to system consistency, scalability, redundancy, and long-term maintenance efficiency — all backed by a warranty terms confirmed during quotation.

Product Specification Table

System Compatibility Notes

The SC4AJ-S-AD-09 functions as the sensing front-end of a layered automation architecture. At the field execution layer, it pairs directly with the Yokogawa FLXA202 two-wire liquid analyzer transmitter, which converts the raw conductivity cell signal into a calibrated 4–20 mA output with HART communication capability. This signal is then received at the I/O layer by modules such as the Yokogawa AAI141 analog input module or equivalent HART-capable I/O cards installed in the Yokogawa CENTUM VP distributed control system (DCS) or a third-party PLC rack.

At the control layer, the CENTUM VP controller — or a Yokogawa ProSafe-RS safety instrumentation system for SIL-rated loops — processes the conductivity value against setpoints defined in the process strategy. For facilities using a modular I/O approach, the Yokogawa Stardom FCN/FCJ remote node can serve as a field-mounted controller, reducing panel wiring and enabling distributed architecture without sacrificing signal integrity.

Network layer integration is achieved through the FLXA202’s HART output, which can be polled by a Yokogawa YH8000 HART multiplexer or a compatible asset management gateway, feeding real-time sensor diagnostics into the plant asset management system (PAMS). This enables predictive maintenance scheduling without interrupting the live measurement loop.

At the HMI layer, operators monitor conductivity trends, alarm states, and calibration status through the Yokogawa FAST/TOOLS SCADA platform or the CENTUM VP HIS (Human Interface Station), where the SC4AJ-S-AD-09’s measurement data is displayed alongside correlated parameters such as pH, temperature, and flow rate from co-installed sensors like the Yokogawa PH8EFP pH sensor or the Yokogawa FU20 ultrasonic flow transmitter.

Power layer stability is ensured by routing the FLXA202 transmitter through a Yokogawa PW302 or equivalent 24 VDC loop power supply with surge protection, maintaining uninterrupted sensor excitation even during grid fluctuations. For redundant architectures, dual-loop configurations using two SC4AJ-S-AD-09 sensors on independent FLXA202 transmitters can be implemented, with the DCS performing automatic switchover on sensor fault detection — a critical design feature for continuous process industries where measurement dropout is unacceptable.

Terminal and junction components such as Yokogawa-compatible MTL or P+F Zener barriers are used in IS (intrinsically safe) installations, ensuring the SC4AJ-S-AD-09 can be safely deployed in Zone 1 or Zone 2 hazardous areas without compromising system architecture integrity.

Industrial Application Notes

Water & Wastewater Treatment: The SC4AJ-S-AD-09 is widely deployed in municipal and industrial water treatment plants for monitoring conductivity in reverse osmosis permeate streams, ion exchange effluent, and cooling tower blowdown circuits. Its low cell constant makes it ideal for high-purity water measurement, where even minor ionic contamination must be detected and alarmed before downstream processes are affected.

Power Generation: In thermal and nuclear power plants, boiler feedwater and condensate conductivity monitoring is a critical safety and efficiency parameter. The SC4AJ-S-AD-09 integrated with the FLXA202 provides continuous cation conductivity measurement, supporting turbine protection strategies and chemistry control programs aligned with EPRI or VGB guidelines.

Chemical & Petrochemical Processing: Process streams in chemical plants require real-time conductivity monitoring for concentration control, phase separation detection, and CIP (clean-in-place) verification. The SC4AJ-S-AD-09’s robust PEEK construction and wide temperature rating make it suitable for aggressive chemical environments where sensor longevity directly impacts maintenance budgets.

Pharmaceutical & Semiconductor Manufacturing: USP <645> and EP 2.2.38 conductivity compliance for purified water and water for injection (WFI) systems demands traceable, calibrated measurement. The SC4AJ-S-AD-09 with FLXA202 supports 21 CFR Part 11-compliant data logging when integrated with validated DCS or SCADA platforms.

Mining & Metallurgy: Leaching circuit monitoring, tailings pond management, and process water recycling in mining operations benefit from the SC4AJ-S-AD-09’s durability and the FLXA platform’s ability to handle high-conductivity slurry streams with appropriate sensor selection and flow cell design.

Product Compatibility FAQ

Q1: Is the SC4AJ-S-AD-09 compatible with existing FLXA21 installations, or does it require the newer FLXA202 transmitter?
The SC4AJ-S-AD-09 is designed for use with both the FLXA21 and FLXA202 two-wire liquid analyzer platforms. The sensor cable interface and signal conditioning are compatible across both transmitter generations, allowing direct replacement or upgrade without rewiring the field junction box. When migrating from FLXA21 to FLXA202, the existing sensor cable (9 m, AD-09) can be retained, reducing installation labor and downtime during system upgrades.

Q2: How does the SC4AJ-S-AD-09 support redundant architecture design, and what DCS configuration is recommended?
For redundant conductivity measurement loops, two SC4AJ-S-AD-09 sensors can be installed in parallel flow cells or at upstream/downstream positions in the same process line, each connected to an independent FLXA202 transmitter. The CENTUM VP or ProSafe-RS controller can be configured with a 1oo2 (one-out-of-two) or 2oo2 voting logic block to compare both measurements and trigger alarms or automatic switchover on deviation. This architecture ensures continuous measurement availability even during single-sensor maintenance or calibration events, which is essential for uninterrupted production in power and chemical industries.

Q3: What does the warranty terms confirmed during quotation cover, and how is system integration supported during the warranty period?
The warranty terms confirmed during quotation covers manufacturing defects, material failures, and performance deviations from published specifications under normal operating conditions. system integration support means that during the warranty period, technical assistance is available for system-level commissioning questions — including FLXA202 parameter configuration, DCS signal mapping, HART communication setup, and calibration procedure guidance. Warranty claims are processed through ZYPLC’s technical support channel, with replacement units dispatched from RFQ-confirmed sourcing to minimize process downtime. Contact: +86 19859288691 | plc.sales@zyplc.com
