Yokogawa SDV531-S23-S1 Digital Input Module for STARDOM Systems

Yokogawa SDV531-S23-S1 Industrial Network Interface for STARDOM Systems: Bridging Field Devices and Smart Factory Data Links

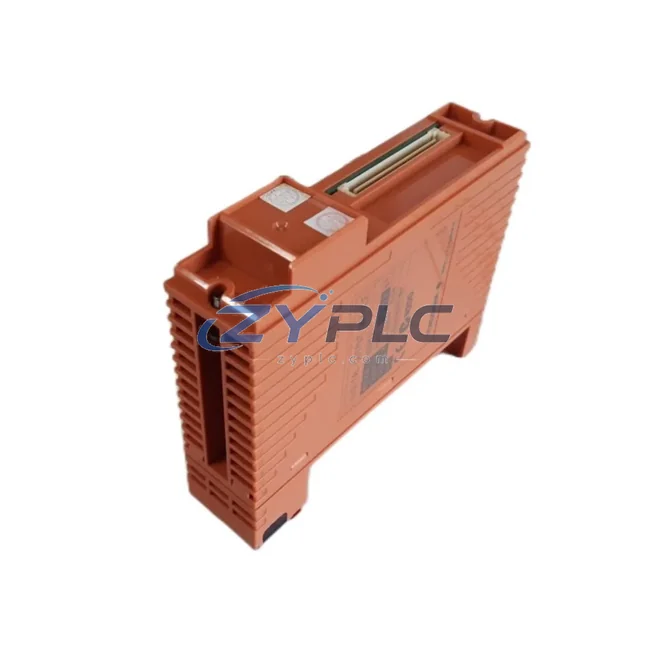

The Yokogawa SDV531-S23-S1 is a high-density 32-channel Digital Input Module engineered for the STARDOM FCN/FCJ autonomous controller platform. Designed to serve as a critical node in the industrial data chain, this module captures discrete field signals from sensors, limit switches, proximity detectors, and push-button stations, then delivers structured digital data upstream to PLC controllers, DCS systems, SCADA platforms, and HMI terminals — all with the reliability and determinism that modern smart factory environments demand. With native support for Modbus RTU/TCP and seamless integration over Industrial Ethernet, the SDV531-S23-S1 eliminates signal isolation and ensures every field event is accurately reflected in real-time across the entire automation network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the SDV531-S23-S1 sits at the front end of the data acquisition chain. Field-level devices — including Yokogawa EJA-series pressure transmitters, inductive proximity sensors, and motor run/fault contacts — feed discrete ON/OFF signals directly into the module’s 32 isolated DI channels. These signals are then processed by the STARDOM FCN autonomous controller, which executes local control logic even during network interruptions, ensuring uninterrupted process continuity.

From the FCN controller, structured process data travels over Industrial Ethernet using Modbus TCP/IP to upstream systems. The Yokogawa FAST/TOOLS SCADA platform subscribes to this data stream for real-time visualization, alarm management, and historical trending. Simultaneously, Yokogawa ProSafe-RS Safety Instrumented System modules can cross-reference DI states for safety interlock validation, while Yokogawa Exaquantum plant information management system archives long-term production data for KPI analysis and regulatory compliance.

For facilities integrating third-party equipment, the SDV531-S23-S1 works alongside Modbus-to-PROFIBUS gateway modules and OPC-UA edge gateways to bridge legacy field buses with modern IIoT architectures. Remote I/O expansion is supported through the STARDOM FCN’s modular backplane, where additional SDV541 Digital Output Modules and SAI143 Analog Input Modules can be stacked to scale the I/O footprint without redesigning the network topology. Variable frequency drives (VFDs) and soft starters reporting run/fault status via dry contacts connect directly to the SDV531-S23-S1 channels, feeding motor health data into the SCADA dashboard for predictive maintenance workflows.

At the HMI layer, Yokogawa Exilion HMI terminals display real-time DI status maps, enabling operators to monitor valve positions, conveyor states, and interlock conditions from a single unified interface. For remote diagnostics, the STARDOM FCN’s built-in web server exposes module-level diagnostics — including channel status, communication health, and firmware version — accessible via standard browsers without requiring dedicated engineering software on-site.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation: legacy PLCs speaking proprietary serial protocols, newer DCS nodes running Ethernet-based standards, and field instruments using 4–20 mA analog signals — all generating data that never converges into a unified operational picture. The SDV531-S23-S1 directly addresses this by providing a standardized Modbus TCP/IP interface that virtually any SCADA, HMI, or data historian can poll without custom middleware.

Data silos are further broken down through the STARDOM FCN’s peer-to-peer communication capability, which allows multiple FCN nodes across a plant to share DI status data over the plant LAN without routing through a central server — reducing latency and eliminating single points of failure. For remote monitoring scenarios, the module’s data is accessible via VPN-secured Ethernet tunnels, enabling engineering teams to perform remote diagnostics, review alarm histories, and validate interlock states from off-site locations without dispatching field technicians.

Production line transparency is achieved by mapping each of the 32 DI channels to named tags within the SCADA system, giving operations managers a live view of every discrete event — from conveyor belt run signals to emergency stop activations — with millisecond-resolution timestamps. System expansion is straightforward: additional STARDOM FCN nodes and I/O modules can be added to the network and discovered automatically, supporting phased capacity growth without production shutdowns. Every unit shipped by ZYPLC undergoes pre-shipment functional testing to verify channel integrity, communication handshake, and firmware compatibility, backed by a warranty terms confirmed during quotation and dedicated technical support.

Industrial Connectivity FAQ

Q1: What is the communication latency of the SDV531-S23-S1 over Modbus TCP/IP?
The SDV531-S23-S1 operating within the STARDOM FCN platform typically achieves Modbus TCP/IP scan cycle times of 10–100 ms depending on network load and polling configuration. For time-critical applications, the FCN’s local control execution is independent of network latency, ensuring deterministic response even under high network traffic conditions.

Q2: Is the SDV531-S23-S1 compatible with third-party SCADA and HMI systems beyond Yokogawa’s own platforms?
Yes. Because the module communicates via standard Modbus RTU and Modbus TCP/IP protocols, it is compatible with any SCADA or HMI platform that supports these open standards — including Wonderware, Ignition, Siemens WinCC, and Inductive Automation systems — without requiring proprietary drivers or protocol converters.

Q3: How does the module maintain network stability in electrically noisy industrial environments?
The SDV531-S23-S1 features optically isolated DI channels that prevent ground loops and electrical noise from field wiring from propagating into the communication network. The STARDOM FCN backplane provides additional EMI shielding, and the module supports redundant Ethernet port configurations for network fault tolerance in critical process applications.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the SDV531-S23-S1?
Every SDV531-S23-S1 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Prior to shipment, each module undergoes a functional verification test covering all 32 DI channels, Modbus communication handshake, and power-on self-diagnostics. Availability is confirmed via RFQ for same-week dispatch with full traceability documentation.
