Yokogawa SDV541-S63/PRP S3 Digital Output for STARDOM

Yokogawa SDV541-S63/PRP S3 Digital Output for STARDOM: Control System and Upstream–Downstream Coordination

In modern industrial automation, the reliability of a distributed control system depends not on any single component, but on the seamless coordination of every layer within the architecture. The Yokogawa SDV541-S63/PRP S3 is a high-density digital output module engineered specifically for the STARDOM FCN/FCJ autonomous controller platform, designed to serve as a dependable execution node within layered automation systems across manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process control environments.

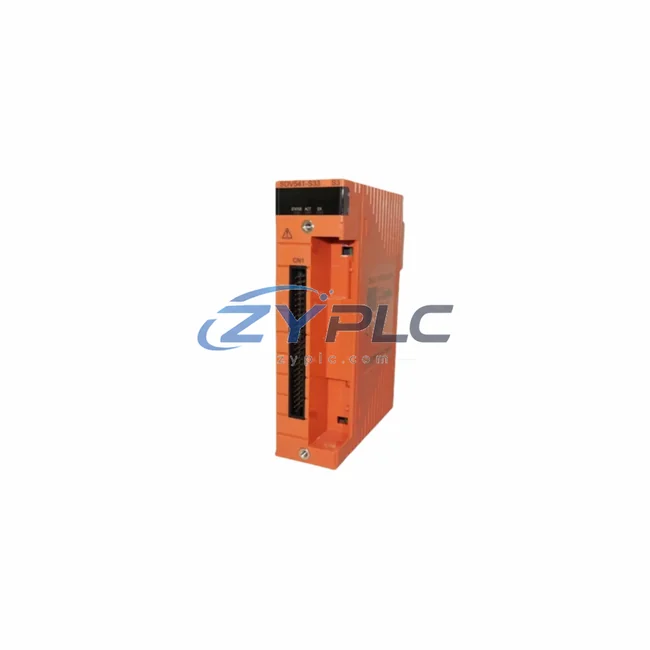

The SDV541-S63/PRP S3 occupies a critical position in the I/O layer of the STARDOM architecture. It receives discrete command signals from the CPU layer — typically the FCN-100 or FCN-500 autonomous controller — and translates those signals into reliable field-level switching actions. This module supports 32-channel digital output with transistor-type sink output, making it suitable for driving solenoid valves, motor starters, relay coils, indicator lamps, and other discrete actuators in process and discrete manufacturing environments.

What distinguishes the SDV541-S63/PRP S3 within the STARDOM ecosystem is its compatibility with the PRP (Parallel Redundancy Protocol) communication architecture. This enables the module to participate in a fully redundant network topology, ensuring that no single point of failure in the communication backbone can interrupt field-level output execution. When paired with the NP531 network interface module and a redundant Ethernet switch infrastructure, the SDV541-S63/PRP S3 contributes to a fault-tolerant I/O subsystem that meets the availability requirements of critical process applications.

Product Specification Table

System Compatibility Notes

The SDV541-S63/PRP S3 does not operate in isolation — its value is realized through its integration within a complete STARDOM control system architecture. At the CPU layer, the FCN-100 or FCN-500 autonomous controller executes the control logic and issues output commands to the I/O layer via the internal bus or Ethernet-based remote I/O network. The SDV541-S63/PRP S3 receives these commands and drives field devices with deterministic response timing.

On the analog side, the AAI543-S00 analog input module and AAI141-S00 analog output module work alongside the SDV541-S63/PRP S3 to provide a complete signal acquisition and actuation capability within the same I/O chassis. For digital input acquisition, the SDV141-S00 digital input module complements the SDV541-S63/PRP S3 by capturing field status signals — limit switches, proximity sensors, and pushbutton states — and feeding them back to the controller for closed-loop logic execution.

Power integrity is maintained by the PW482-10 power supply module, which provides regulated 24 VDC to the I/O base unit and ensures that output channels maintain stable switching performance even under fluctuating field load conditions. In redundant power configurations, dual PW482-10 units can be deployed to eliminate power supply as a single point of failure.

At the network layer, the NP531 network interface module enables the STARDOM FCN controller to communicate with supervisory SCADA systems, DCS gateways, and engineering workstations over standard Ethernet. The PRP-capable network infrastructure ensures that the SDV541-S63/PRP S3 remains continuously accessible even during a network path failure, supporting the system integration requirements of modern process automation architectures.

For alarm and event management, the ALR121-S00 alarm module provides dedicated alarm output channels that can be driven in parallel with the SDV541-S63/PRP S3 to ensure that critical process alarms are annunciated at the field level regardless of HMI availability. At the human-machine interface layer, Yokogawa’s FAST/TOOLS SCADA platform or third-party HMI systems connect to the FCN controller via OPC-UA or Modbus TCP, providing operators with real-time visibility into the digital output states managed by the SDV541-S63/PRP S3.

Terminal block connectivity is handled through the TB820V or equivalent I/O termination modules, which provide field wiring access points for the 32 output channels. These termination assemblies support marshalling cabinet integration and simplify field wiring during commissioning and maintenance activities.

Industrial Application Notes

In power generation and substation automation, the SDV541-S63/PRP S3 is deployed to control circuit breaker trip coils, motor-operated disconnect switches, and protection relay reset circuits. The PRP redundancy capability ensures that output commands are executed without interruption even during planned network maintenance windows, meeting the stringent availability requirements of grid-connected generation assets.

In petrochemical and refinery process control, the module drives solenoid-operated control valves, emergency shutdown (ESD) actuators, and pump motor starters within distributed control cabinets. Its compatibility with the STARDOM FCN platform allows it to participate in Safety Instrumented System (SIS) architectures when configured with appropriate safety-rated logic solvers, supporting the layered defense-in-depth approach required by IEC 61511.

In water and wastewater treatment, the SDV541-S63/PRP S3 controls pump station motor starters, chemical dosing pump relays, and UV disinfection system enable signals across geographically distributed remote I/O nodes. The module’s compact form factor and DIN rail mounting make it suitable for installation in outdoor RTU enclosures serving lift stations and pump houses.

In mining and metallurgical processing, the module is used to control conveyor belt motor starters, crusher interlock relays, and dust suppression system solenoids within harsh industrial environments. Its wide operating temperature range and robust construction ensure reliable performance in the high-vibration, high-dust conditions typical of mineral processing facilities.

In packaging and discrete manufacturing, the SDV541-S63/PRP S3 provides the digital output density required to control pneumatic cylinder solenoids, servo drive enable signals, and machine safety relay circuits within high-speed production line architectures. Its integration with the STARDOM FCN controller enables coordinated multi-axis sequencing with deterministic I/O response times.

Product Compatibility FAQ

Q1: Is the SDV541-S63/PRP S3 compatible with existing STARDOM FCN-100 and FCN-500 controller installations?
Yes. The SDV541-S63/PRP S3 is designed for direct integration with the STARDOM FCN-100 and FCN-500 autonomous controller platforms. It mounts on standard STARDOM I/O base units and communicates via the internal I/O bus or Ethernet-based remote I/O network. No additional interface modules or protocol converters are required for integration into existing FCN-based control architectures. Firmware compatibility should be verified against the FCN controller software version in use at the installation site.

Q2: How does the PRP communication option enhance system availability, and what infrastructure is required?
The PRP (Parallel Redundancy Protocol) option enables the SDV541-S63/PRP S3 to transmit and receive data simultaneously over two independent Ethernet network paths. In the event of a complete failure of one network path — including switch failure, cable break, or port fault — the module continues to operate without any switchover delay or data loss. This zero-recovery-time redundancy is achieved without requiring any special configuration at the controller level. The required infrastructure consists of two independent Ethernet switches and dual-port network connections at each node, including the FCN controller and the NP531 network interface module.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term spare parts availability managed?
The SDV541-S63/PRP S3 is supplied with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. The warranty period begins from the date of shipment. For long-term maintenance planning, we recommend maintaining a minimum of one spare SDV541-S63/PRP S3 module per control cabinet to support rapid replacement during unplanned outages. Our inventory management service provides guaranteed stock availability and expedited global shipping to minimize mean time to repair (MTTR) for critical process control systems. Extended support agreements and multi-year spare parts reservation programs are available upon request.
