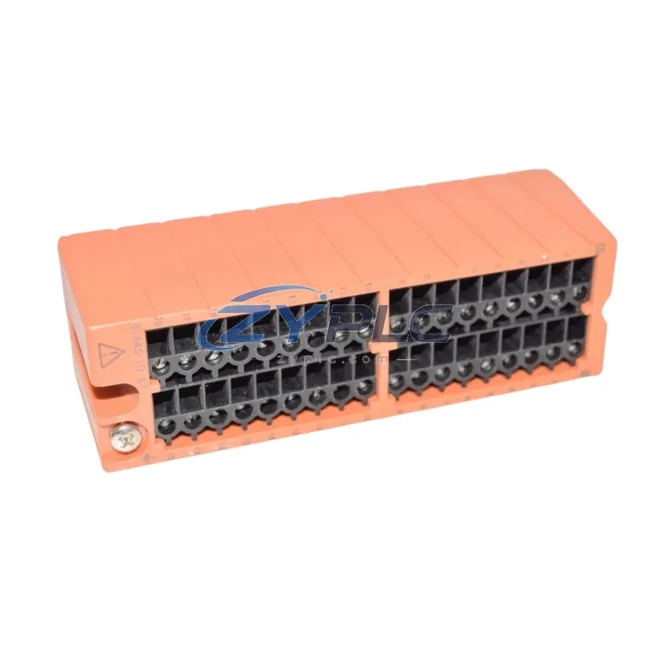

Yokogawa STA4S-00 S1 HART Terminal Block for STA Series Systems

Yokogawa STA4S-00 S1 HART Pressure Terminal Block: Industrial Data Link for Smart Factory Connectivity

The Yokogawa STA4S-00 S1 is a HART-protocol pressure transmitter terminal block engineered for seamless integration across modern industrial automation architectures. As a critical node in the field instrumentation layer, the STA4S-00 S1 bridges analog 4–20 mA signal loops with HART digital communication, enabling real-time process data to flow from field-mounted pressure transmitters directly into DCS controllers, SCADA platforms, and asset management systems — without signal degradation or protocol mismatch.

In smart factory environments where data continuity is non-negotiable, the STA4S-00 S1 serves as the physical and logical interface between the sensing layer and the control network. Whether deployed in oil & gas pipelines, chemical processing plants, power generation facilities, or water treatment infrastructure, this terminal block ensures that every pressure measurement is accurately captured, digitally transmitted, and available for real-time monitoring, alarm management, and predictive maintenance workflows.

Compatibility & Integration Notes

Connected Automation Data Flow

The STA4S-00 S1 operates at the heart of a layered industrial data flow. In a typical smart factory deployment, field-mounted Yokogawa EJA110E or EJX110A differential pressure transmitters generate both a 4–20 mA process signal and a HART digital stream. The STA4S-00 S1 terminal block receives these signals at the marshalling cabinet level, providing clean, labeled termination points that feed directly into Yokogawa CENTUM VP DCS I/O cards or Yokogawa ProSafe-RS safety controllers.

From the DCS I/O layer, HART pass-through capability allows a Yokogawa PRM (Plant Resource Manager) asset management server to interrogate each transmitter individually — reading secondary variables such as sensor temperature, loop current, and diagnostic status — without interrupting the primary 4–20 mA control loop. This bidirectional HART communication path is what transforms a simple pressure reading into a rich data asset for predictive maintenance and process optimization.

In parallel, the process values are forwarded via OPC-DA or OPC-UA gateways to SCADA systems such as Yokogawa FAST/TOOLS or third-party platforms like Wonderware or Ignition SCADA, where operators monitor real-time pressure trends, configure alarm thresholds, and generate compliance reports. Remote I/O modules — such as Yokogawa AFV10 or Yokogawa STARDOM FCN/FCJ controllers deployed at satellite skids — can also interface with STA Series terminal blocks, extending the HART data network across geographically distributed process units.

For edge computing scenarios, the HART data extracted through the STA4S-00 S1 can be aggregated by an industrial edge gateway running IIoT middleware, enabling cloud-based analytics, digital twin modeling, and AI-driven anomaly detection. Variable frequency drives (VFDs) controlling pump motors in the same process loop can receive setpoint adjustments based on the pressure data flowing through this terminal block, closing the loop between measurement and actuation in a fully integrated smart factory architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field instruments generate valuable process data that never reaches the control room or enterprise systems because of protocol incompatibility, poor wiring infrastructure, or inadequate marshalling architecture. The Yokogawa STA4S-00 S1 directly addresses this problem.

By providing a standardized, HART-compatible termination point for pressure transmitters, the STA4S-00 S1 eliminates the signal integrity issues that arise from improvised field wiring. Its DIN rail mounting and clearly labeled terminal positions simplify cabinet organization, reduce commissioning time, and make future maintenance or instrument replacement straightforward — even for technicians unfamiliar with the original installation.

For plants operating mixed fleets of instruments from multiple vendors, the HART protocol supported by the STA4S-00 S1 provides a universal communication layer. Whether the connected transmitter is a Yokogawa EJA series, a Rosemount 3051, or an Endress+Hauser Cerabar, the HART digital channel delivers device identification, configuration data, and diagnostic alerts through the same wiring infrastructure — eliminating the need for separate communication cables or proprietary interfaces.

Remote monitoring and diagnostics become practical with the STA4S-00 S1 in place. Maintenance teams can use a HART communicator or a laptop running Yokogawa FieldMate device management software to access transmitter diagnostics, perform loop calibration, and verify sensor health — all without physically disconnecting the instrument from the process. This capability is especially valuable in hazardous areas where minimizing human intervention reduces safety risk and operational cost.

As production lines expand or process configurations change, the STA Series architecture scales gracefully. Additional STA4S-00 S1 terminal blocks can be added to existing marshalling cabinets, and the modular design ensures that new instruments are integrated into the HART network without redesigning the wiring infrastructure. This scalability supports the phased digitalization strategies that many industrial operators pursue as they transition toward Industry 4.0 compliance.

All units supplied by ZYPLC are sourced from verified supply channels, tested for continuity and signal integrity before shipment, and covered by a . Availability confirmed by RFQ inventory ensures short lead times for urgent MRO requirements and project procurement.

Industrial Connectivity FAQ

Q1: Does the Yokogawa STA4S-00 S1 support multidrop HART communication?
A: The STA4S-00 S1 terminal block is designed for standard point-to-point HART wiring configurations commonly used in DCS marshalling applications. For multidrop HART topologies where multiple transmitters share a single pair, consult the Yokogawa STA Series documentation to confirm loop resistance and power supply compatibility with your specific field instruments.

Q2: Is the STA4S-00 S1 compatible with Yokogawa CENTUM VP and other DCS platforms?
A: Yes. The STA4S-00 S1 is designed as part of the Yokogawa STA Series marshalling system, which is fully compatible with CENTUM VP I/O modules. It is also compatible with third-party DCS platforms that accept standard 4–20 mA HART signals, including Honeywell Experion, ABB System 800xA, and Emerson DeltaV, making it a versatile choice for multi-vendor control environments.

Q3: How does the STA4S-00 S1 contribute to network stability in high-noise industrial environments?
A: The terminal block provides a clean, mechanically secure termination that minimizes contact resistance variation — a common source of HART communication errors in high-vibration or high-EMI environments. Proper DIN rail grounding through the STA Series mounting system further reduces common-mode noise on the 4–20 mA loop, improving HART signal quality and reducing communication retries between the field instrument and the DCS or HART multiplexer.

Q4: What is the warranty coverage and how are units tested before shipment?
A: All Yokogawa STA4S-00 S1 units supplied by ZYPLC carry a covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment inspection including terminal continuity verification and visual inspection for mechanical integrity. Expedited shipping options are available for urgent plant maintenance requirements, and our technical team can provide documentation support for incoming inspection and installation.
