ZYPLC 330104-00-12-10-02-00 Proximity Probe for 3300

ZYPLC 330104-00-12-10-02-00 Proximity Probe for 3300 Series Automation

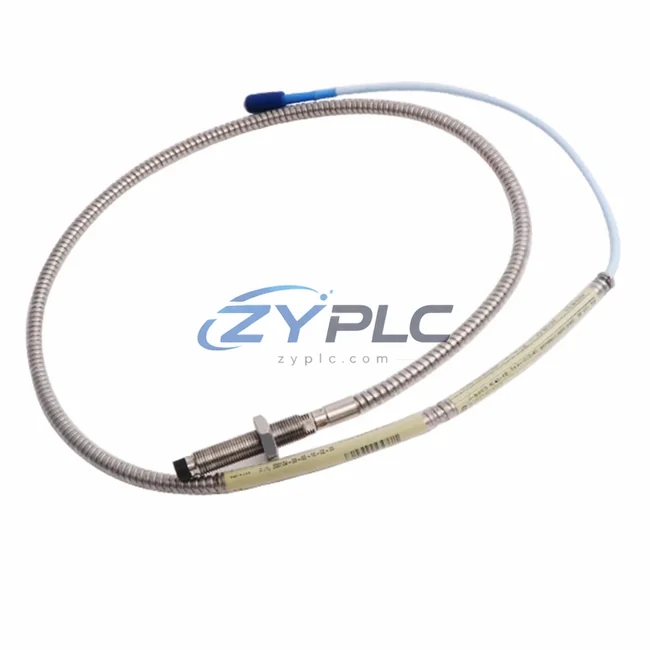

The Bently Nevada 330104-00-12-10-02-00 is a high-precision eddy-current proximity probe engineered for the 3300 Series vibration monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, this probe plays a foundational role in capturing real-time shaft displacement data with minimal power draw. By delivering accurate, low-latency vibration signals to the control layer, it enables plant engineers to make informed decisions that reduce unnecessary energy consumption, prevent downtime, and extend the operational life of rotating machinery.

Unlike conventional sensing solutions that generate excessive signal noise and require frequent recalibration, the 330104-00-12-10-02-00 maintains stable output across a wide temperature range and harsh industrial environments. Its 5-meter cable configuration and 3/8-28 UNF thread mount make it compatible with a broad range of turbine, compressor, and pump installations where space constraints and vibration exposure are constant challenges.

Product Specification Table

System Compatibility and Application

The 330104-00-12-10-02-00 proximity probe does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical industrial-grade plant configuration, the probe connects to a Bently Nevada 3300 XL 8mm Extension Cable, which routes the signal to a 3500/42M Proximitor I/O Module housed within the 3500 Series rack. This rack-based monitor processes raw gap voltage into calibrated displacement readings that feed directly into the plant’s DCS or safety instrumented system.

On the control execution side, a Siemens S7-1500 PLC or Allen-Bradley ControlLogix L73 receives vibration alarm states and integrates them into the machine protection logic. When vibration thresholds are exceeded, the control layer can command a Danfoss FC-302 variable frequency drive or ABB ACS880 drive to reduce motor speed, cutting energy consumption during transient load conditions rather than running at full rated power unnecessarily.

For power quality monitoring upstream of the motor circuit, a Schneider Electric PowerLogic ION7650 power meter tracks real-time kW, kVAR, and power factor — data that, when correlated with the vibration trend from the 330104-00-12-10-02-00, reveals whether mechanical imbalance is causing the drive to draw excess reactive power. This correlation is visualized on a Siemens SIMATIC HMI TP1500 Comfort Panel, giving operators a unified view of both electrical and mechanical efficiency indicators.

Communication between the 3500 Series monitor, the PLC, and the SCADA layer is handled via Modbus TCP or PROFIBUS DP, ensuring that vibration data is available to the maintenance planning system in real time. A Phoenix Contact Axioline F I/O module aggregates discrete alarm signals from multiple proximity probe channels, reducing wiring complexity and enabling faster fault isolation. Together, these components form a closed-loop maintenance planning system where the 330104-00-12-10-02-00 serves as the critical data source that drives every downstream efficiency decision.

Maintenance and Replacement Notes

In a petrochemical plant running a multi-stage centrifugal compressor train, undetected rotor imbalance can cause the drive system to compensate by drawing 8–15% more current than the design baseline. The 330104-00-12-10-02-00 proximity probe, mounted at the compressor’s non-drive end, continuously monitors shaft eccentricity and feeds this data to the 3500/42M monitor. When the system detects a developing imbalance trend — well before it reaches alarm level — maintenance teams can schedule a targeted balancing intervention during the next planned shutdown window, avoiding both the energy penalty of running a degraded machine and the catastrophic energy spike of an emergency trip and restart cycle.

In a steel rolling mill, where induction motors driving roll stands consume hundreds of kilowatts continuously, the proximity probe data enables the VFD control strategy to be tuned more aggressively. By confirming that bearing clearances remain within specification, engineers gain confidence to operate the drive at optimized speed setpoints rather than conservative derating margins, recovering 3–7% of motor energy that would otherwise be lost to unnecessary speed reduction.

Predictive maintenance workflows built around the 330104-00-12-10-02-00 also reduce the energy cost of maintenance itself. unexpected shutdowns require full production line restarts, which consume disproportionate energy during motor acceleration and thermal stabilization. By extending mean time between failures through early vibration detection, the probe directly reduces the frequency of these high-energy restart events. Every unit shipped from ZYPLC undergoes a full outgoing functional test to verify probe sensitivity, cable continuity, and gap voltage linearity before dispatch, ensuring that the energy efficiency benefits described above are realized from day one of installation.

Product Sourcing FAQ

Q1: How does the 330104-00-12-10-02-00 contribute to measurable operational stability?
By providing continuous, accurate shaft displacement data, this probe enables the control system to detect mechanical degradation before it causes elevated current draw. Early intervention — whether rebalancing, realignment, or bearing replacement — prevents the 5–15% energy penalty typically associated with running degraded rotating equipment. The data also supports VFD tuning that eliminates conservative speed derating.

Q2: Is the 330104-00-12-10-02-00 compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The probe is designed for the Bently Nevada 3300 XL driver/monitor system and is also compatible with 3500 Series Proximitor I/O modules when used with the appropriate extension cable and driver configuration. Always verify the gap voltage range and scale factor match your monitor’s input specification before installation.

Q3: What is the recommended replacement interval, and how does timely replacement affect energy efficiency?
Bently Nevada recommends replacing proximity probes showing sensitivity drift greater than ±5% of nominal scale factor. A drifting probe can cause the monitor to miss early-stage imbalance events, allowing mechanical degradation — and its associated energy penalty — to progress undetected. ZYPLC supports RFQ sourcing for the 330104-00-12-10-02-00 to support rapid replacement without extended lead times.

Q4: What testing is performed before shipment, and what does the cover?
Every 330104-00-12-10-02-00 unit dispatched by ZYPLC undergoes outgoing inspection including gap voltage verification, cable insulation resistance testing, and connector integrity checks. The covers manufacturing defects and performance deviations from Bently Nevada’s published specifications under normal operating conditions. Warranty claims are supported directly through ZYPLC’s technical team.
