ZYPLC MVI46-GSC Serial Module for SLC 500

ZYPLC MVI46-GSC Serial Module for SLC 500 Automation

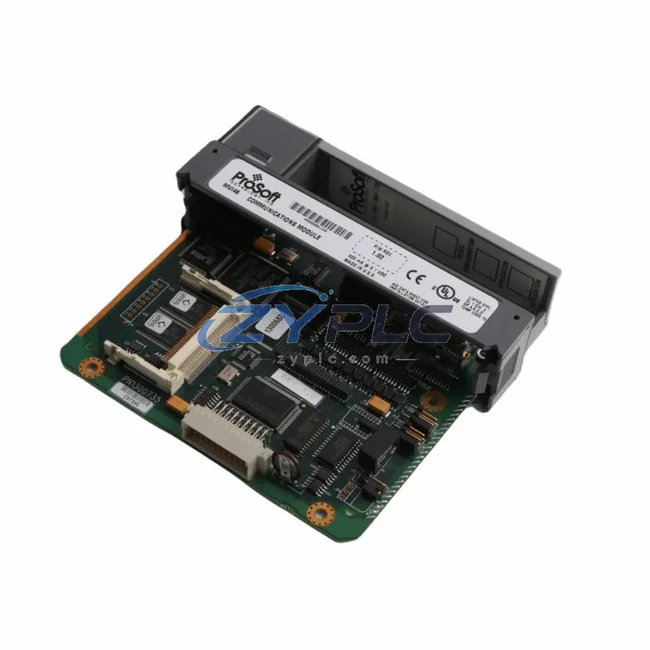

The ProSoft MVI46-GSC is a high-performance serial communication module engineered for Allen-Bradley SLC 500 programmable logic controller platforms. In modern industrial environments where energy efficiency and production throughput are inseparable goals, the MVI46-GSC serves as a critical data bridge between legacy serial field devices and the SLC 500 backplane — enabling real-time visibility into operating load, drive status, and process feedback loops that are essential for reducing idle power draw and optimizing equipment utilization rates.

Unlike passive communication adapters, the MVI46-GSC supports Generic Serial Communication (GSC) protocols, allowing it to interface with a broad range of energy meters, variable frequency drives, servo amplifiers, and intelligent field instruments. This flexibility makes it an indispensable component in factories seeking to retrofit existing SLC 500 control architectures with modern condition monitoring and motor management capabilities — without the capital expenditure of a full system replacement.

Product Specification Table

System Compatibility and Application

Achieving measurable operational stability in a production facility requires more than a single component — it demands a coordinated architecture where every layer of the control system contributes to efficiency. The MVI46-GSC is designed to operate at the heart of this architecture within SLC 500-based systems.

At the drive layer, the MVI46-GSC communicates directly with variable frequency drives such as the PowerFlex 40 and PowerFlex 400 series via RS-485 serial links. By reading real-time speed references, output frequency, and motor current data from these drives, the SLC 500 processor can dynamically adjust motor speed setpoints in response to actual load demand — eliminating the unplanned downtime associated with fixed-speed motor operation. In pump and fan applications alone, this closed-loop speed control can help restore stable operation when a compatible replacement is required.

For energy metering and power quality monitoring, the MVI46-GSC interfaces with serial-output power analyzers and energy meters such as the PowerMonitor 500 and compatible third-party kWh meters. This allows the SLC 500 to log real-time kW, kVAR, and power factor data directly into the controller’s data table — providing the foundation for demand-side maintenance planning and shift-based consumption reporting without requiring a separate SCADA layer.

At the I/O and sensor level, the MVI46-GSC complements the SLC 500’s native 1746-IB16 and 1746-OB16 digital I/O modules by extending the controller’s reach to serial-protocol field instruments — including temperature transmitters, flow meters, and pressure sensors that output Modbus RTU or custom ASCII data streams. This integration eliminates the need for additional analog input cards and reduces wiring complexity, directly lowering installation and maintenance costs.

For human-machine interface and operator visibility, the MVI46-GSC-equipped SLC 500 system pairs naturally with PanelView 600 and PanelView Plus 600 terminals connected via DH-485 or DF1 protocols. Operators gain live visibility into operating load trends, drive operating points, and alarm states — enabling faster response to inefficiency events such as motor overloads, process deviations, or abnormal power draw patterns.

In multi-axis motion and servo applications, the MVI46-GSC can relay position feedback and torque data from Ultra 3000 servo drives operating in serial command mode, allowing the SLC 500 to coordinate servo motion with maintenance-focused sequencing logic. This is particularly valuable in press, conveyor, and packaging line applications where servo duty cycles can be optimized to reduce peak demand charges.

For network-level integration, the MVI46-GSC bridges serial field devices into the SLC 500 backplane, where data can be further propagated to higher-level systems via 1747-SDN DeviceNet Scanner or 1747-SCNR ControlNet Scanner modules installed in the same chassis. This multi-layer communication architecture ensures that energy data collected at the field device level reaches MES and ERP systems for enterprise-wide energy reporting and optimization.

Maintenance and Replacement Notes

In real-world production environments, the MVI46-GSC delivers maintenance planning value across three primary dimensions: reducing idle and no-load operating load, improving equipment utilization rates, and enabling predictive maintenance strategies that prevent energy-wasting fault conditions.

On conveyor and material handling lines, the MVI46-GSC enables the SLC 500 to receive real-time load feedback from serial-connected VFDs and adjust belt speed dynamically based on upstream production demand. During low-throughput periods — shift changes, scheduled breaks, or upstream bottlenecks — the controller can automatically ramp down conveyor speeds to minimum required levels, reducing motor load proportionally to the cube of speed reduction. A 20% speed reduction translates to approximately 49% less energy consumed by the drive system.

In HVAC and compressed air systems, which typically account for 30–50% of a manufacturing facility’s total energy bill, the MVI46-GSC allows the SLC 500 to implement demand-controlled ventilation and pressure-optimized compressor staging. By reading actual pressure and flow data from serial field instruments and feeding this into the controller’s PID loops, the system maintains process conditions at the minimum energy-required setpoint rather than a fixed conservative value.

For predictive maintenance, the continuous serial data stream from VFDs and servo drives through the MVI46-GSC provides early warning indicators of developing mechanical faults — rising motor current trends, increasing drive output frequency for the same load, or abnormal torque signatures — that would otherwise go undetected until a costly unplanned shutdown occurs. Catching these conditions early reduces both maintenance costs and the unplanned downtime associated with degraded equipment operating below its efficiency curve.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including communication port verification, backplane interface testing, and protocol handshake validation. Stock is maintained for shipment arranged after confirmation, and all MVI46-GSC modules are covered by a warranty terms confirmed during quotation from the date of purchase — ensuring your production line stays operational and energy-efficient without supply chain uncertainty.
