Honeywell 8C-PDODA1 Spares: HC900 Output Evidence Before a Process Stop

Jul 22, 2026 5 min read Honeywell HC900

A digital output module can be a small part of a process controller and still carry a large operational consequence. On Honeywell HC900 systems, the output type, load, common wiring, rack position, diagnostics, firmware, and the valve, contactor, or alarm it drives determine whether a replacement is suitable. ZYPLC readers need to plan HC900 spares […]

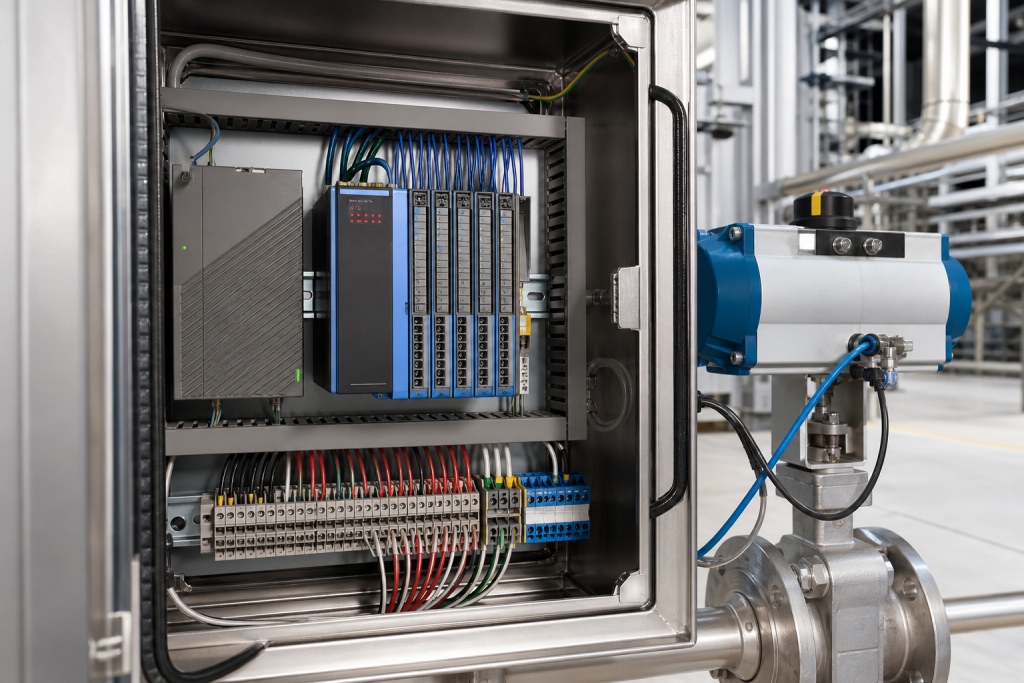

Honeywell 8C-PDODA1 HC900 digital output spare parts 2026

ZYPLC readers need to plan HC900 spares without confusing an output fault with a generic I/O failure. The product record should connect the module to the field load and to the acceptance test required after replacement.

Identify the output channel

Record HC900 rack, module position, channel type, load, voltage, current, common, fuse, field device, alarm or interlock role, firmware, and diagnostic behavior.

The live 8C-PDODA1 reference is a product match for an RFQ. Compare the installed label, terminal base, output rating, load, and rack record before approval.

Photograph module label, rack, terminal block, common wiring, fuses, field load, status LEDs, and cabinet context.

Do not swap input and output logic

An input module and an output module can share a family name while serving opposite signal directions. The failure symptom, PLC configuration, wiring, load, and safe state must be recorded before accepting a substitute.

The related 8C-PDILA1 input reference shows why a related HC900 module must remain separate from an output spare.

Ask for exact, repair, tested exchange, and substitute options separately, with actual-item photos, condition, terminal scope, test evidence, warranty, and lead time.

Acceptance should prove the field load

After replacement, verify rack recognition, channel state, output voltage or current, polarity, load response, alarm or interlock behavior, diagnostics, and the approved process test.

Mark the module exact, configuration pending, bench-tested, substitute, or engineering review required.

Save labels, terminal and load evidence, PLC configuration reference, measurements, and final acceptance record.

Build the RFQ around the installed function

A useful spare request starts with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop, trip, blind, or slow the process. Add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.

Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options can all be commercially useful, but they carry different approval burdens. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, a validation, or a production trial before it can be counted as recovery stock.

The live product references in this article are catalog matches, not permission to skip engineering checks. Compare every product page with the installed label and plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.

Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control, safety, motion, or protection function.

Review the spare before the maintenance window, not only after a failure. Confirm that the item is physically present, packaging and accessories are intact, the backup or test procedure is available, and the responsible engineer is still named. When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it.

The most useful quotation response mirrors the plant record. It should state the exact model, actual condition, test scope, included hardware, lead time, warranty, and any unresolved compatibility question. Avoid a quote that quietly combines an exact part, an exchange repair, and a possible substitute under one heading. Those options have different outage and approval consequences.

Maintenance teams should record the failure symptom and the point at which the system stopped being trusted. A communication loss, abnormal diagnostic, drifted measurement, failed safety channel, unstable speed, or network fault may identify a wider dependency than the failed-looking board. That context helps the supplier search the right family and helps engineering decide what must be tested after arrival.

Finally, define the acceptance owner before the part is ordered. Procurement can verify item identity and commercial terms; stores can verify packaging and label; maintenance can verify installation; and the responsible controls, safety, motion, or reliability engineer can approve functional recovery. A named owner prevents a technically plausible spare from remaining on the shelf without a usable restoration path.

This discipline also improves the next audit: the plant can show why the model was selected, which evidence was checked, what remained conditional, and how the installed function was accepted.

FAQ

What must match on an 8C-PDODA1 spare?

Match HC900 rack and slot, output type, rating, common wiring, terminal base, load, firmware, diagnostics, and field role.

Can an HC900 input module replace the output module?

No. Signal direction, wiring, configuration, and field function are different and require engineering review.

What should the RFQ include?

Send module and rack labels, terminal and load photos, channel role, condition, test scope, and deadline.

What proves the output is accepted?

Rack recognition, channel state, measured output, load response, alarms, diagnostics, and approved process test.

Send ZYPLC the HC900 module label, rack and terminal photos, field-load role, configuration status, and deadline. We can help identify the correct output spare before purchase.
