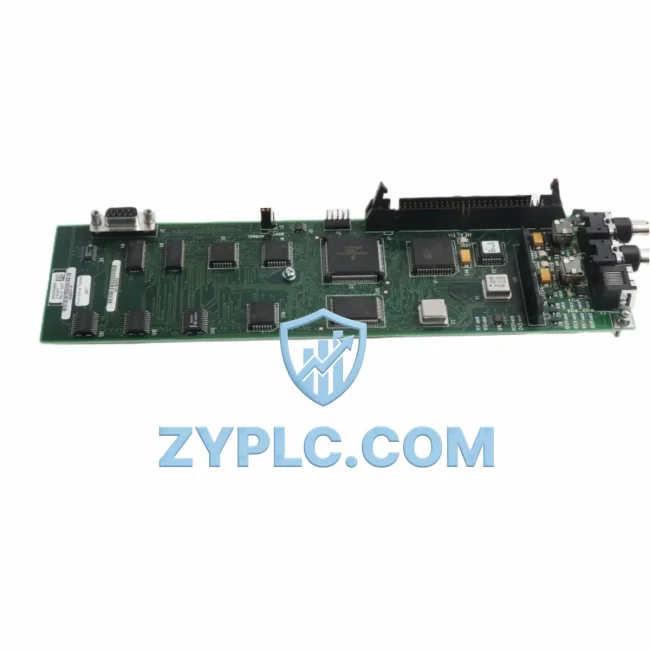

ABB 0-63007-M003742626 System-Ready PC Board for AC800M Architecture

ABB 0-63007-M003742626 System-Ready PC Board for AC800M Control System Architecture

The ABB 0-63007-M003742626 (803624-113) is a system-ready PC board module engineered for deployment within ABB’s AC800M distributed control system architecture. Rather than functioning as a standalone component, this board is designed to operate as an integral element of a layered automation hierarchy — contributing to control consistency, signal integrity, and long-term maintainability across the full system stack. Whether installed in a greenfield DCS project or used as a replacement module in an existing AC800M installation, this PC board supports the architectural coherence that modern industrial automation demands.

Architecture Specification Table

Coordinated Control System Design

The 0-63007-M003742626 PC board is most effectively understood within the context of the complete AC800M control system architecture. In a typical AC800M installation, the PM861, PM864, or PM866 controller modules serve as the central processing units, managing real-time execution of control logic and coordinating communication across all connected subsystems. This PC board supports the internal processing layer of such controllers, ensuring that signal routing, memory management, and bus communication remain stable under continuous industrial load.

At the I/O layer, the AC800M platform relies on S800 I/O modules — including AI810, AO810, DI810, and DO810 — to interface with field instruments, actuators, and sensors. These modules communicate with the controller via the ModuleBus or PROFIBUS DP, and the integrity of that communication depends on the health of the controller’s internal board components. A degraded or failed PC board can introduce latency, signal dropout, or complete controller failure, making timely replacement with a verified module like the 0-63007-M003742626 critical to system uptime.

At the network layer, the AC800M architecture typically incorporates CI854 or CI857 communication interface modules to support PROFIBUS DP, FOUNDATION Fieldbus, or Modbus TCP connectivity. These gateways bridge the controller to field devices and upstream SCADA or MES systems. The stability of the controller’s internal board directly affects the reliability of these communication paths, particularly in high-cycle polling environments such as power generation or petrochemical processing.

Power supply integrity is maintained through dedicated ABB SD821 or SD822 power supply modules, which deliver regulated DC voltage to the controller rack and I/O subsystems. The TB820 or TB840 termination boards and TP830 backplane modules provide the physical and electrical backbone for module interconnection. The 0-63007-M003742626 board interfaces with this backplane infrastructure, and its replacement or upgrade must be coordinated with the rack’s power budget and slot configuration to avoid disruption to adjacent modules.

At the human-machine interface layer, ABB Panel 800 or third-party SCADA terminals connected via OPC DA/UA provide operators with real-time visibility into process variables. The controller board’s role in maintaining deterministic scan cycles ensures that HMI data refresh rates remain consistent — a requirement in applications such as water treatment SCADA, substation automation, and pharmaceutical batch control. Redundancy configurations using paired PM864 or PM866 controllers with hot-standby switchover further depend on the functional integrity of each controller’s internal board assembly.

Application in Layered Automation Systems

The ABB 0-63007-M003742626 PC board finds application across a wide range of industrial sectors where the AC800M platform is the established control standard. In power generation and electrical substation automation, AC800M controllers manage protection relay coordination, transformer monitoring, and load dispatch — environments where controller board reliability is non-negotiable. A single board failure in a redundant pair can degrade the system’s failover capability, making verified spare inventory essential.

In oil and gas and petrochemical processing, AC800M systems are deployed for continuous process control of distillation columns, compressor trains, and heat exchanger networks. These applications demand 24/7 availability with minimal planned downtime. Maintaining a stock of tested replacement boards such as the 0-63007-M003742626 allows maintenance teams to execute hot-swap replacements during scheduled turnarounds without waiting for extended lead times from OEM channels.

Water and wastewater treatment facilities rely on AC800M controllers for pump sequencing, chemical dosing, and effluent monitoring. In these environments, the controller’s PC board must withstand high-humidity conditions and temperature cycling. The 0-63007-M003742626, sourced from verified inventory with a 12-Month Warranty, provides plant engineers with confidence in the module’s functional integrity prior to installation.

Mining and metallurgical operations — including conveyor control, crusher automation, and smelter process management — place extreme demands on control hardware. The AC800M’s modular architecture allows for zone-based control with independent controller nodes, each requiring reliable internal board components. Similarly, in packaging and material handling lines, where high-speed I/O scanning and motion coordination are required, the controller board’s performance directly affects throughput and reject rates.

Architecture Engineering FAQ

Q1: Is the ABB 0-63007-M003742626 compatible with all AC800M controller variants, and does it require firmware alignment before installation?
The 0-63007-M003742626 is an internal PC board designed for specific AC800M controller models. Compatibility depends on the exact controller variant (e.g., PM861, PM864, PM866) and hardware revision. Before installation, engineers should verify the board revision against the controller’s hardware documentation. Firmware alignment is typically managed at the controller level via Control Builder M, and the replacement board does not require independent firmware flashing in most configurations. Consult the AC800M Hardware Unit Installation and Replacement guide for revision-specific guidance.

Q2: Can this board be installed in a live AC800M system without a full controller shutdown, and what precautions are required?
Internal PC board replacement in AC800M controllers generally requires a controlled shutdown of the affected controller node. In redundant configurations (hot-standby), the standby controller can assume control while the primary is taken offline for board replacement, minimizing process disruption. Engineers should follow ABB’s ESD (electrostatic discharge) handling procedures, ensure the rack power supply is isolated before board removal, and document the slot configuration before disassembly. Post-installation, the controller should be powered up in diagnostic mode to verify board recognition before returning to normal operation.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for AC800M systems?
The 12-Month Warranty covers functional defects in the 0-63007-M003742626 PC board under normal operating and storage conditions. It does not cover damage resulting from incorrect installation, ESD mishandling, or operation outside specified environmental parameters. ZYPLC maintains verified inventory of AC800M spare parts to support long-term maintenance programs for plants operating beyond the OEM’s standard product lifecycle. For volume procurement, system integrators and plant maintenance teams are encouraged to contact ZYPLC directly to discuss consignment stock arrangements and lead-time guarantees.
