ABB 07BT62R1 Industrial Network Interface for AC500 Systems

ABB 07BT62R1 Industrial Network Interface for AC500 Systems: Backbone of Smart Factory Data Links

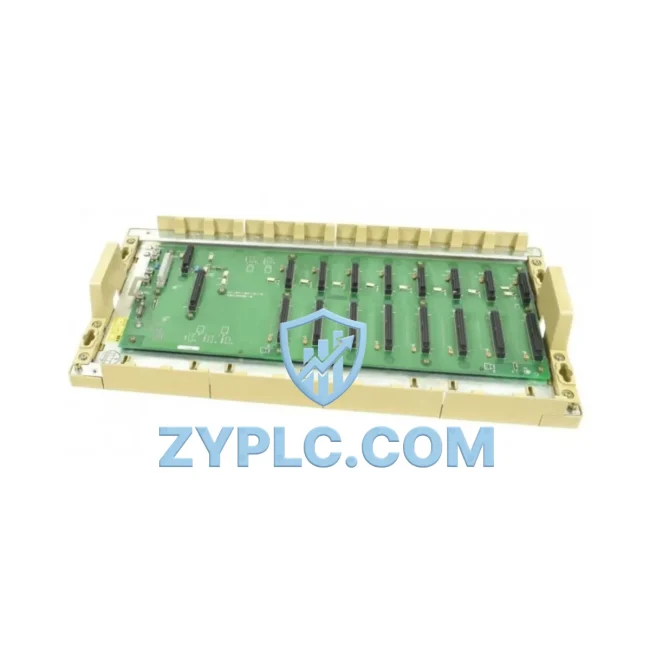

The ABB 07BT62R1 is an 8-slot modular I/O rack engineered for the AC500 automation platform, serving as a critical industrial network interface that bridges field-level devices with upper-layer control and monitoring systems. In modern smart factory environments, where data must flow seamlessly from sensors on the production floor to SCADA dashboards in the control room, the 07BT62R1 provides the structural and communicative foundation that makes real-time visibility possible. Whether deployed in discrete manufacturing, process automation, or infrastructure control, this I/O rack delivers the connectivity, protocol flexibility, and network stability that industrial engineers demand.

Designed and manufactured by ABB — a global leader in industrial automation — the 07BT62R1 integrates directly with the AC500 CPU modules, including the PM573, PM583, and PM595 series, enabling engineers to build scalable, distributed control architectures without compromising on communication performance. Its modular slot design accommodates a wide range of digital and analog I/O modules, communication processors, and specialty function modules, making it adaptable to virtually any industrial topology.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB 07BT62R1 sits at the heart of the control cabinet, hosting the AC500 CPU alongside a combination of digital input modules (DI581-S), analog output modules (AO523), and communication processors such as the CI590-CS31-HA for CS31 bus expansion or the CI501-PNIO for PROFINET integration. This configuration allows the rack to simultaneously manage local I/O signals — temperature readings from PT100 sensors, pressure feedback from 4–20 mA transmitters — while maintaining high-speed Ethernet communication with upstream systems.

Field-level data originates at sensors and actuators connected through distributed remote I/O stations, such as the ABB TU515 terminal units or third-party Modbus RTU slave devices wired via RS-485. The 07BT62R1 rack, through its hosted communication module, polls these remote nodes cyclically, aggregating process values and forwarding them over EtherNet/IP or Modbus TCP to the plant’s SCADA server — typically running ABB’s System 800xA or a third-party platform such as Wonderware or Ignition. This data path ensures that operators at the HMI workstation, whether using an ABB CP635 panel or a PC-based SCADA client, receive real-time process data with minimal latency.

For drive integration, the 07BT62R1-hosted AC500 CPU communicates with ABB ACS880 variable frequency drives via PROFIBUS DP or EtherNet/IP, enabling closed-loop speed control and energy monitoring without additional gateway hardware. Similarly, safety-rated I/O modules installed in the rack’s slots interface with safety PLCs and emergency stop circuits, ensuring that the data flow includes not just process values but also safety-critical status signals. Edge gateway devices — such as the ABB Edge Controller AC500-eCo — can further extend this architecture by pushing aggregated data to cloud analytics platforms, completing the loop from field sensor to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy equipment running proprietary protocols alongside modern Ethernet-based systems. A production line may include older PROFIBUS DP slaves, Modbus RTU instruments, and new EtherNet/IP devices — all of which need to share data with a central SCADA system. Without a capable network interface rack, each of these device groups operates as a data island, invisible to the others and to management systems.

The ABB 07BT62R1 addresses this directly. By hosting multiple communication processor modules within its 8 slots, the rack can simultaneously maintain PROFIBUS DP master communication with legacy field devices, Modbus TCP/IP polling of remote sensors, and EtherNet/IP connections to upstream controllers — all managed by the AC500 CPU’s unified programming environment in ABB Automation Builder. This eliminates the need for standalone protocol converters and reduces wiring complexity, cabinet footprint, and potential failure points.

Remote diagnostics are equally important in distributed plant environments. The AC500 platform, through the 07BT62R1 rack, supports remote access via standard Ethernet, allowing maintenance engineers to connect through a VPN to the CPU’s programming interface, inspect I/O module status, read diagnostic buffers, and even perform online program changes — without dispatching a technician to the field. Alarm conditions detected at the I/O level are propagated through the data chain to the SCADA alarm management system in real time, enabling rapid response and reducing mean time to repair (MTTR).

For production line transparency, the rack’s cyclic data exchange ensures that every I/O point — from a simple digital input confirming a valve position to a complex analog signal representing a flow rate — is available to the SCADA historian at configurable scan rates. This data density supports OEE (Overall Equipment Effectiveness) calculations, predictive maintenance algorithms, and energy management reporting, all of which are foundational to Industry 4.0 initiatives. System expansion is straightforward: additional 07BT62R1 racks can be added as remote I/O stations via CS31 or PROFIBUS, scaling the I/O count without architectural redesign.

Every unit shipped by ZYPLC undergoes pre-shipment functional testing, verifying backplane communication integrity, slot recognition, and power distribution before dispatch. Stock is maintained for rapid fulfillment, and all units are covered by a 12-month warranty against manufacturing defects.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 07BT62R1 support, and is it compatible with existing PROFIBUS networks?
The 07BT62R1 rack itself is a passive backplane structure; protocol support is determined by the communication processor modules installed in its slots. With modules such as the CI541-DP (PROFIBUS DP master/slave) or CI590-CS31-HA (CS31 bus), the rack supports PROFIBUS DP, Modbus RTU/TCP, EtherNet/IP, CANopen, and CS31 — making it fully compatible with existing PROFIBUS networks and enabling seamless integration with mixed-protocol environments.

Q2: How does the 07BT62R1 ensure network stability in high-noise industrial environments?
The AC500 platform is designed to IEC 61131-3 standards with robust EMC shielding and surge protection on all I/O modules. The rack’s backplane uses differential signaling for internal data exchange, minimizing susceptibility to electrical noise from variable frequency drives, welding equipment, and other high-interference sources common in industrial sites. Redundant power supply options further enhance uptime.

Q3: Can the 07BT62R1 be expanded to support more I/O points as the system grows?
Yes. The AC500 architecture supports both local expansion (additional racks connected via the CS31 bus) and remote I/O expansion (distributed racks connected via PROFIBUS DP or EtherNet/IP). A single AC500 CPU can manage hundreds of I/O points across multiple 07BT62R1 racks, making it straightforward to scale the system as production lines expand or new equipment is added.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
The 12-month warranty covers all manufacturing defects in the 07BT62R1 rack, including backplane bus failures, mechanical defects, and power distribution issues. Prior to shipment, ZYPLC performs functional verification of slot communication, power rail integrity, and module recognition. Units that fail any test parameter are quarantined and not dispatched. Replacement or repair is provided at no charge for warranty claims within the coverage period.
