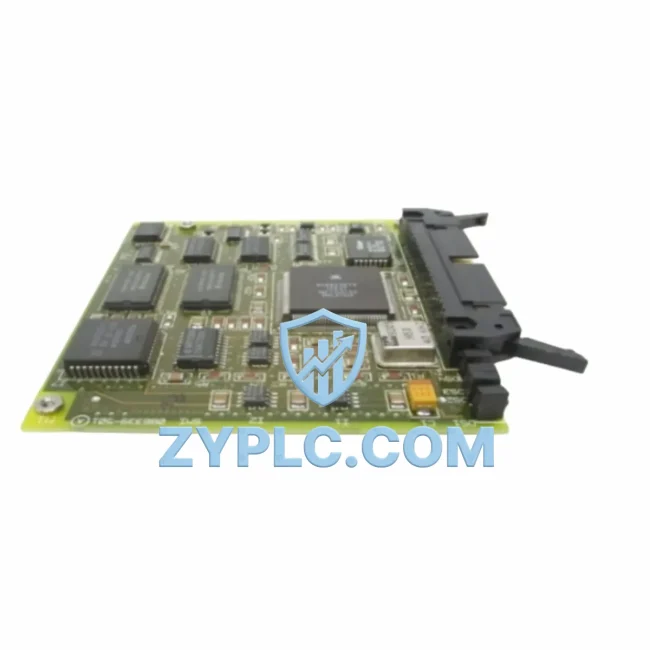

ABB 086339-001 Energy-Saving Control Board for DSQC Automation

ABB 086339-001 Energy-Saving Control Board for Optimized DSQC Automation

In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, the ABB 086339-001 DSQC control board delivers precision energy management at the heart of your automation architecture. Designed for ABB’s DSQC robot controller series, this control board governs the coordination between power distribution, motion execution, and system feedback — enabling factories to reduce idle energy consumption, sharpen cycle times, and extend the operational lifespan of connected drive systems.

The 086339-001 is not simply a replacement board; it is a functional intelligence layer that bridges the gap between high-level PLC commands and low-level actuator response. When integrated into an ABB IRC5 robot controller cabinet, it works in concert with the DSQC 661 axis computer and DSQC 662 fieldbus adapter to ensure that every servo movement is executed with minimal energy overshoot. The result is a tighter motion profile, reduced heat generation in the drive chain, and measurable improvements in energy efficiency across multi-axis robotic cells.

From the moment a production order is triggered — whether from a Siemens S7-1500 PLC, a Rockwell ControlLogix controller, or an ABB AC500 automation platform — the 086339-001 processes the incoming command signals and distributes them to the appropriate drive channels. This coordination eliminates redundant signal processing delays that would otherwise cause unnecessary motor energization, a common source of wasted power in high-cycle applications such as automotive welding, palletizing, and precision assembly.

Efficiency Performance Table

Energy-Aware Automation Architecture

The efficiency gains delivered by the ABB 086339-001 become most apparent when examined within the full automation data flow of a smart factory cell. Consider a robotic arc welding station: the welding sequence is initiated by an ABB AC500 PLC, which sends motion parameters via DeviceNet or PROFIBUS-DP to the IRC5 controller cabinet. Inside the cabinet, the 086339-001 control board receives these parameters and coordinates with the DSQC 661 axis computer to calculate the optimal torque and velocity profile for each of the six robot axes.

The axis computer then communicates with the ABB MicroFlex e190 servo drive units, which regulate current delivery to the servo motors. Because the 086339-001 ensures that command signals are clean and precisely timed, the servo drives do not need to compensate for signal jitter — a common cause of excess current draw. This precision cascades through the entire drive chain, reducing the thermal load on the ABB ACS880 variable frequency drive units that power auxiliary conveyor and positioning systems within the same cell.

Simultaneously, energy consumption data is collected by an ABB B23 energy meter installed at the cell’s power distribution panel. This data is fed back to the SCADA layer — typically running on a Wonderware System Platform or Ignition SCADA — where production engineers can monitor real-time kWh consumption per robot cycle. When the 086339-001 is functioning correctly, energy consumption per cycle remains consistent and predictable, making anomaly detection straightforward. Any deviation from the baseline immediately flags a potential mechanical issue — a worn bearing, a misaligned tool, or a failing servo — before it escalates into an unplanned shutdown.

At the field level, ABB JOKAB Safety I/O modules and DSQC 663 safety boards work alongside the 086339-001 to ensure that energy is cut cleanly and safely during emergency stops, without inducing voltage spikes that could damage downstream drive components. The ABB CP600 HMI panel mounted at the cell provides operators with a real-time view of robot status, cycle counts, and energy consumption trends, enabling informed decisions about shift scheduling and preventive maintenance intervals.

Power Optimization in Real Production Lines

One of the most significant sources of energy waste in robotic production lines is the mismatch between programmed motion paths and actual mechanical execution. When a control board degrades — exhibiting signal drift, intermittent communication faults, or delayed command processing — the robot controller compensates by increasing motor torque, which directly increases energy consumption. Over a three-shift production day, this compensation can add 8–15% to the cell’s total energy bill while simultaneously accelerating wear on the servo motors and gearboxes.

Replacing a degraded control board with a genuine ABB 086339-001 restores the original signal integrity, allowing the IRC5 controller to execute motion paths at their designed efficiency. In high-cycle applications such as automotive body welding or electronics assembly, where a single robot may complete 1,200–1,800 cycles per shift, even a 5% reduction in per-cycle energy consumption translates to substantial annual savings. Beyond direct energy costs, the restored signal precision reduces mechanical stress, extending the mean time between failures for servo motors, reducers, and cable harnesses.

The 086339-001 also supports the predictive maintenance strategies that are central to Industry 4.0 initiatives. By maintaining stable communication between the IRC5 controller and the SCADA monitoring layer, it ensures that condition data — vibration signatures, temperature trends, cycle time deviations — is transmitted accurately and without latency. Maintenance teams can use this data to schedule interventions during planned downtime windows rather than reacting to unexpected failures, reducing both maintenance labor costs and production losses.

Every ABB 086339-001 unit supplied by ZYPLC undergoes a comprehensive pre-shipment functional test that verifies signal output integrity, power rail stability, and communication port functionality. Units are shipped in anti-static packaging via DHL or FedEx with full tracking, and are covered by a 12-month warranty from the date of delivery. In-stock units are available for same-day or next-day dispatch, minimizing production downtime for customers requiring urgent replacements.

Energy Optimization FAQ

Q1: How does the ABB 086339-001 contribute to energy savings in a robotic cell?
The 086339-001 restores precise signal timing between the IRC5 controller and the axis drive system. When command signals are clean and accurately timed, servo drives operate at their designed efficiency without compensating for signal noise or jitter. This reduces unnecessary current draw, lowers heat generation in the drive chain, and results in measurable per-cycle energy savings — typically 5–15% compared to a cell running with a degraded control board.

Q2: Is the ABB 086339-001 compatible with my existing IRC5 controller and DSQC modules?
Yes. The 086339-001 is designed for ABB IRC5 robot controller cabinets and is compatible with the DSQC 661 axis computer, DSQC 662 fieldbus adapter, DSQC 663 safety board, and other standard DSQC series modules. It supports communication via DeviceNet, PROFIBUS-DP, and Ethernet-based protocols depending on the fieldbus adapter configuration. If you are unsure about compatibility with your specific controller revision, contact ZYPLC with your IRC5 serial number for confirmation.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 086339-001 unit is subjected to a full functional test prior to dispatch, including power rail verification, signal output integrity checks, and communication port validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. ZYPLC provides technical support throughout the warranty period to assist with installation and troubleshooting.

Q4: How quickly can I receive a replacement 086339-001, and what if I need technical guidance during installation?
In-stock units are available for same-day or next-day dispatch via DHL or FedEx with full international tracking. Delivery to most destinations in Asia, Europe, and North America takes 3–7 business days. ZYPLC’s technical team is available to provide installation guidance, wiring diagrams, and compatibility confirmation. Contact us at [email protected] or +86 19859288691 for pre-purchase consultation or post-delivery support.
