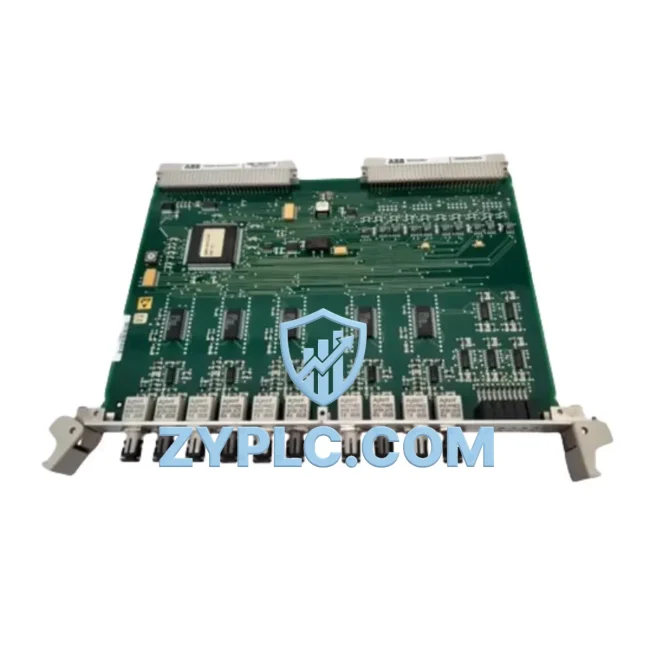

ABB 1HDF700003R5122 500CPU03 System-Ready Processor for AC500 Architecture

ABB 1HDF700003R5122 500CPU03 System-Ready Processor for AC500 Control Architecture

The ABB 1HDF700003R5122 500CPU03 is a high-performance CPU module engineered for deployment within the ABB AC500 programmable logic controller platform. Rather than functioning as a standalone device, this processor module is designed to serve as the computational core of a fully integrated control system architecture — coordinating signal acquisition, logic execution, communication management, and output actuation across multiple system layers. In modern industrial automation environments, the value of a CPU module is measured not only by its standalone processing capability, but by how effectively it enables system-wide coherence, scalability, and long-term maintainability. The 1HDF700003R5122 500CPU03 delivers on all of these dimensions.

Within a complete AC500-based control system, this processor module occupies the control layer — the architectural tier responsible for executing user programs, managing I/O data exchange, and maintaining communication with supervisory systems. It interfaces directly with the AC500 backplane, enabling seamless integration with expansion I/O modules such as the DC532 digital input module, the DA501 analog output module, and the DC505 digital output module. These I/O modules connect to the CPU via the internal S500 bus, ensuring deterministic data exchange with minimal latency — a critical requirement in process-critical applications such as power distribution, chemical dosing, and conveyor sequencing.

At the network layer, the 500CPU03 supports standard industrial communication protocols including PROFIBUS DP, Modbus TCP/IP, and CANopen, enabling it to act as a master controller within distributed automation topologies. When paired with communication interface modules such as the CI590-CS31-HA or the CI501-PNIO PROFINET adapter, the processor can extend its reach across plant-wide networks, integrating with remote I/O stations, variable frequency drives, and intelligent field devices without compromising scan cycle performance. This communication flexibility makes the 1HDF700003R5122 500CPU03 particularly well-suited for applications requiring multi-protocol coexistence — a common requirement in brownfield modernization projects.

Power integrity is a foundational concern in any control system design. The 500CPU03 operates within the AC500 rack alongside dedicated power supply modules such as the PS501-PROC-1 or PS560, which provide regulated 24 VDC to the CPU and connected I/O modules. Proper power architecture — including redundant power supply configurations where uptime requirements demand it — ensures that the processor module maintains continuous operation even during primary supply interruptions. Engineers specifying this module for critical infrastructure applications, such as water treatment SCADA systems or substation automation, should evaluate power redundancy as part of the overall system design.

At the human-machine interface layer, the 500CPU03 integrates natively with ABB CP600 series operator panels and third-party HMI platforms via Ethernet or serial communication links. This enables operators to monitor real-time process variables, acknowledge alarms, and adjust setpoints directly from the control room or field panel, without requiring additional protocol conversion hardware. The processor’s memory architecture supports structured data mapping that simplifies HMI tag configuration and reduces commissioning time on complex projects.

For applications requiring high availability, the AC500 platform supports CPU redundancy configurations in which a standby 500CPU03 module mirrors the active processor’s program state and I/O data in real time. Upon detection of a primary CPU fault, the standby module assumes control within milliseconds, ensuring process continuity in applications where unplanned downtime carries significant operational or safety consequences. This redundancy capability, combined with the module’s hot-swap support on compatible rack configurations, makes the 1HDF700003R5122 500CPU03 a preferred choice for engineers designing fault-tolerant automation systems in the oil and gas, mining, and metallurgical sectors.

From a maintenance and lifecycle perspective, the 500CPU03 benefits from ABB’s standardized firmware update process and broad compatibility with the Automation Builder engineering software environment. Technicians can perform online program modifications, force I/O states for diagnostic purposes, and export diagnostic logs without interrupting production — capabilities that significantly reduce mean time to repair (MTTR) in the event of a process anomaly. The module’s robust industrial-grade construction, rated for operation across a wide temperature range and high-vibration environments, further supports long-term deployment in demanding field conditions.

ZYPLC maintains verified inventory of the ABB 1HDF700003R5122 500CPU03 and supports customers with pre-shipment functional testing, system compatibility consultation, and a 12-Month Warranty covering manufacturing defects and operational failures under normal use conditions. Whether you are sourcing a replacement module for an existing AC500 installation or specifying components for a new system build, our technical team can assist with bill-of-materials validation and lead time coordination.

Architecture Specification Table

Coordinated Control System Design

The 1HDF700003R5122 500CPU03 achieves its full operational potential when integrated within a coordinated AC500 system architecture. At the I/O layer, the processor communicates with digital and analog expansion modules — including the DC532 24-channel digital input module, the DA501 2-channel analog output module, and the DC505 16-channel digital output module — via the high-speed S500 internal bus. These modules mount directly onto the AC500 backplane alongside the CPU, forming a compact and electrically coherent control node.

For distributed I/O applications, the 500CPU03 can be paired with the CI590-CS31-HA remote I/O coupler, extending the control system’s reach to field-mounted terminal modules and sensor clusters located up to several hundred meters from the main control cabinet. In PROFINET-based architectures, the CI501-PNIO adapter enables the processor to act as a PROFINET controller, managing communication with intelligent field devices, remote I/O stations, and variable frequency drives from a single engineering environment.

At the power layer, the PS501-PROC-1 or PS560 power supply modules provide stable 24 VDC to the CPU and I/O bus, with optional redundant power configurations available for high-availability installations. Terminal modules such as the TU515 or TU516 provide the physical wiring interface between field cables and I/O modules, simplifying cabinet wiring and enabling module replacement without rewiring. At the HMI layer, the ABB CP635 or CP651 operator panels connect to the 500CPU03 via Ethernet, providing real-time process visualization and operator control capabilities. For drive integration, the processor communicates with ABB ACS880 or ACS580 variable frequency drives via PROFIBUS or Modbus, enabling coordinated motor control within the broader automation architecture.

Application in Layered Automation Systems

The ABB 1HDF700003R5122 500CPU03 is deployed across a broad range of industrial sectors where reliable, scalable, and maintainable control architecture is a primary engineering requirement. In power generation and distribution applications, the processor serves as the primary controller for switchgear automation, transformer protection coordination, and substation bay control — environments where deterministic scan performance and robust communication redundancy are non-negotiable. Its support for IEC 61131-3 programming languages enables engineers to implement complex protection logic and interlocking sequences within a standardized development framework.

In water and wastewater treatment facilities, the 500CPU03 manages pump sequencing, chemical dosing control, and SCADA integration across geographically distributed treatment stages. Its Modbus TCP/IP communication capability enables seamless data exchange with remote telemetry units and centralized SCADA servers, supporting regulatory compliance reporting and remote diagnostics. In the oil and gas sector, the processor is used in wellhead control panels, pipeline monitoring systems, and compressor station automation — applications where the module’s wide operating temperature range and vibration resistance are essential for reliable field performance.

Manufacturing and packaging applications benefit from the processor’s fast scan cycle and flexible I/O expansion capability, enabling precise coordination of conveyor systems, robotic work cells, and vision inspection stations. In metallurgical and mining operations, the 500CPU03 controls crushing and grinding circuits, ore transport systems, and ventilation management — environments characterized by high electrical noise, extreme temperatures, and demanding duty cycles that test the limits of industrial control hardware. Across all of these applications, the module’s compatibility with ABB’s Automation Builder engineering platform ensures that system integrators can maintain a consistent development and commissioning workflow regardless of application complexity.

Architecture Engineering FAQ

Q1: Is the ABB 1HDF700003R5122 500CPU03 compatible with existing AC500 V2 and V3 rack configurations?
The 500CPU03 is designed for the ABB AC500 platform and is compatible with standard AC500 backplane configurations. Compatibility with specific rack generations (V2 vs. V3) should be verified against ABB’s system compatibility matrix and the firmware version installed on the CPU. ZYPLC’s technical team can assist with compatibility verification prior to order placement, ensuring that the module integrates correctly with your existing hardware infrastructure.

Q2: Can this processor module be used in a CPU redundancy configuration, and what additional components are required?
Yes, the AC500 platform supports CPU redundancy configurations in which two 500CPU03 modules operate in active/standby mode, with real-time program state synchronization via a dedicated redundancy link. Implementing redundancy requires compatible rack hardware, a redundancy communication module, and appropriate configuration within the Automation Builder engineering environment. ZYPLC can supply matched pairs of verified 1HDF700003R5122 500CPU03 modules for redundancy builds, both covered under the 12-Month Warranty.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
ZYPLC’s 12-Month Warranty covers manufacturing defects and operational failures occurring under normal operating conditions within twelve months of the shipment date. All modules undergo pre-shipment functional testing to verify core operational parameters prior to dispatch. In the event of a warranty claim, customers should contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the observed fault. ZYPLC will coordinate return logistics and provide a replacement or repaired module within an agreed lead time.
